MHS TM 1300 FE510
Hydraulic Forestry Grapple
for Wood and Logs
MPN: TM 1300 FE510
€1,250.00
€1,024.59 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

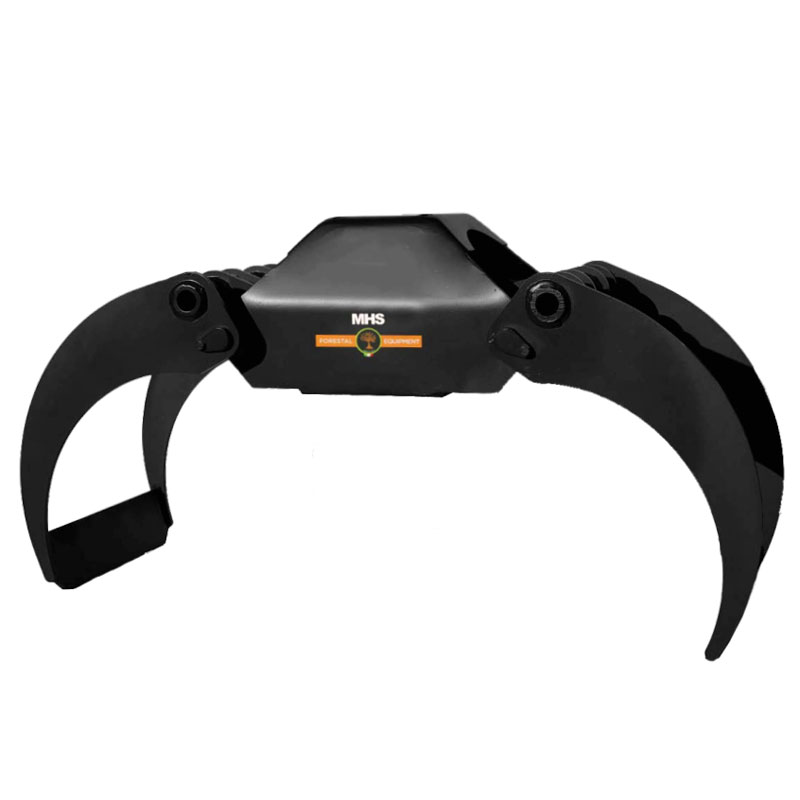

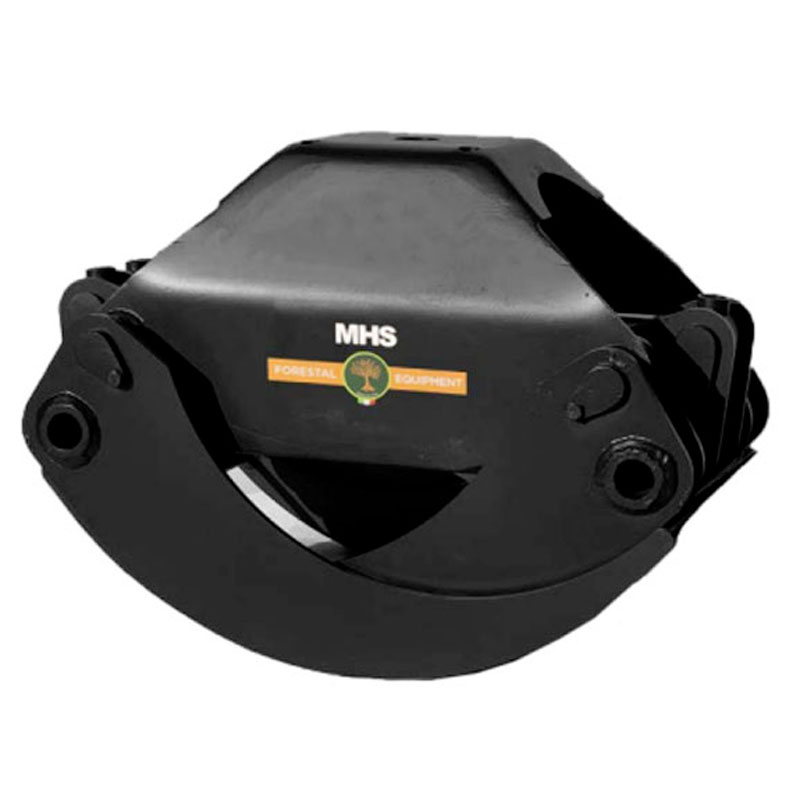

MHS TM 1300 FE510 - Agricultural Log and Wood Grapple with Horizontal Cylinder
The MHS TM 1300 FE510 log grapple is a high-quality tool designed for handling and loading timber. Its advanced hydraulic system provides a powerful and secure grip on logs and timber of various sizes , ensuring efficient and precise harvesting and transport.
The robust high-strength steel structure and rotation capacity allow it to tackle even the most difficult terrain, increasing productivity and safety.
This MHS hydraulic grab for forestry and agricultural operations is reliable, durable and optimizes work by reducing work times.
The MHS hydraulic clamp is designed and manufactured entirely in Italy , guaranteeing quality , innovation and reliability . 100% Made in Italy , this hydraulic clamp offers excellent performance , thanks to the combination of advanced technology and Italian craftsmanship .
Technical Specifications
Wood grab for agricultural and forestry use , with maximum capacity of 0.20 m³ and maximum load capacity of 1500 kg .
Designed to withstand maximum pressures of 200 bar , it offers optimum performance in heavy-duty working conditions .
Structure in FE510 , high-strength structural steel, guarantees solidity , durability and tensile strength .
Compatible with 2 to 3 Ton excavators .
Dimensions in millimeters
| Model | TO | B | C | D | AND | F | G |
| TM 1300 FE510 | 490 | 750 | 120 | 670 | 1350 | 580 | 440 |

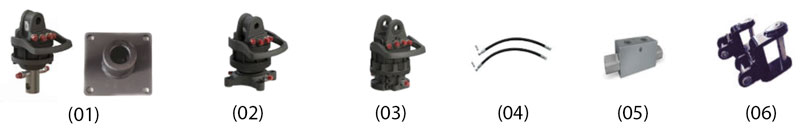

Compatibility
| Model | Rotor and Flange (01) | Rotor Flange 4 Holes (02) | Rotor Flange 6 Holes (03) | Pipe Kit (04) | Block Valve Kit (05) | MHS Link (06) |
| TM 1300 FE510 | GR30 + flange GR46 + flange | GR30PF GR465 GR463 | - | 300300140A | 300302581A | CDE - S terminal hole |
Compatibility table for maximum recommended load capacity
| Operating Machine Tonnage Range | Maximum Recommended Load Capacity of Clamp |
| 3 ÷ 4 tons | 2000 kg |
| 4 ÷ 5 tons | 2000 kg |
| 5 ÷ 6 tons | 2000 ÷ 3500 kg |
| 6 ÷ 8 tons | 3500 kg |
| 8 ÷ 10 tons | 3500 kg |
| 10 ÷ 12 tons | 4000 ÷ 5000 kg |
| 12 ÷ 14 tons | 5000 kg |
| 14 ÷ 16 tons | 5000 kg |
| 16 ÷ 18 tons | 5000 kg |
| 18 ÷ 20 tons | 5000 kg |
| 20 ÷ 24 tons | 5000 kg |
Characteristics
- Forestry grapple for logs and wood
- Horizontal cylinder
- Capacity 0.20 m³
- Capacity 1500 kg
- Max Bar 200
- For excavators 2.0÷3.0 Ton
- Made in Italy
Technical Data
| Model | TM 1300 FE510 |
| Max Capacity | 0.20 m³ |
| Max. capacity | 1500 kg |
| Bar Max | 200 bars |
| Material | FE510 steel |
| For Excavators | 2.0÷3.0 Tons |
| Closed Dimension | 49 x 75 x 44 cm |
| Open Dimension | 67 x 135 x 44 cm |
| Weight | 118 kg |
Technical Data
| Model | TM 1300 FE510 |
| Max Capacity | 0.20 m³ |
| Max. capacity | 1500 kg |
| Bar Max | 200 bars |
| Material | FE510 steel |
| For Excavators | 2.0÷3.0 Tons |
| Closed Dimension | 49 x 75 x 44 cm |
| Open Dimension | 67 x 135 x 44 cm |
| Weight | 118 kg |
