Baltrotors GR465
Rotator with 4 Hole Flange
45 kN for Forestry Grippers
MPN: GR465
Unlimited rotation
45kN - 20L/min
For Forestry Pliers
Warranty 2
years
Shipped on Pallet

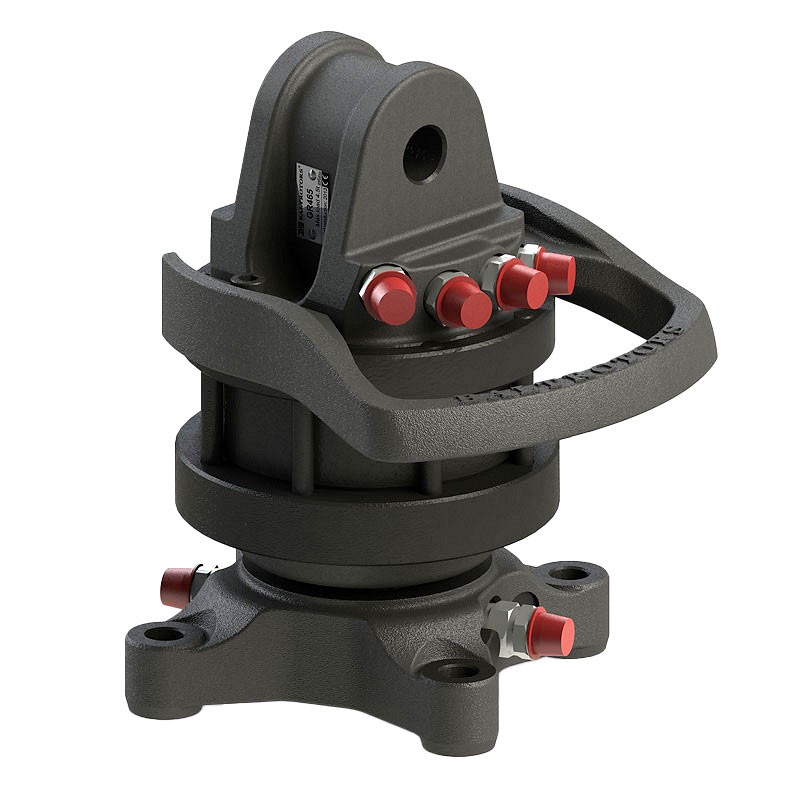

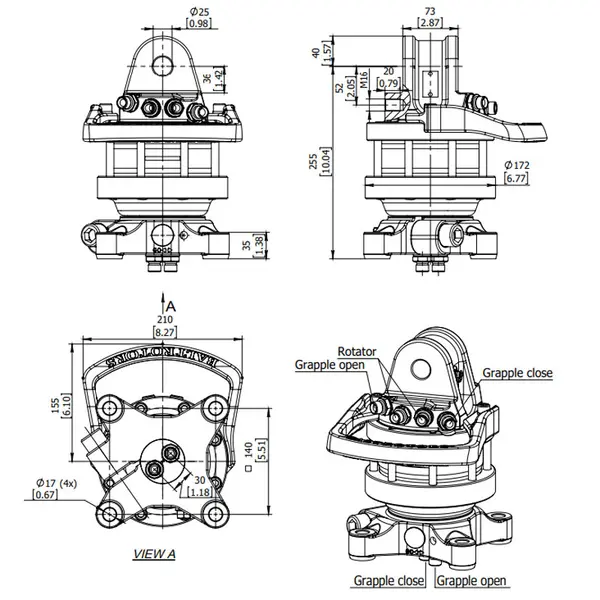

Baltrotors GR465 - 45 kN Rotator with 4 Hole Flange - for Forestry Clamps
Baltrotors GR465 is a lightweight mechanical rotator for agricultural or forestry equipment , suitable for simple and economical applications.
It has unlimited rotation , a capacity of 45 kN and an oil flow of 20 L/min .
With 4-hole rectangular flange lower connection .
Compatibility with MHS Pliers
- MHS TM 1300 FE510
- MHS TM 1500 FE510
- MHS TM 1300 IMEX 700 Reinforced Closed Forks
- MHS TM 1300 IMEX 700 Reinforced Open Forks
- MHS TM 1500 IMEX 700 Reinforced Closed Forks
- MHS TM 1500 IMEX 700 Reinforced Open Forks
Technical Data
| Rotation | Unlimited |
| Max Static Axial Load | 45 kN |
| Max Dynamic Axial Load | 25 kN |
| Couple | 1100 Nm |
| Recommended Oil Flow | 20 L/min |
| Upper Connection L | 73mm |
| Upper Connection D | Ø 25 mm |
| Dimensions | 21 x 25.5 x 17.2 cm |
| Weight | 29 kg |
