MHS TMR-HD 1800 + IT 800 MS
Pliers with 70 cm Chainsaw Kit
and Assembled Rotator
Capacity 0.40 m³
Capacity 4000 kg
For machines 10.0÷18.0 Ton
MHS TMR 1800 HD Reinforced + IT 800 MS - Pliers with 70 cm Chainsaw Kit and Rotator
For operating machines from 10 to 18 tons.

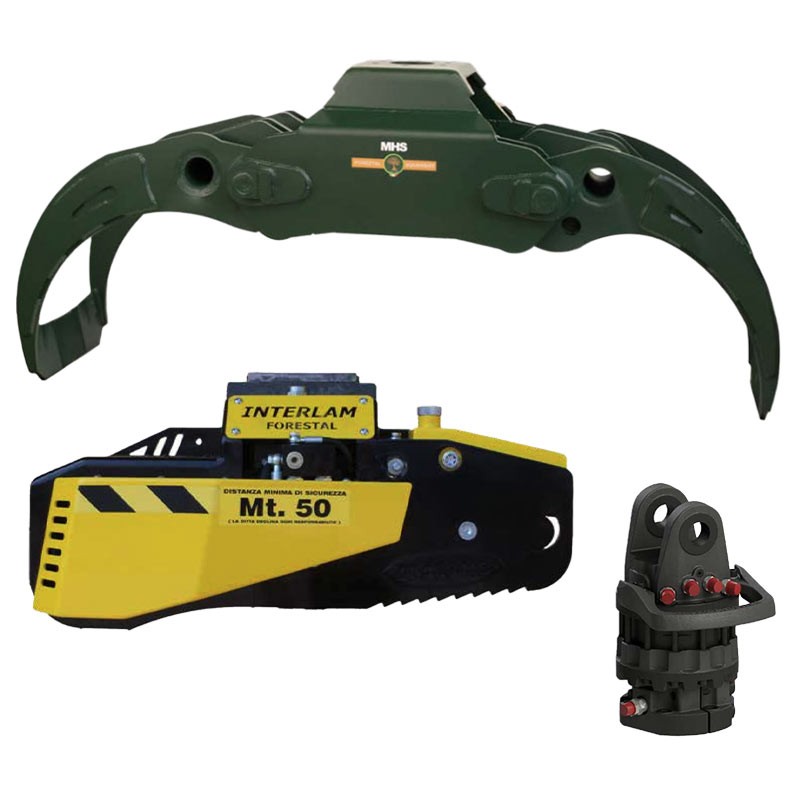

MHS Complete, pre-assembled forestry kit consisting of a TMR 1800 forestry grapple , an IT 800 MS hydraulic chainsaw , and a hydraulic rotator . Designed for professional felling, sectioning, and log handling, it is compatible with machines weighing 10 to 18 tons . Supplied with an integrated plate and hydraulic system, ready for assembly.

This MHS kit includes TMR 1800 HD caliper + IT 800 MS chainsaw + a GRS16S rotator.
The kit is already assembled and CE certified.
Technical specifications
The TMR HD 1800 closed-fork grapple is built for heavy-duty forestry applications, with a reinforced structure and wide opening. The IT800MS hydraulic chainsaw allows cuts up to Ø 700 mm , with automatic lubrication and rapid mechanical chain tensioner. The system requires a hydraulic flow rate of 100 to 160 L/min and a maximum pressure of 250 bar , compatible with standard auxiliary lines for compact operating machines from 6 to 12 tons.

TMR-HD 1800 S700 caliper
The MHS TMR 1800 HD reinforced grab for agricultural and forestry use has a maximum capacity of 0.40 m³ and a maximum load capacity of 4000 kg . It is designed for a maximum pressure of 200 bar , with an IMEX 700 structure, guaranteeing excellent performance and solidity even in harsh conditions.

| Model | TO | B | C | D | AND | F | G |
| TMR 1600 | 660 | 1020 | 100 | 840 | 1950 | 700 | 480 |
Measurements expressed in millimeters (mm).

IT 800 MS Chainsaw
The MHS IT 800 MS hydraulic chainsaw allows a maximum cutting diameter of Ø 700 mm and is designed for an operating pressure of up to 250 bar and an oil flow rate of 100 to 160 L/min . Equipped with automatic lubrication , a 1.5 L tank and a quick mechanical chain tensioner , it offers operational efficiency and simplified maintenance. The unit weighs 125 kg .


With GRS16S Rotator
- 6-way flanged connection
- 360° rotation / unlimited
- Dynamic capacity +16.00 / -9.00 kg
- Static capacity +8,000 / -4,500 kg
- Max pressure 250 bar
- Recommended oil flow rate 40 L/min
- Torque 3400 Nm
- Weight 71 kg
- Diameter Ø 45 mm
Compatibility
Suitable for machines from 10 to 18 tons with double-acting hydraulic circuit. The kit is supplied fully assembled and tested . Check before installation:
- Hydraulic system flow and pressure
- Machine lifting capacity
- Type of attachment and controls available for the rotator
Compatibility table for maximum recommended load capacity
| Operating Machine Tonnage Range | Maximum Recommended Load Capacity of Clamp |
| 3 ÷ 4 tons | 2000 kg |
| 4 ÷ 5 tons | 2000 kg |
| 5 ÷ 6 tons | 2000 ÷ 3500 kg |
| 6 ÷ 8 tons | 3500 kg |
| 8 ÷ 10 tons | 3500 kg |
| 10 ÷ 12 tons | 4000 ÷ 5000 kg |
| 12 ÷ 14 tons | 5000 kg |
| 14 ÷ 16 tons | 5000 kg |
| 16 ÷ 18 tons | 5000 kg |
| 18 ÷ 20 tons | 5000 kg |
| 20 ÷ 24 tons | 5000 kg |
Watch the video
Characteristics
- MHS TMR-HD 1800 closed fork gripper
- MHS IT 800 MS Chainsaw
- Max cutting diameter 700 mm
- Required oil flow rate from 100 to 160 L/min
- Max pressure 250 bar
- Chain oil tank 1.5 L
- Automatic chain lubrication
- Quick mechanical chain tensioner
- GRS16S Rotator
- Complete pre-assembled kit with plate and system included
- For operating machines from 10 to 18 tons
Technical Data
| TMR 1800 HD caliper | |
| Forks | Closed |
| Max Capacity | 0.40 m³ |
| Max. capacity | 4000 kg |
| Bar Max | 200 bars |
| Material | IMEX 700 steel |
| Operating Machine Mass | 10.0÷18.0 Ton |
| Closed Dimension | 66 x 102 x 48 cm |
| Open Dimension | 84 x 195 x 48 cm |
| Weight | 345 kg |
| IT 800 MS Chainsaw | |
| Max Cutting Diameter | Ø 70 cm |
| Hydraulic Flow | 100÷160 L/min |
| Oil Tank Capacity | 1.5 L |
| Bar Max | 250 bars |
| Chain Lubrication | Automatic |
| Mechanical Chain Tensioner | Quick |
| Weight | 125 kg |
| Pliers + Chainsaw + Rotator Kit | |
| Approximate Dimensions | 66 x 102 x 70 cm |
| Approximate weight with GRS16S | 541 kg |
