MHS TMR-HD 1400 + IT 450 CTH
Pliers with 45 cm Chainsaw Kit
and Assembled Rotator
Capacity 0.20 m³
Capacity 2000 kg
For 4.0÷7.0 Ton machines
€10,100.00
€8,278.69 tax excl.
Warranty 2 years
Shipped on Pallet
MHS TMR 1400 HD Reinforced + IT 450 CTH - Pliers with 45 cm Chainsaw Kit and Rotator
For operating machines from 4 to 7 tons.

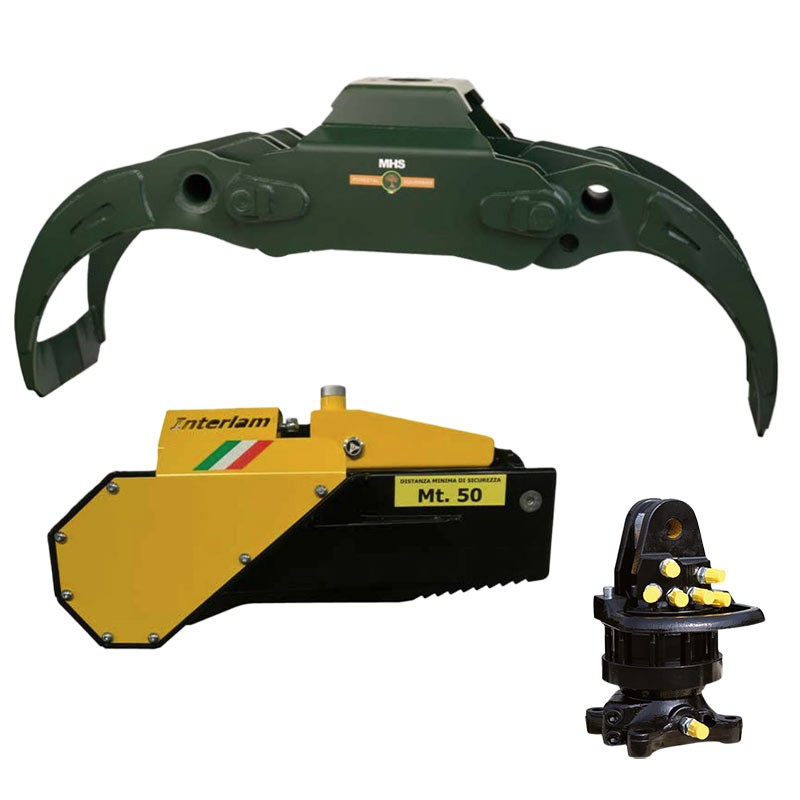

MHS Complete, pre-assembled forestry kit consisting of a TMR 1400 forestry grapple , an IT 450 CTH hydraulic chainsaw , and a hydraulic rotator . Designed for professional felling, sectioning, and log handling, it is compatible with machines weighing 4 to 7 tons . Supplied with an integrated plate and hydraulic system, ready for assembly.
This MHS kit includes TMR 1400 HD caliper + IT 450 CTH chainsaw + a rotator of your choice.
The kit is already assembled and CE certified.
Technical specifications
The TMR HD 1400 closed-fork grapple is built for heavy-duty forestry applications, with a reinforced structure and wide opening. The IT450CTH hydraulic chainsaw allows cuts up to Ø 450 mm , with automatic lubrication and quick mechanical chain tensioner. The system requires a hydraulic flow of 40 to 50 L/min and a maximum pressure of 250 bar , compatible with standard auxiliary lines for compact operating machines from 4 to 7 tons.
TMR-HD 1400 S700 caliper
The MHS TMR 1400 HD reinforced clamp for agricultural and forestry use has a maximum capacity of 0.20 m³ and a maximum load capacity of 2000 kg . It is designed for a maximum pressure of 200 bar , with an IMEX 700 structure, guaranteeing excellent performance and solidity even in harsh conditions.
| Model | TO | B | C | D | AND | F | G |
| TMR 1400 | 540 | 740 | 90 | 630 | 1435 | 540 | 370 |
Measurements expressed in millimeters (mm).
IT 450 CTH Chainsaw
The MHS IT 450 CTH hydraulic chainsaw allows a maximum cutting diameter of Ø 450 mm and is designed for an operating pressure of up to 250 bar and an oil flow rate of 40 to 50 L/min . Equipped with automatic lubrication , a 1.5 L tank and a quick mechanical chain tensioner , it offers operational efficiency and simplified maintenance. The unit weighs 70 kg .
Available variants
With Rotator FR50 F S6X
- 6-way flanged connection
- 360° rotation / unlimited
- Dynamic capacity 2,500 kg
- Static capacity 5,000 kg
- Max pressure 250 bar
- Recommended oil flow rate 20 L/min
- Torque 1100 Nm
- Weight 25 kg
- Diameter Ø 25 mm
With GRS10 Rotator
- 6-way flanged connection
- 360° rotation / unlimited
- Dynamic capacity +5,000 / -4,000 kg
- Static capacity +10,000 / -8,000 kg
- Max pressure 250 bar
- Recommended oil flow rate 25 L/min
- Torque 2500 Nm
- Weight 64 kg
- Diameter Ø 35 mm
With Rotator GV124
- 6-way flanged connection
- 360° rotation / unlimited
- Dynamic capacity 5,000 kg
- Static capacity 10,000 kg
- Max pressure 250 bar
- Recommended oil flow rate 25 L/min
- Torque 2200 Nm
- Weight 59 kg
- Diameter Ø 35 mm
Compatibility
Suitable for 4 to 7 ton operating machines with double-acting hydraulic circuit. The kit is supplied fully assembled and tested . Check before installation:
- Hydraulic system flow and pressure
- Machine lifting capacity
- Type of attachment and controls available for the rotator
Compatibility table for maximum recommended load capacity
| Operating Machine Tonnage Range | Maximum Recommended Clamp Load Capacity |
| 3 ÷ 4 tons | 2000 kg |
| 4 ÷ 5 tons | 2000 kg |
| 5 ÷ 6 tons | 2000 ÷ 3500 kg |
| 6 ÷ 8 tons | 3500 kg |
| 8 ÷ 10 tons | 3500 kg |
| 10 ÷ 12 tons | 4000 ÷ 5000 kg |
| 12 ÷ 14 tons | 5000 kg |
| 14 ÷ 16 tons | 5000 kg |
| 16 ÷ 18 tons | 5000 kg |
| 18 ÷ 20 tons | 5000 kg |
| 20 ÷ 24 tons | 5000 kg |
Watch the video
Characteristics
- MHS TMR-HD 1400 closed fork gripper
- MHS IT 450 CTH Chainsaw
- Max cutting diameter 450 mm
- Required oil flow rate 40 to 50 L/min
- Max pressure 250 bar
- Chain oil tank 1.5 L
- Automatic chain lubrication
- Quick mechanical chain tensioner
- FR50 F S6X / GRS10 / GV124 rotator
- Complete pre-assembled kit with plate and system included
- For operating machines from 4 to 7 tons
Technical Data
| TMR 1400 HD caliper | |
| Forks | Closed |
| Max Capacity | 0.20 m³ |
| Max. capacity | 2000 kg |
| Bar Max | 200 bars |
| Material | IMEX 700 steel |
| Operating Machine Mass | 4.0÷7.0 Ton |
| Closed Dimension | 54 x 74 x 37 cm |
| Open Dimension | 63 x 143.5 x 37 cm |
| Weight | 135 kg |
| IT 450 CTH Chainsaw | |
| Max Cutting Diameter | Ø 45 cm |
| Hydraulic Flow | 40÷50 L/min |
| Oil Tank Capacity | 1.5 L |
| Bar Max | 250 bars |
| Chain Lubrication | Automatic |
| Mechanical Chain Tensioner | Quick |
| Weight | 70 kg |
| Pliers + Chainsaw + Rotator Kit | |
| Approximate Dimensions | 55 x 75 x 60 cm |
| Approximate weight with FR50 | 230 kg |
| Approximate weight with GRS10 | 270 kg |
| Approximate weight with GV124 | 265 kg |
Technical Data
| TMR 1400 HD caliper | |
| Forks | Closed |
| Max Capacity | 0.20 m³ |
| Max. capacity | 2000 kg |
| Bar Max | 200 bars |
| Material | IMEX 700 steel |
| Operating Machine Mass | 4.0÷7.0 Ton |
| Closed Dimension | 54 x 74 x 37 cm |
| Open Dimension | 63 x 143.5 x 37 cm |
| Weight | 135 kg |
| IT 450 CTH Chainsaw | |
| Max Cutting Diameter | Ø 45 cm |
| Hydraulic Flow | 40÷50 L/min |
| Oil Tank Capacity | 1.5 L |
| Bar Max | 250 bars |
| Chain Lubrication | Automatic |
| Mechanical Chain Tensioner | Quick |
| Weight | 70 kg |
| Pliers + Chainsaw + Rotator Kit | |
| Approximate Dimensions | 55 x 75 x 60 cm |
| Approximate weight with FR50 | 230 kg |
| Approximate weight with GRS10 | 270 kg |
| Approximate weight with GV124 | 265 kg |
