Speroni CAM 302
Jet Self Priming Electric Pump
MPN: 101164300
230V - 3 HP
240 L/min - Head 55 m
Ø 1" 1/2 - 1" 1/4
€450.00
- 10%
€405.00
€331.97 tax excl.
Warranty 2
years
Shipped on Pallet

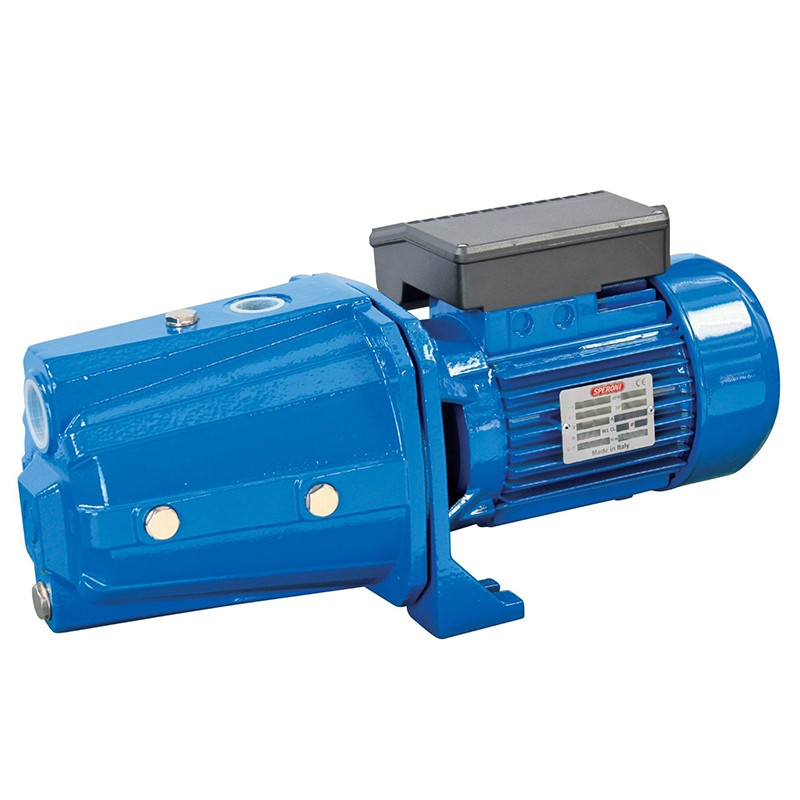

Speroni CAM 302 Self-priming electric pump Jet
Speroni CAM 302 is a self-priming pump with 2-pole single-phase induction electric motor . Being part of the Jet line, it is able to guarantee excellent hydraulic performance with high pressure capacity, vacuuming up to 8 meters deep .
This Jet Speroni CAM 302 electric pump is an ideal pump for use in domestic systems, in particular for lifting and distribution through small tanks or autoclaves. The electric pump produced by Speroni also works with water mixed with gas and is also available in a three-phase version.
Limits of use
- Liquid temperature: 35°C
- Ambient temperature: 40°C
- Suction height: 8 m
- Suction diameter 1" 1/2
- Delivery diameter 1" 1/4
Materials
- Pump course: Cast iron
- Engine mount: Cast iron
- Impeller: AISI 304 stainless steel
- Diffuser: Noryl
- Motor shaft: AISI 304 stainless steel
- Mechanical seals: Ceramic / Graphite / NBR
Motor
- Single-phase 230V
- 2-pole induction electric motor (n = 2850 min-1)
- Class F insulation
- IP44 protection
Technical data
| Code | CAM 302 |
| Power Supply | 230V |
| Nominal power | 2.2 kW |
| Absorbed power | 2.8 kW |
| Suction diameter | 1'' 1/2 |
| Delivery diameter | 1'' 1/4 |
| Prevalence | 55 m |
| Scope | 240 L/min |
| Max Temp. Liquid | 35°C |
| Max. Ambient Temp | 40°C |
| Insulation class | f |
| Degree of protection | IP44 |
| Pump body material | Cast iron |
| Dimensions | 52.5 x 22.5 x 23cm |
| Weight | 30 Kgs |
