Speroni RSM 40 RSM 50 RSM 60
Large Flow Centrifugal Electric Pump

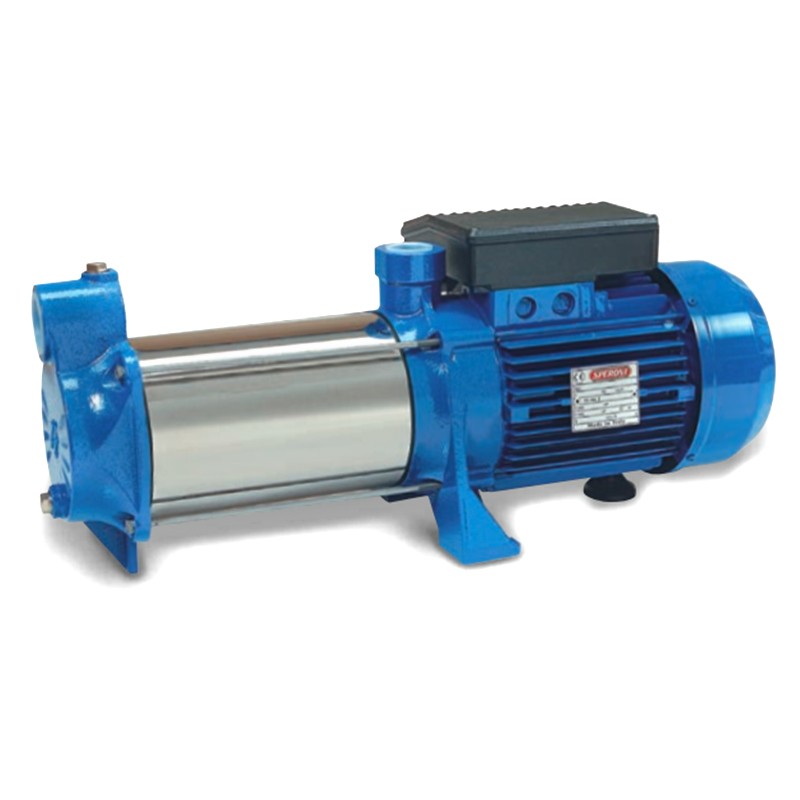

Speroni RSM 40 RSM 50 RSM 60 - Horizontal Axis Multi-Impulse Centrifugal Electric Pump

Speroni RSM electric pumps are multi-impeller centrifugal electric pumps featuring a horizontal axis . These pumps are capable of generating considerable pressure and, at the same time, a high water flow rate with low energy consumption. Thanks to their great silence and excellent hydraulic characteristics , they are widely used in domestic systems , for small sprinkler irrigation , vehicle washing and for the assembly of pressure groups such as pressure tanks .

Speroni RSM pumps can work with a liquid at a maximum temperature of 35°C , according to the EN 60335-2-41 standards for domestic use . However, they can also be used in other applications with a maximum liquid temperature of 35°C . The ambient temperature in which these pumps can operate is up to 40°C .

The maximum manometric suction lift of these pumps is 7 meters . This means they can draw water from a depth of up to 7 meters below the pump itself, offering greater flexibility in applications.

Speroni RSM electric pumps are single-phase, 230V versions. They are powered by a 2-pole induction motor with a rotation speed of 2850 rpm. It features Class F insulation for greater safety. Furthermore, the motor is protected by an IP 55 enclosure, making it resistant to dust and splashes of water .

Regarding the materials used in the construction of Speroni RSM pumps, the pump body and motor support are made of cast iron , ensuring strength and durability over time . The impeller and diffusers are made of Noryl , a high-performance plastic material . The pump jacket and motor shaft are made of AISI 304 stainless steel. The mechanical seals used are of the silicon/silicon/NBR type, which offer good sealing and resistance to chemical agents.

Available models

• Speroni RSM 40 - Single Phase
• Speroni RSM 50 - Single Phase
• Speroni RSM 60 - Single Phase

Limits of use

• Liquid temperature limit up to 35°C for domestic use (EN 60335-2-41)
• Liquid temperature limit up to 35°C for other uses
• Ambient temperature up to 40°C
• Monometric suction height up to 7 m
• Continuous service

Motor

• Single-phase 230 V
• 2-pole induction electric motor (2850 rpm)
• Class F insulation
• IP 55 protection

Materials

• Pump Course: Cast Iron
• Engine mount: Cast iron
• Impeller: Noryl
• Pump Jacket: AISI 304 Stainless Steel
• Crankshaft: AISI 304 stainless steel
• Mechanical seals: Silicon/Silicon/NBR

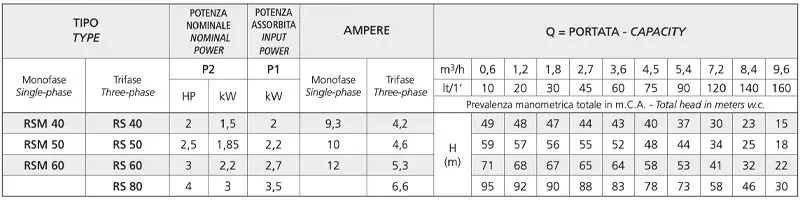

Hydraulic Curve

Product Dimensions
