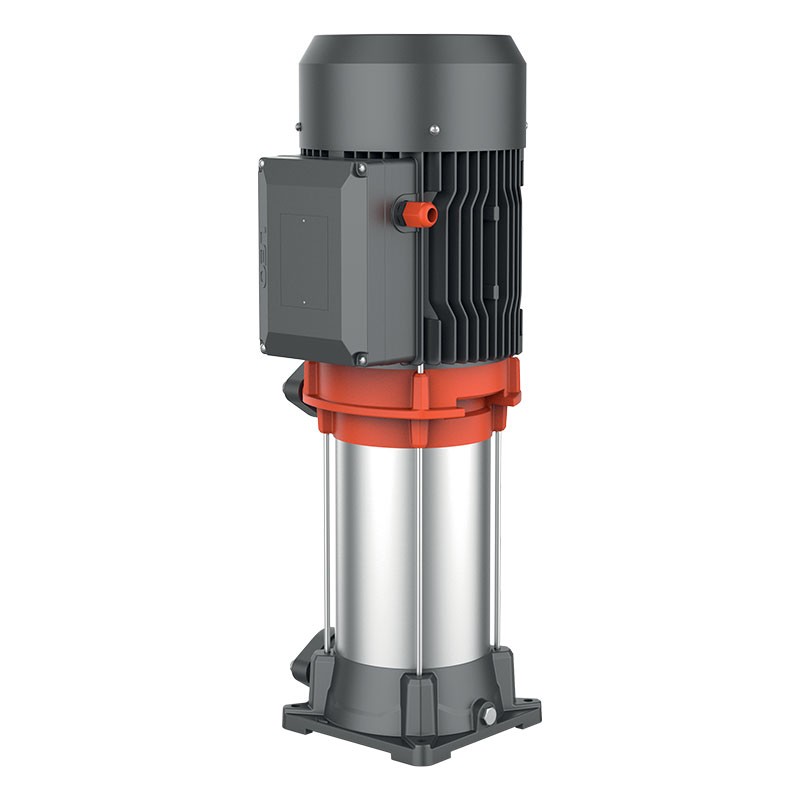

Leo EVPH
High Flow Multistage Vertical Pump

Leo EVPH - High Flow Multistage Vertical Pump

The Leo EVPH pump is a versatile solution for a wide range of water pressure boosting applications. With the ability to provide reliable pressure boosting, this pump is suitable for condominiums, communities, industrial sectors, agricultural irrigation and civil and industrial cooling systems. Leo EVPH pumps are designed with a vertical multi-stage configuration , allowing for increased flow rates and a variable range of pressure fields.

The orientation of the water intake and delivery can be easily adjusted to meet specific installation requirements. The pump is easy to install and maintain thanks to the advanced design of the hydraulic parts , which ensures stable operation and high efficiency. Special anti-rust treated cast iron is used for the water intake and delivery, ensuring a longer service life. In addition, the stainless steel welded shaft provides high operational reliability.

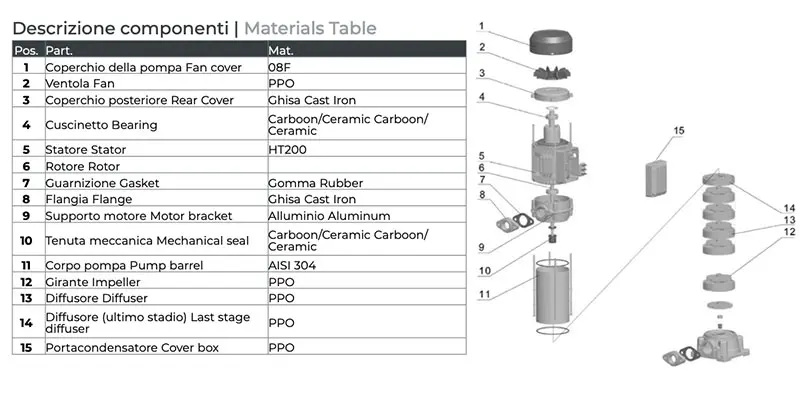

Pump Components

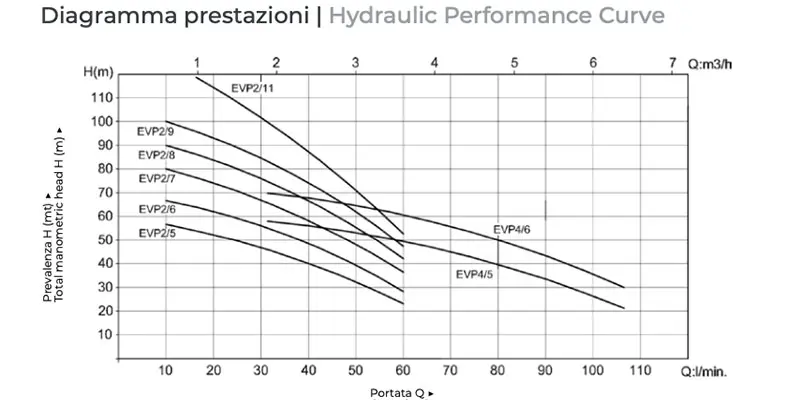

Operating curve

Application

• Water supply: pressure booster sets for condominiums and communities
• Industrial Pressure Increase: Water System, Cleaning System and Fire Fighting System
• Increased pressure for irrigation and agriculture
• Civil and industrial cooling systems

Pump

• Vertical multistage pumps
• Applicable for a wide range of uses, flow rates and pressure ranges
• The water intake and delivery can be rotated according to installation requirements.
• Easy installation and maintenance
• Advanced design of hydraulic parts ensures operation stability and high efficiency
• Suction and delivery in cast iron with special anti-rust treatment
• High reliability stainless steel welded shaft

Working conditions

• Liquid temperature: + 5 °C ~ 60 °C
• Maximum ambient temperature: + 40 °C
• Maximum pressure: 15 bar
• Altitude: up to 1000 m

Model Selection Instructions

Voltage and frequency:

• Single phase 220-240 / V / 50Hz;
• Three phase 380-415V / 50Hz

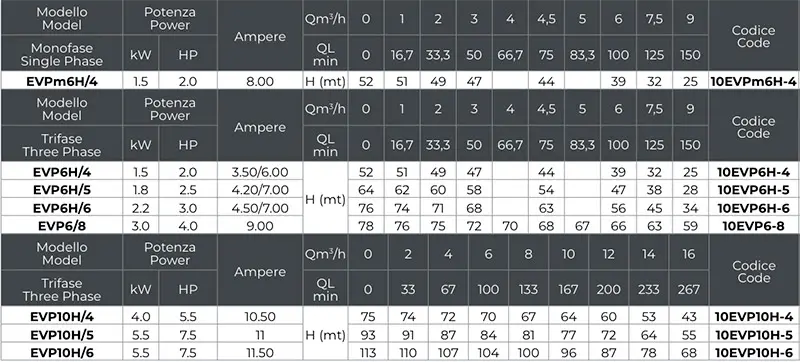

Technical data
