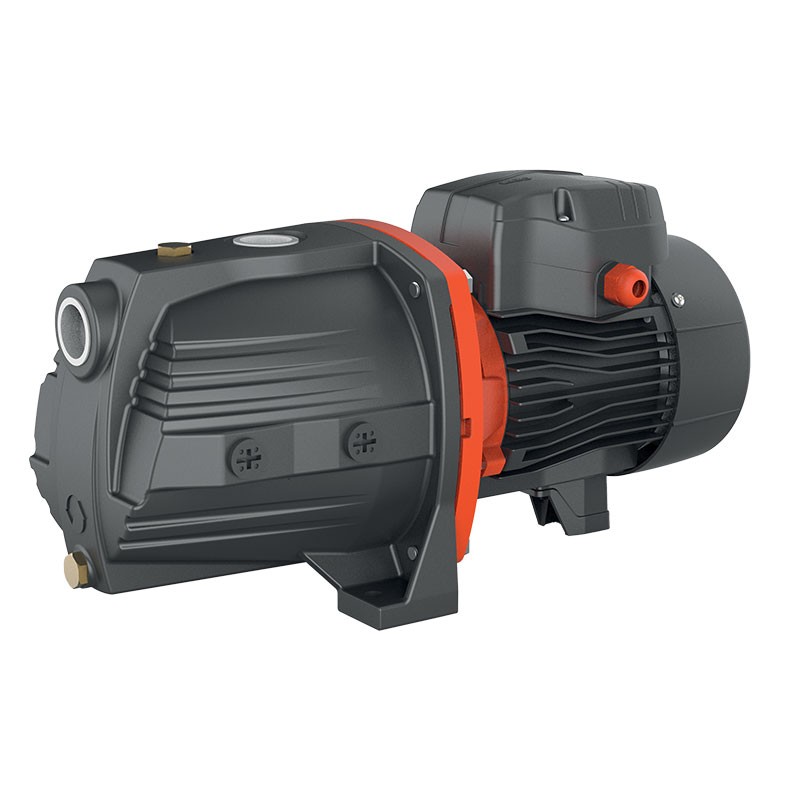

Leo AJM AJ
Jet Self-starting Electric Pumps

Leo AJM AJ - Self-priming electric pumps for vegetable garden and garden irrigation

The Leo AJM and Leo AJ series electric pumps are self-priming jet pumps used for pumping clean water or chemically non-aggressive liquids . They are particularly suitable for lifting water from the ground and for irrigating vegetable gardens and gardens.

The peculiarity of Jet pumps is the presence of the Venturi tube which, exploiting the homonymous effect, allows to increase the speed of the liquid.

These pumps have stainless steel impellers, as well as a cast iron pump body subjected to cataphoresis treatment which allows greater protection from rust . They have a copper winding motor with integrated thermal protection, can suck liquids with temperatures up to 40 °C and have a suction height of up to 9 meters .

Version with CAST IRON Body

AJm75H version with integrated non-return valve,

Pump

• Cast iron pump body, subjected to catagoresis treatment
• Stainless steel impeller
• AISI 304 shaft
• Max liquid temperature +40 °C
• Suction height up to 9 m

Motor

• Motor with copper winding
• Single-phase motor with thermal protection inserted in the winding
• Insulation class F
• IPX4 class protection
• Max ambient temperature +40°C

Operating curve
