Leo AJ Inox
Self-priming Stainless Steel Electric Pump Irrigation
230V - 0.6÷1.2 HP
0÷60 L/min - Prevalence 16÷48 m
Ø 1" - 1"
€119.00
€97.54 tax excl.
Leo AJ Inox - Self-priming electric pumps for vegetable garden and garden irrigation
The Leo AJ inox series electric pumps are self-priming jet pumps used for pumping clean water or chemically non-aggressive liquids . They are particularly suitable for lifting water from the ground and for irrigating vegetable gardens and gardens.
The peculiarity of Jet pumps is the presence of the Venturi tube which, exploiting the homonymous effect, allows to increase the speed of the liquid.
These pumps have stainless steel impellers, as well as a cast iron pump body subjected to cataphoresis treatment which allows greater protection from rust . They have a copper winding motor with integrated thermal protection, can suck liquids with temperatures up to 40 °C and have a suction height of up to 9 meters .
Version with Stainless Steel Body

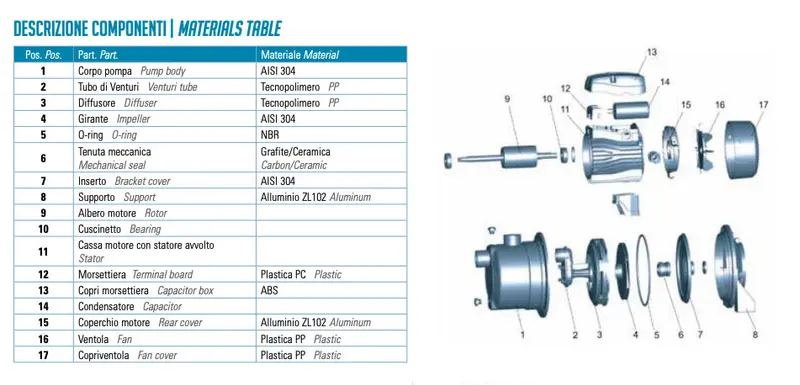

Pump
- Pump body: 304 stainless steel
- Impeller: 304 Stainless Steel
- AISI 304 shaft
- Max liquid temperature: +40°C
- Manometric suction height: 9 m
Motor
- Motor with copper winding
- Single-phase motor with thermal protection inserted in the winding
- Insulation class F
- Max ambient temperature: +40°C

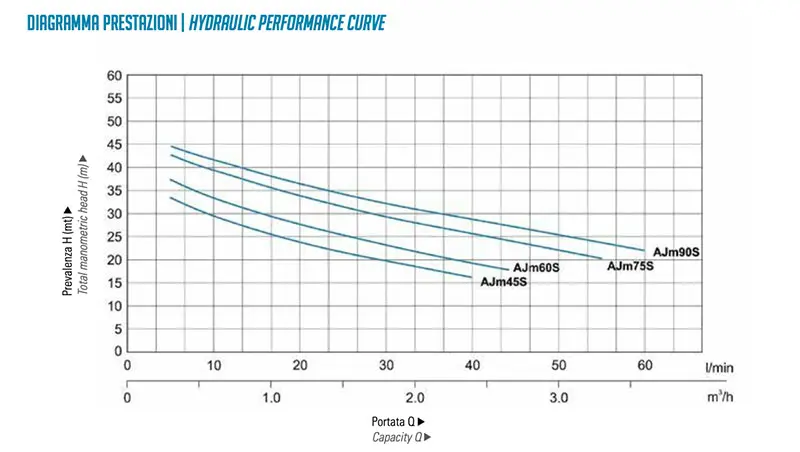

Operating curve

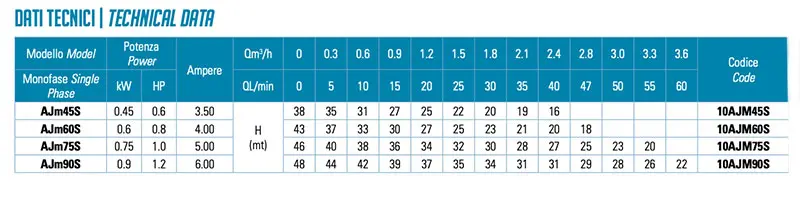

Technical Data
| Model | AJm45S | AJm60S | AJm75S | AJm90S |
| Code | 10AJM45S | 10AJM60S | 10AJM75S | 10AJM90S |
| Power | 0.45 kW | 0.6 kW | 0.75 kW | 0.9 kW |
| Horses | 0.6 HP | 0.8 HP | 1 HP | 1.2 HP |
| Pump Body Material | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
| Steel Impeller | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
| Suction Height | 9 m | 9 m | 9 m | 9 m |
| Prevalence | 16÷38 m | 18÷43 m | 20÷46 m | 22÷48 m |
| Flow rate | 0÷40 L/min | 0÷50 L/min | 0÷55 L/min | 0÷60 L/min |
| DN1 | 1'' | 1'' | 1'' | 1'' |
| DN2 | 1'' | 1'' | 1'' | 1'' |
| Insulation Class | F | F | F | F |
| Protection Class | IPX4 | IPX4 | IPX4 | IPX4 |
| Max Liquid Temperature | +40 °C | +40 °C | +40 °C | +40 °C |
| Max. Ambient Temperature | +40 °C | +40 °C | +40 °C | +40 °C |

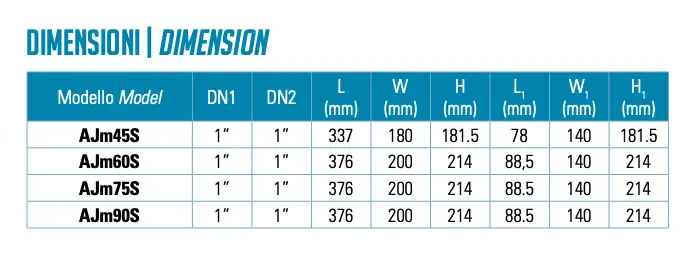

| Dimensions (LxHxW) | 33 x 18 x 18 cm | 37 x 21 x 20 cm | 37 x 21 x 20 cm | 37 x 21 x 20 cm |
| Dimensions with packaging | 35 x 18 x 22 cm | 42 x 22 x 25 cm | 42 x 22 x 25 cm | 42 x 22 x 25 cm |
| Weight with packaging | 6.9 kg | 9.2 kg | 10.1 kg | 10.7 kg |
Technical Data
| Model | AJm45S | AJm60S | AJm75S | AJm90S |
| Code | 10AJM45S | 10AJM60S | 10AJM75S | 10AJM90S |
| Power | 0.45 kW | 0.6 kW | 0.75 kW | 0.9 kW |
| Horses | 0.6 HP | 0.8 HP | 1 HP | 1.2 HP |
| Pump Body Material | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
| Steel Impeller | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
| Suction Height | 9 m | 9 m | 9 m | 9 m |
| Prevalence | 16÷38 m | 18÷43 m | 20÷46 m | 22÷48 m |
| Flow rate | 0÷40 L/min | 0÷50 L/min | 0÷55 L/min | 0÷60 L/min |
| DN1 | 1'' | 1'' | 1'' | 1'' |
| DN2 | 1'' | 1'' | 1'' | 1'' |
| Insulation Class | F | F | F | F |
| Protection Class | IPX4 | IPX4 | IPX4 | IPX4 |
| Max Liquid Temperature | +40 °C | +40 °C | +40 °C | +40 °C |
| Max. Ambient Temperature | +40 °C | +40 °C | +40 °C | +40 °C |
| Dimensions (LxHxW) | 33 x 18 x 18 cm | 37 x 21 x 20 cm | 37 x 21 x 20 cm | 37 x 21 x 20 cm |
| Dimensions with packaging | 35 x 18 x 22 cm | 42 x 22 x 25 cm | 42 x 22 x 25 cm | 42 x 22 x 25 cm |
| Weight with packaging | 6.9 kg | 9.2 kg | 10.1 kg | 10.7 kg |
