Speroni 2C 32/190 B
Twin-impeller centrifugal electric pump
MPN: 101080813
400V - 4HP
200 L/min - Head 74 m
Ø 1'' 1/2 - 1'' 1/4
€849.00
€695.90 tax excl.
Warranty 2 years
Shipped on Pallet

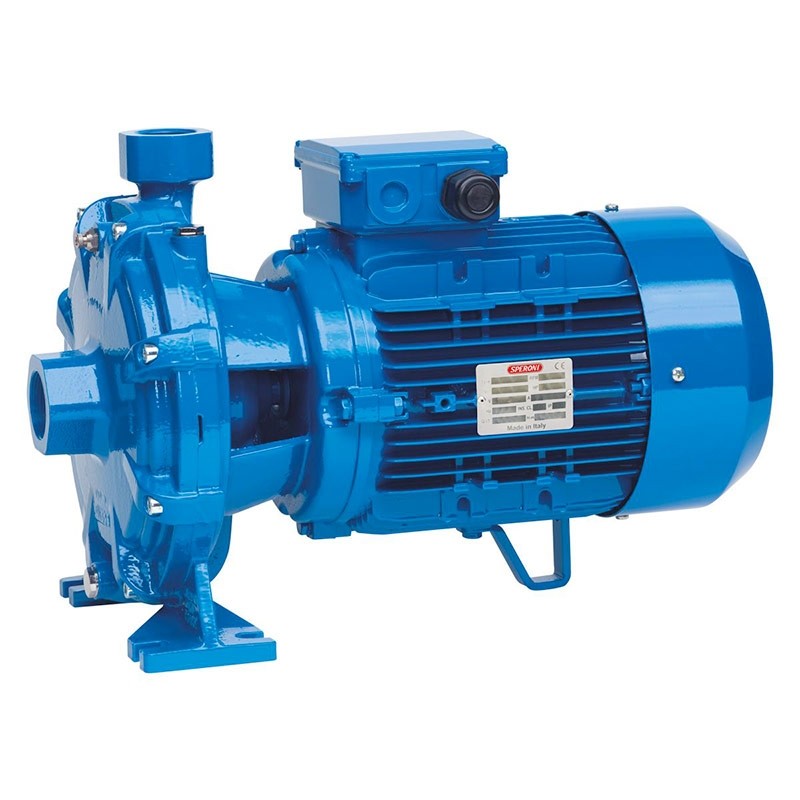

Speroni 2C 32/190 B - 400 V Centrifugal Electric Pump
The Speroni 2C 32/190B centrifugal and twin-impeller electric pump features two opposing impellers, allowing for much higher heads than single-impeller models. It is intended for lifting clean water or other liquids with moderate impurities that are not aggressive towards the pump's materials.
Suitable for civil and industrial systems, for water distribution via pressure pumps and for sprinkler irrigation in both agriculture and private gardens.

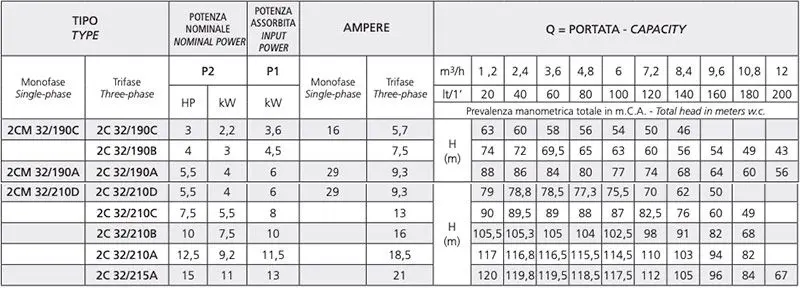

Download the Technical Data Sheet
Model available
- Speroni 2C 32/190 B - Three-phase
Limits of use
- Liquid temperature limit up to 35°C for domestic use (EN 60335-2-41)
- Liquid temperature limit up to 90°C for other uses
- Ambient temperature up to 40°C
- Monometric suction height up to 7 m
- Continuous service
Materials
- Pump Course: Cast Iron
- Engine mount: Cast iron
- Impellers: Brass
- Crankshaft: AISI 304 stainless steel
- Mechanical seals: Ceramic / Graphite / NBR
Engines
- Class F insulation
- IP 55 protection
- Three-phase
- 2-pole induction electric motor (n=2850 min-1)

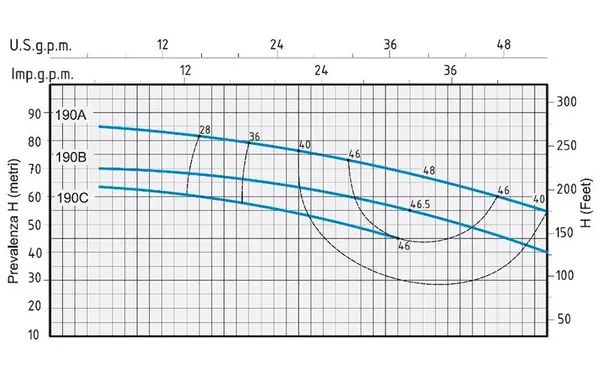

Hydraulic Curve Pumps with 1'' 1/2 Suction

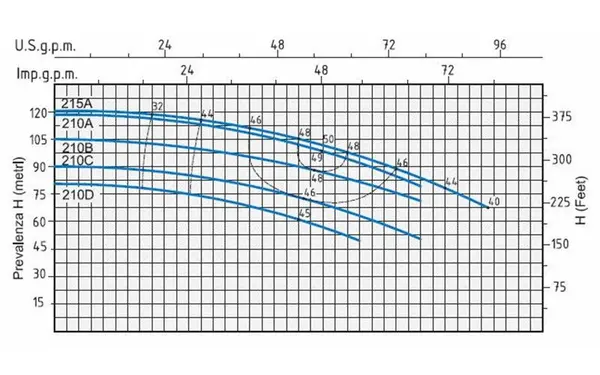

Hydraulic Curve Pumps with 2'' Suction
Details

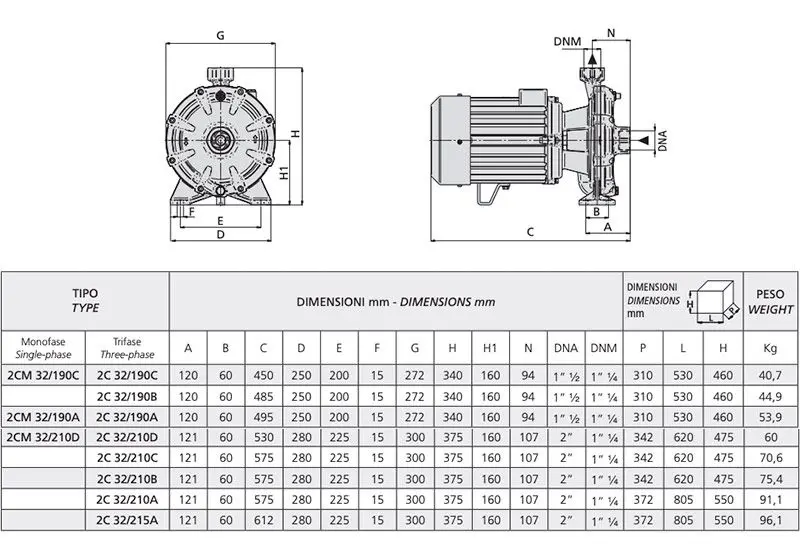

Product Dimensions
Technical Data
| C 32/190B | |
| Power Supply | 400V |
| Nominal Power | 4 HP - 3 kW |
| Suction Diameter | 1'' 1/2 |
| Delivery Diameter | 1'' 1/4 |
| Prevalence | from 43 to 74 m |
| Liquid Flow Rate | 200 L/min |
| Protection Class - Insulation | IP 55 - F |
| Dimensions | 48 x 34 x 27 cm |
| Weight | 45 kg |
Technical Data
| C 32/190B | |
| Power Supply | 400V |
| Nominal Power | 4 HP - 3 kW |
| Suction Diameter | 1'' 1/2 |
| Delivery Diameter | 1'' 1/4 |
| Prevalence | from 43 to 74 m |
| Liquid Flow Rate | 200 L/min |
| Protection Class - Insulation | IP 55 - F |
| Dimensions | 48 x 34 x 27 cm |
| Weight | 45 kg |
