Speroni 2CM / C 25/160 BA
Centrifugal Dirty Water Pump
€470.00
€385.25 tax excl.
| or in 3 rates from 156.67 € with |  | |
| or in 3 rates from 156.67 € with |  |
library_add
more options
230V/400V - 2.5 HP
160 L/min - Head 65 m
Ø 1'' - 1"
Warranty 2 years
14 days to change your mind
Shipped on Pallet

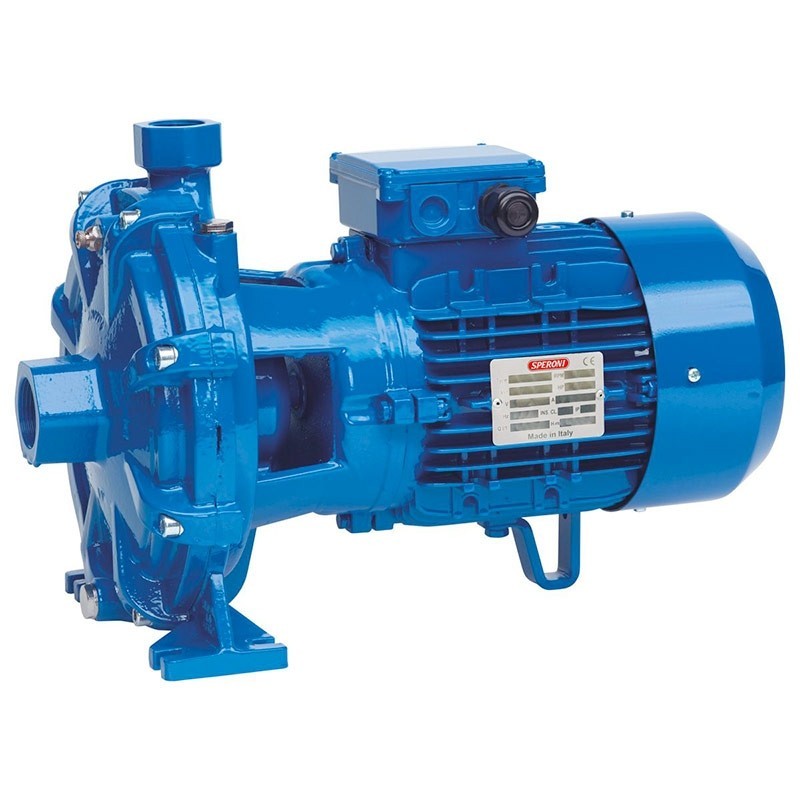

Speroni 2CM / C 25/160 BA - Twin Impeller Centrifugal Electric Pumps
The Speroni 2CM / C 25/160 BA range presents a series of Twin Impeller Centrifugal Electric Pumps designed for lifting clean water or other liquids moderately loaded with impurities but not aggressive towards the materials of which the pump is made.
These pumps can be single-phase or three-phase selectable from the drop-down menu above and are characterized by the use of two opposing impellers which allow much higher heads than single-impeller models.
The 2CM electric pumps are suitable for civil and industrial systems, for the distribution of water by means of an autoclave and for sprinkler irrigation both in agriculture and in private gardens.
Download the Technical Sheet
Available models selectable from the drop-down menu:
- Spurs 2CM 25/160 BA - Single phase
- Speroni 2C 25/160 BA - Three-phase
Limits of use
- Liquid temperature limit up to 35 ° C for domestic use (EN 60335-2-41)
- Liquid temperature limit up to 90 ° C for other uses
- Ambient temperature up to 40 ° C
- Monometric suction height up to 7 m
- Continuous service
Materials
- Pump course: Cast iron
- Motor support: Cast iron
- Impellers: Brass
- Motor shaft: AISI 304 stainless steel
- Mechanical seals: Ceramic / Graphite / NBR
Engines
- Class F insulation
- IP 55 protection
- Single phase 230V-50Hz ≤ 7.5 kW
- Three-phase 230 / 400V-50Hz> 7.5 kW
- 2-pole induction electric motor (n = 2850 min-1)
- Minimum efficiency index (BEP) MEI ≥ 0.4
Hydraulic curve
Model details available
Product Dimensions
Technical data
| 2CM 25/160 BA | 2C 25/160 BA | |
| Power Supply | Single phase | Three-phase |
| Nominal power | 2.5 HP - 1.85 kW | 2.5 HP - 1.85 kW |
| Suction diameter | 1 '' 1/4 | 1 '' 1/4 |
| Delivery diameter | 1 '' | 1 '' |
| Prevalence | from 33 to 61 m | from 33 to 61 m |
| Liquid flow rate | 160 L / min | 160 L / min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F |
| Max. Ambient Temp | 40 ° C | 40 ° C |
| Max Temp. Liquid | 90 ° C | 90 ° C |
| Pump Body Material | Cast iron | Cast iron |
| Dimensions | 43 x 29 x 24 cm | 43 x 29 x 24 cm |
| Weight | 30 kg | 30 kg |
Technical data
| 2CM 25/160 BA | 2C 25/160 BA | |
| Power Supply | Single phase | Three-phase |
| Nominal power | 2.5 HP - 1.85 kW | 2.5 HP - 1.85 kW |
| Suction diameter | 1 '' 1/4 | 1 '' 1/4 |
| Delivery diameter | 1 '' | 1 '' |
| Prevalence | from 33 to 61 m | from 33 to 61 m |
| Liquid flow rate | 160 L / min | 160 L / min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F |
| Max. Ambient Temp | 40 ° C | 40 ° C |
| Max Temp. Liquid | 90 ° C | 90 ° C |
| Pump Body Material | Cast iron | Cast iron |
| Dimensions | 43 x 29 x 24 cm | 43 x 29 x 24 cm |
| Weight | 30 kg | 30 kg |
