Speroni CAM 150 BR
Self-priming Electric Pump
MPN: 101162170
230V - 1.5 HP
80 L/min - Head 58 m
Ø 1'' 1/2 - 1''
€395.00
€323.77 tax excl.
Warranty 2
years
Shipped on Pallet
Speroni CAM 150 BR - Twin Impeller Self-Priming Electric Pump
The Speroni CAM 150 BR twin-impeller self-priming electric pump is ideal for domestic and industrial uses, in particular for lifting clean water, water mixed with chemically non-aggressive liquids and water mixed with gas .
Thanks to the 2-pole induction electric motor and the double impeller , the CAM 150 BR can provide excellent hydraulic performance and excellent pressure capacity, sucking up to 9 meters deep.
It is possible to reach a suction up to 35 meters by removing the ejector from the pump body and connecting it to the pump via a double pipe plus a foot valve.
The BR version, compared to the normal versions, is fitted with brass impellers.
Limits of use
- Liquid temperature: 35 ° C
- Ambient temperature: 40 ° C
- Suction height: 9 m
- Suction diameter: 1.5 "
- Delivery diameter: 1 "
Materials
- Pump course: Cast iron
- Motor support: Cast iron
- Impellers: Brass
- Diffuser: Noryl
- Seal flange: Cast iron
- Motor shaft: Stainless steel
- Mechanical seals: Ceramic / Graphite

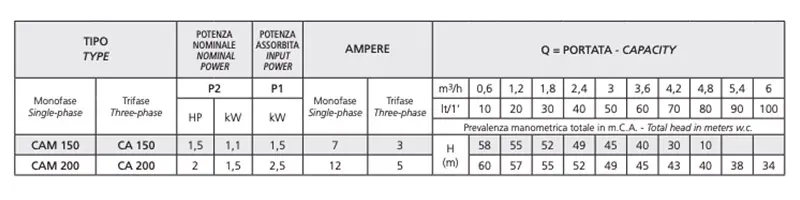

Technical data
| Power Supply | 230V |
| Nominal power | 1.5 HP - 1.1 kW |
| Suction diameter | 1 '' 1/2 |
| Delivery diameter | 1 '' |
| Prevalence | from 10 to 58 m |
| Liquid flow rate | 80 L / min |
| Max Temp. Liquid | 35 ° C |
| Max Ambient Temp | 40 ° C |
| Protection Class - Insulation | IP 44 - F |
| Pump Body Material | Cast iron |

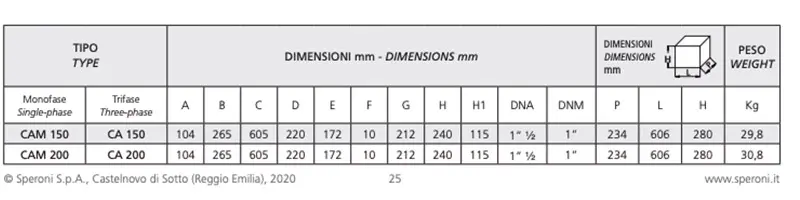

| Dimensions | 23 x 61 x 27 cm |
| Weight | 30 kg |
