Speroni CSM 32 Single Phase
Centrifugal Monobloc Pump

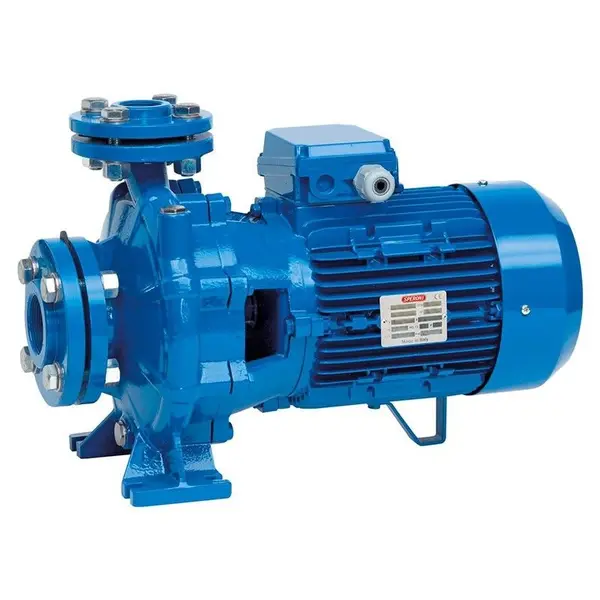

Speroni CSM 32 - Single-phase monobloc centrifugal electric pump 230V

The Speroni CS 32 range centrifugal electric pumps are monobloc and single-impeller with pump body connected directly to the motor by means of a support. These are centrifugal pumps suitable for pumping clean water or in any case liquids that are not chemically and mechanically aggressive .

Speroni CS 32 pumps can be used, for example, for water supplies, for sprinkler or flow irrigation, for feeding pressure tanks and pressure boosters, for heating and air conditioning or for any other use involving the movement of clean liquids in general.

These pumps have very flexible uses and can be used in various fields such as civil, agricultural, industrial or plant engineering in general and in any position (except with the suction mouth facing upwards).

All CS 32 electric pumps are equipped with flanged (PN 10) suction and delivery ports and threaded counter-flanges .

Available models selectable from the drop-down menu:

• CSM 32-160 C - 1,5 kW - 2 HP
• CSM 32-160 B - 2.2 kW - 3 HP
• CSM 32-200 C - 4.0 kW - 5.5 HP

Usage limits

• Liquid temperature limit up to 35 °C for domestic use (EN 60335-2-41)
• Liquid temperature limit up to 90°C for other uses
• Ambient temperature up to 40 °C
• Monometric suction height up to 7 m
• Continuous service

Materials

• Pump Course: Cast Iron
• Engine mount: Cast iron
• Impellers: Cast iron
• Crankshaft: AISI 304 Stainless Steel
• Mechanical seals: Ceramic / Graphite / NBR

Engines

• Insulation Class F
• IP 55 protection
• Single phase 230V-50Hz
• 2-pole induction electric motor (n = 2850 min -1)

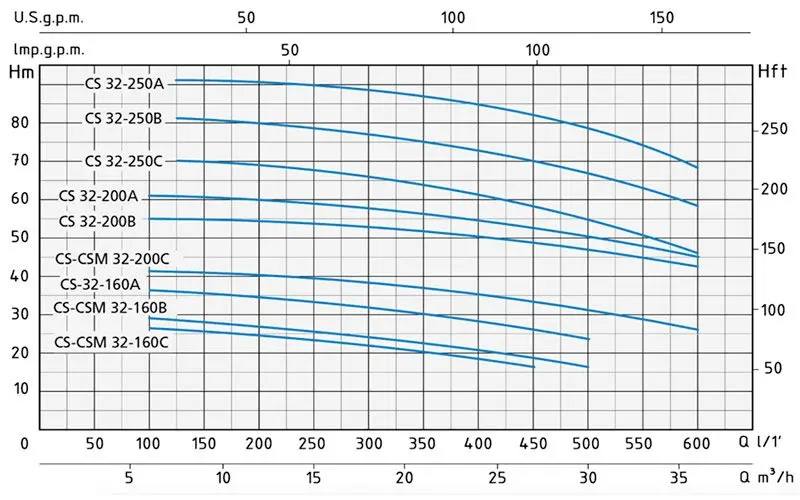

Hydraulic Curve

CHARACTERISTICS

• Monobloc centrifugal electric pump
• Flanged suction and delivery ports
• Clean water pumping
• Can be installed in any position
• Sprinkler and run-off irrigation
• Water supply
• Made in Italy
• Insulation F, IP 55
