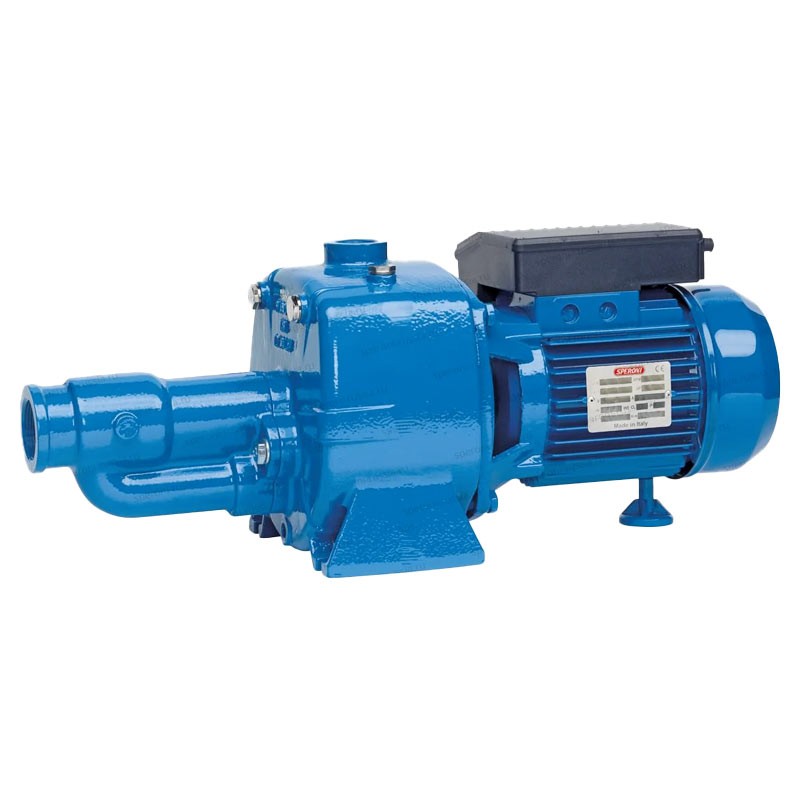

Speroni CAM/CA 150 IE3
Twin-impeller pump

Speroni CAM/CA 150 IE3 - Twin-impeller pump

The Speroni CAM 150 is a self-priming twin-impeller electric pump with a 2-pole induction electric motor . Capable of providing excellent hydraulic output and excellent pressure capacity, the Speroni CAM 150 can suck up to 9 m deep and also work with water mixed with gas .

If the ejector is removed from the pump body and connected to the pump via a double pipe and a foot valve, the CAM 150 allows suction up to 35 metres .

The Speroni electric pump was designed for domestic and industrial use, for lifting clean water or water mixed with chemically non-aggressive liquids .

The CA 150 IE3 version features a high-efficiency motor.

Download the TECHNICAL DATA SHEET

Limits of use

• Liquid temperature: 35 °C
• Ambient temperature: 40 °C
• Suction height: 9 m
• Suction diameter: 1.5"
• Delivery diameter: 1"

Materials

• Pump Course: Cast Iron
• Engine mount: Cast iron
• Impellers: Noryl
• Diffuser: Noryl
• Seal flange: Cast iron
• Crankshaft: Stainless Steel
• Mechanical seals: Ceramic / Graphite

Motor

• Single phase 230V-50Hz
• Three-phase 230V/400V-50Hz IE3 High efficiency
• 2-pole induction electric motor (n = 2850 min-1)
• Insulation Class F
• IP 55 protection
