Speroni CAM 60
Self-priming pump
MPN: 101150010
EAN: 8006414001994
€155.00
€127.05 tax excl.
Warranty 2 years
14 days to change your mind
Speroni CAM 60 - Self-priming pump
The Speroni CAM 60 self-priming electric pump, with 2-pole induction electric motor , has an excellent hydraulic output and a good pressure capacity.
This pump is particularly suitable for lifting and distribution in domestic systems, using small and medium tanks or autoclaves and can suck up to 8 meters deep. Speroni CAM 60 also works with water mixed with gas .
Download the TECHNICAL SHEET
Limits of use
- Max working pressure: 6 bar
- Liquid temperature: 35 ° C
- Ambient temperature: 40 ° C
- Suction height: 8 m
- Suction and delivery diameter: 1 "
Materials
- Pump course: Cast iron
- Motor support: Aluminum
- Impeller: Noryl
- Diffuser: Noryl
- Seal flange: Stainless steel
- Motor shaft: Stainless steel
- Mechanical seals: Ceramic / Graphite

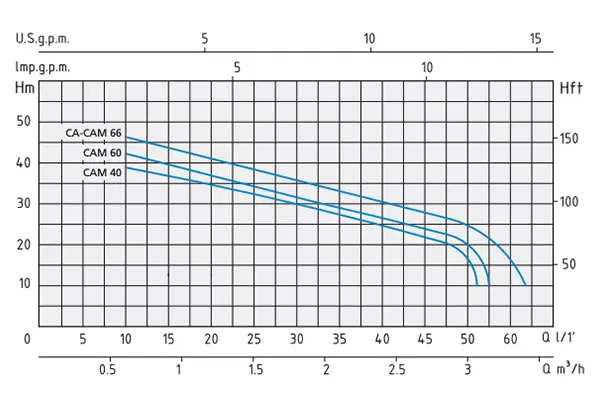

Hydraulic curve

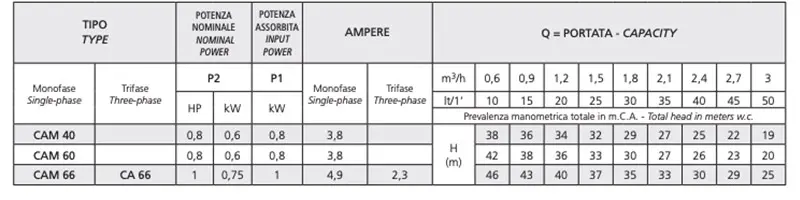

Technical data
| Power Supply | 230V |
| Nominal power | 0.8 HP - 0.6 kW |
| Suction diameter | 1 '' |
| Delivery diameter | 1 '' |
| Prevalence | from 20 to 42 m |
| Liquid flow rate | 50 L / min |
| Protection Class - Insulation | IP 44 - F |
| Max Temp. Liquid | 35 ° C |
| Max Ambient Temp | 40 ° C |
| Pump Body Material | Cast iron |
| Dimensions | 19 x 39 x 23 cm |
| Weight | 10 kg |
Technical data
| Power Supply | 230V |
| Nominal power | 0.8 HP - 0.6 kW |
| Suction diameter | 1 '' |
| Delivery diameter | 1 '' |
| Prevalence | from 20 to 42 m |
| Liquid flow rate | 50 L / min |
| Protection Class - Insulation | IP 44 - F |
| Max Temp. Liquid | 35 ° C |
| Max Ambient Temp | 40 ° C |
| Pump Body Material | Cast iron |
| Dimensions | 19 x 39 x 23 cm |
| Weight | 10 kg |
