Speroni CM 35 CM 45 CM 50 CM 53
Single Phase Centrifugal Electric Pump
€325.00
€266.39 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

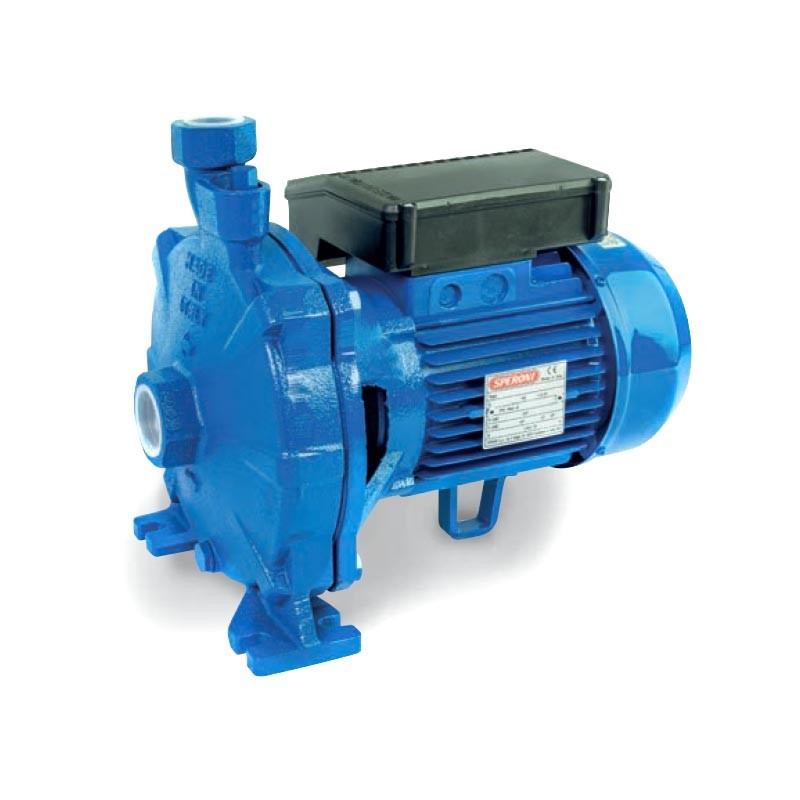

Speroni CM- Single Impeller Centrifugal Electric Pump
Speroni CM is a single-phase centrifugal electric pump designed to cover small , medium and large flow rate requirements. Usable in domestic, agricultural and industrial systems, Speroni CM has automatic water distribution by means of small tanks ( autoclave ), but is also designed for rain and flow irrigation in gardens and agriculture .
Speroni CM is also useful for increasing the network pressure of aqueducts in derivation.
According to EN 60335-2-41, liquid temperature up to 35° (domestic use), for other uses max. liquid temperature up to 90°C . With ambient temperature up to 40°C, the max. manometric suction height is 7 meters . Possibility of continuous service .
Materials
- Pump body: Cast iron
- Engine mount: Cast iron
- Impellers: Brass
- Crankshaft: AISI 304 Stainless Steel
- Mechanical seals: Ceramic/Graphite/NBR
Characteristics
- Single-phase centrifugal electric pump
- Domestic and industrial use
- Autoclave and irrigation
- To increase the pressure of the aqueducts
- Max manometric suction 7 m
- Made in Italy
- Insulation F, IP 55
Available models
- Spurs CM 35 - 230 V - 1.5 HP
- Speroni CM 45 - 230 V - 2 HP
- Spurs CM 50 - 230 V - 2.5 HP
- Speroni CM 53 - 230 V - 3 HP
Technical Data
| Model | CM 35 | CM 45 | CM 50 | CM 53 |
| Code | 101062010 | 101062390 | 101062600 | 101063010 |
| Power Supply | 230 V | 230 V | 230 V | 230 V |
| Horses | 1.5 HP | 2 HP | 2.5 HP | 3 HP |
| Rated power | 1.1 kW | 1.5 kW | 1.85 kW | 2.2 kW |
| Flow rate | 10 ÷ 125 L/min | 10 ÷ 125 L/min | 10 ÷ 150 L/min | 10 ÷ 150 L/min |
| Min/max prevalence | 19 ÷ 36 m | 28 ÷ 43 m | 27 ÷ 49.5 m | 29 ÷ 54 m |
| Suction Diameter | 1'' 1/4 | 1'' 1/4 | 1'' 1/4 | 1'' 1/4 |
| Delivery Diameter | 1'' | 1'' | 1'' | 1'' |
| Insulation class | F | F | F | F |
| Pump Body Material | Cast iron | Cast iron | Cast iron | Cast iron |
| Max. Ambient Temp. | 40°C | 40°C | 40°C | 40°C |
| Max Temp. Liquid Domestic Use | 35°C | 35°C | 35°C | 35°C |
| Max Temp. Liquid Other Uses | 90°C | 90°C | 90°C | 90°C |
| Protection level | IP 55 | IP 55 | IP 55 | IP 55 |
| Dimensions | 35 x 30 x 22 cm | 35 x 30 x 22 cm | 41 x 30 x 22 cm | 41 x 30 x 22 cm |
| Weight | 23.4 kg | 24.6 kg | 27.1 kg | 30.7 kg |
Technical Data
| Model | CM 35 | CM 45 | CM 50 | CM 53 |
| Code | 101062010 | 101062390 | 101062600 | 101063010 |
| Power Supply | 230 V | 230 V | 230 V | 230 V |
| Horses | 1.5 HP | 2 HP | 2.5 HP | 3 HP |
| Rated power | 1.1 kW | 1.5 kW | 1.85 kW | 2.2 kW |
| Flow rate | 10 ÷ 125 L/min | 10 ÷ 125 L/min | 10 ÷ 150 L/min | 10 ÷ 150 L/min |
| Min/max prevalence | 19 ÷ 36 m | 28 ÷ 43 m | 27 ÷ 49.5 m | 29 ÷ 54 m |
| Suction Diameter | 1'' 1/4 | 1'' 1/4 | 1'' 1/4 | 1'' 1/4 |
| Delivery Diameter | 1'' | 1'' | 1'' | 1'' |
| Insulation class | F | F | F | F |
| Pump Body Material | Cast iron | Cast iron | Cast iron | Cast iron |
| Max. Ambient Temp. | 40°C | 40°C | 40°C | 40°C |
| Max Temp. Liquid Domestic Use | 35°C | 35°C | 35°C | 35°C |
| Max Temp. Liquid Other Uses | 90°C | 90°C | 90°C | 90°C |
| Protection level | IP 55 | IP 55 | IP 55 | IP 55 |
| Dimensions | 35 x 30 x 22 cm | 35 x 30 x 22 cm | 41 x 30 x 22 cm | 41 x 30 x 22 cm |
| Weight | 23.4 kg | 24.6 kg | 27.1 kg | 30.7 kg |
