Speroni KFM 1
Volumetric pump
MPN: 101040150
EAN: 8006414007187
230V - 0.5 HP
40 L/min - Prevalence 38 m
Ø 1'' - 1''
€150.00
- 5%
€142.50
€116.80 tax excl.
Speroni KFM 1 - Volumetric pump
The Speroni KFM 1 volumetric pump has a high head and a linear operating curve; thanks to its characteristics it is particularly suitable when there is the need to increase the pressure of the water distribution network in domestic systems.
The Speroni KFM 1 must be used with clean water or non-aggressive liquids and therefore there must be no sand or other impurities. This pump is also suitable for small tanks, membrane hydrosphere units and autoclaves.
Download the TECHNICAL SHEET
Features
- Front suction mouth, in line with the engine
- Delivery port upwards
- 2-pole induction electric motor for continuous service
Limits of Use
- Liquid temperature: 60 ° C
- Ambient temperature: 40 ° C
- Suction height: 7 m
- Suction and delivery diameter: 1 "
Materials
- Pump course: Cast iron
- Motor support: Cast iron
- Pump course cover: Brass
- Impeller: Brass
- Motor shaft: Stainless steel
- Mechanical seals: Ceramic / Graphite / NBR

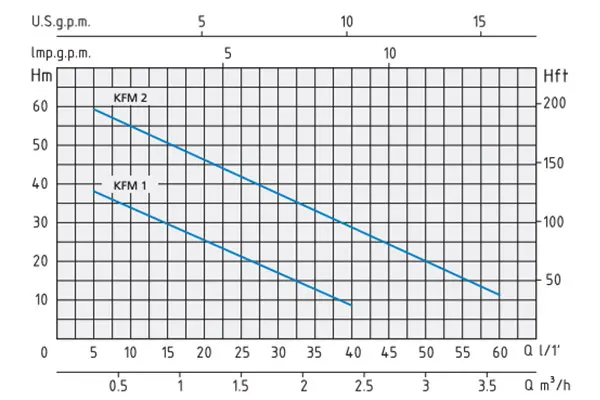

Hydraulic curve

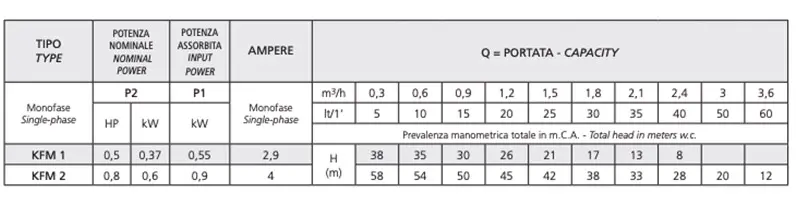

Technical data
| Power Supply | 230V |
| Nominal power | 0.5 HP - 0.37 kW |
| Suction diameter | 1 '' |
| Delivery diameter | 1 '' |
| Prevalence | from 8 to 38 m |
| Liquid flow rate | 40 L / min |
| Max Temp. Liquid | 60 ° C |
| Max Ambient Temp | 40 ° C |
| Protection Class - Insulation | F - IP 44 |
| Pump Body Material | Cast iron |
| Dimensions | 17 x 28 x 17 cm |
| Weight | 5.8 kg |
