Leo ECHm
Multistage Centrifugal Pump
€195.00
€159.84 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

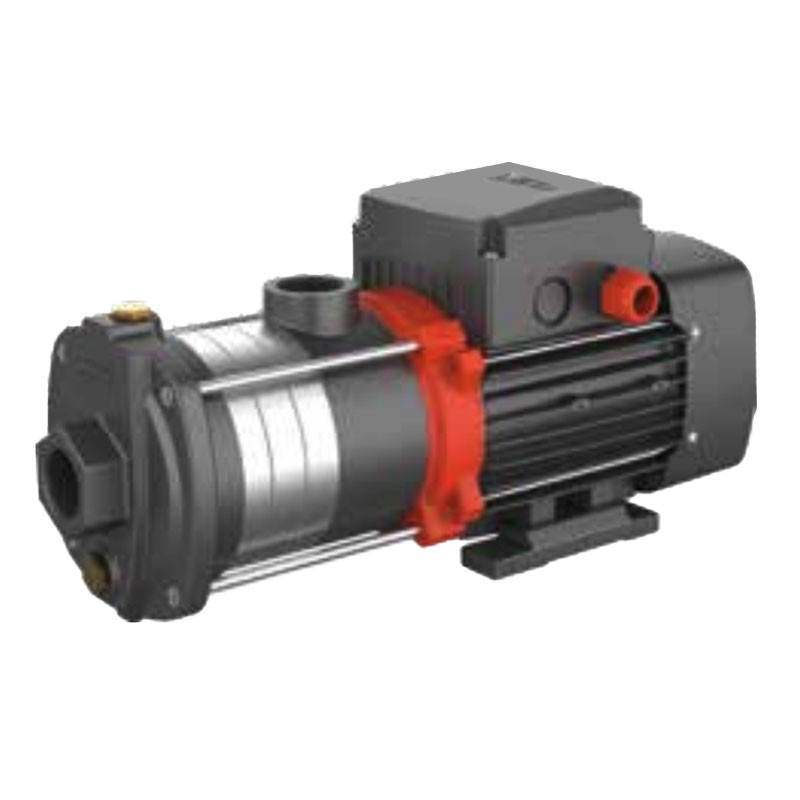

LEO ECHm - Single Phase Electric Pump
Leo ECHm is a multistage centrifugal pump that can be used in both industrial and civil and residential settings . The electric pump is in fact ideal for transferring clean water and non-chemically aggressive liquids and can be used for domestic use, in air conditioning and refrigeration systems, for automatic irrigation systems in vegetable gardens and gardens, etc.
The Leo ECHm electric pumps are developed with an extremely solid structure, with a cast iron pump body and stainless steel impellers ; the single-phase motor has a copper winding and an IP55 protection rating.
Characteristics
- Crankshaft in AISI 304
- Maximum liquid temperature: 40 °C
- Manometric suction height up to 8 m
- Motor with copper winding
- Thermal protection
- Insulation class: F
- Degree of protection: IP55
- Max ambient temperature: 40 °C

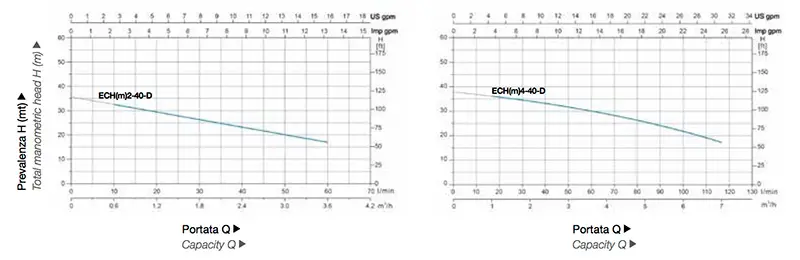

Leo ECHm Electric Pump Performance Diagram

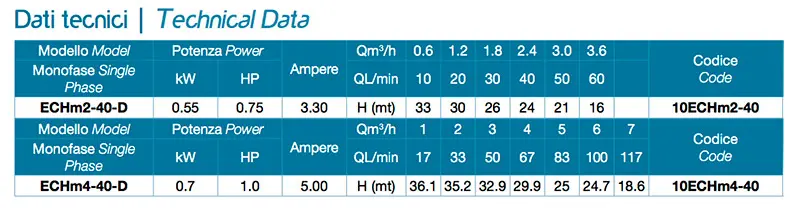

Technical Data
| Model | ECHm2-40-D | ECHm4-40-D |
| Power Supply | 230V | 230V |
| Rated power | 0.55 kW - 0.75 HP | 0.7 kW - 1 HP |
| Number of Impellers | 4 | 4 |
| Suction Diameter | Ø 1'' 1/4 | Ø 1'' 1/4 |
| Delivery Diameter | Ø 1'' | Ø 1'' |
| Max Liquid Temp. | 40 °C | 40 °C |
| Manometric Suction Height | 8 m | 8 m |
| Protection Class | IP 55 - Class F | IP 55 - Class F |
| Max Liquid Temp. | 40 °C | 40 °C |
| Max. Ambient Temp. | 40 °C | 40 °C |
| Dimensions | 36 x 15 x 20 cm | 39 x 15 x 20 cm |
| Weight | 10.7 kg | 14 kg |
Technical Data
| Model | ECHm2-40-D | ECHm4-40-D |
| Power Supply | 230V | 230V |
| Rated power | 0.55 kW - 0.75 HP | 0.7 kW - 1 HP |
| Number of Impellers | 4 | 4 |
| Suction Diameter | Ø 1'' 1/4 | Ø 1'' 1/4 |
| Delivery Diameter | Ø 1'' | Ø 1'' |
| Max Liquid Temp. | 40 °C | 40 °C |
| Manometric Suction Height | 8 m | 8 m |
| Protection Class | IP 55 - Class F | IP 55 - Class F |
| Max Liquid Temp. | 40 °C | 40 °C |
| Max. Ambient Temp. | 40 °C | 40 °C |
| Dimensions | 36 x 15 x 20 cm | 39 x 15 x 20 cm |
| Weight | 10.7 kg | 14 kg |
