Speroni HW 60 CAM 66/100/152
Pressurization Groups
Expansion Vessel 60 L

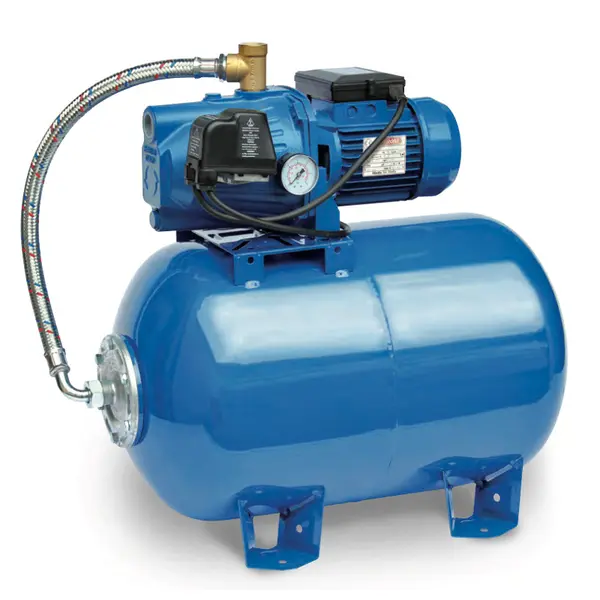

Speroni HW CAM 66/60, CAM 100/60, CAM 152/60 - Single-Phase Pressurization Groups

Speroni HW 60 automatic pressurization groups with self-priming jet electric pump are very reliable and silent. These pumps are particularly suitable for increasing the pressure available from a distribution network, for water supply with suction from wells and for domestic water systems.

HW 60 CAM 66 , CAM 100 and CAM 152 are equipped with a 2-pole induction electric motor , with class F insulation and IP 44 protection . The single-phase motor rotates at a speed of 2850 RPM . These models have a 60 L expansion vessel .

The components of the HW 60 pressure booster sets are of high quality to ensure durability and excellent performance. The membrane tank is designed for a stable and constant water supply. Made of durable materials, the tank separates water from air, maintaining a constant pressure and preventing water hammer. It includes a flexible hose assembly for easy installation, a pre-calibrated pressure switch between 1.6 and 3.2 bar , a pressure gauge to monitor the pressure and corrosion-resistant brass fittings .

Available models

Speroni pressurization groups have different specifications and features, to meet the needs of users.

Selectable from drop-down menu:

• HW CAM 66/60 - Single Phase
• HW CAM 100/60 - Single Phase
• HW CAM 152/60 - Single Phase

Usage limits

• Liquid temperature limit up to 35°C for domestic use (EN 60335-2-41)
• Liquid temperature limit up to 35°C for other uses
• Ambient temperature up to 40°C
• Suction height manometers up to 8 m
• Continuous service

Motor

• Three-phase 230/400V
• 2-pole induction electric motor (2850 RPM)
• Class F insulation
• IP 44 protection

Materials

• Butyl membrane tank
• Connected flexible hose
• Pre-calibrated pressure switch 1.6-3.2 bar with cables
• Gauge
• Brass fitting

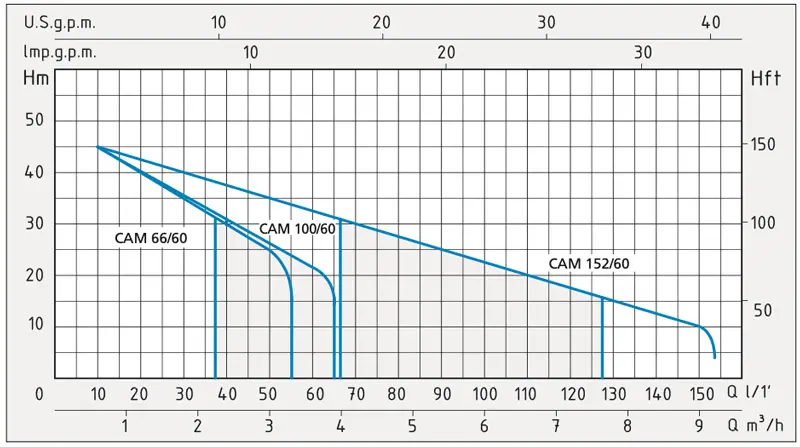

Hydraulic Curve

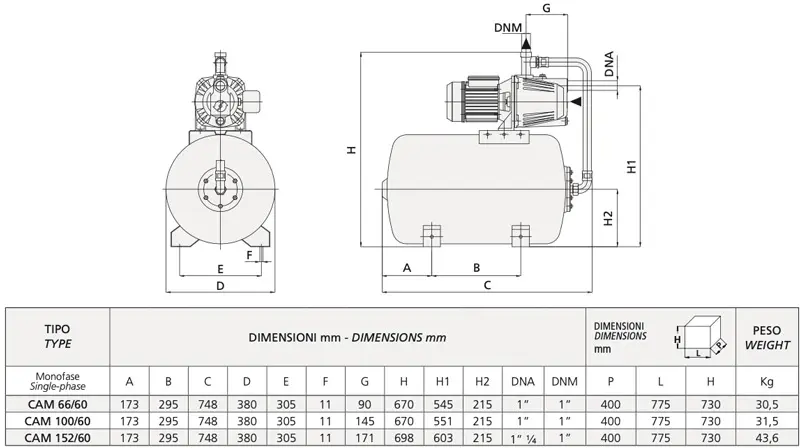

Product Dimensions
