Leo XST
Flanged Monobloc Centrifugal Electric Pump

LEO XST Single Impeller Centrifugal Electric Pump

LEO XST electric pumps for the circulation and transfer of clean water, or other chemically non-aggressive liquids and water supply and irrigation.

Characteristics

• Flow rate up to 1200 L/min
• Head up to 72 m
• Liquid Temperature: Standard: -10°C to 85°C
• Maximum operating pressure: 12 bar (PN12) anticlockwise rotation looking at the pump from the suction port
• Impeller: AISI304 stainless steel / HT200 cast iron
• Mechanical seal Compliant with DIN 24960
• Internal lubrication through recirculation of the pumped liquid
• Anti-angel kit available on request
• Closed construction, external ventilation
• Insulation class: F
• Protection class: IP54
• Performance in compliance with CEI 2-3 (CEI 34.1) standards
• Maximum ambient temperature: + 40°C
• Overload protection
• Single centrifugal impeller, with axial suction port and radial delivery port
• DN inlet and outlet in accordance with EN 733 (ex DIN 24255) and UNI 7467

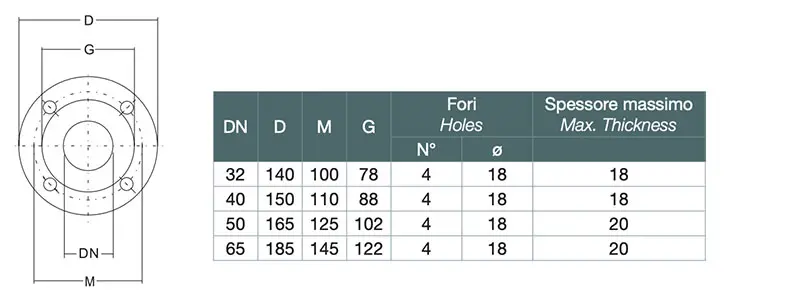

• Flanges in compliance with UNI 1092-1/1 standard included
• The impeller and the motor can be removed without disconnecting the pump body from the pipes.

For further information on the proposed models, please consult the attached PDF.

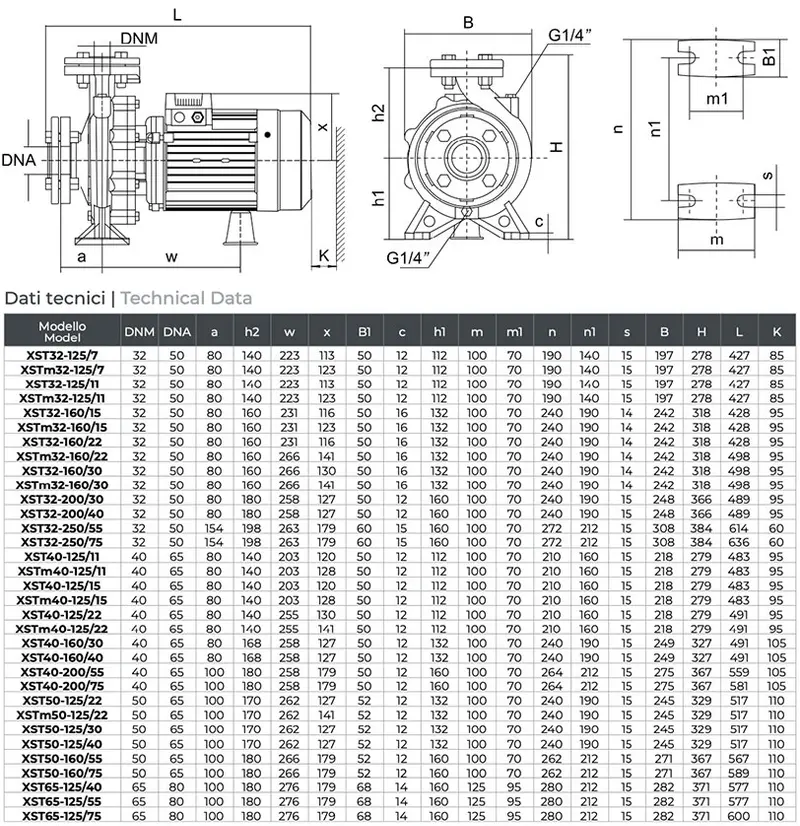

Dimensions
