Leo ACm / AC 3''
Single Impeller Centrifugal Electric Pump
230V / 400V - 1.5÷4HP
1200 L/min - Head 20 m
Ø 3" - 3"
€297.00
€243.44 tax excl.
Warranty 2 years
Shipped on Pallet

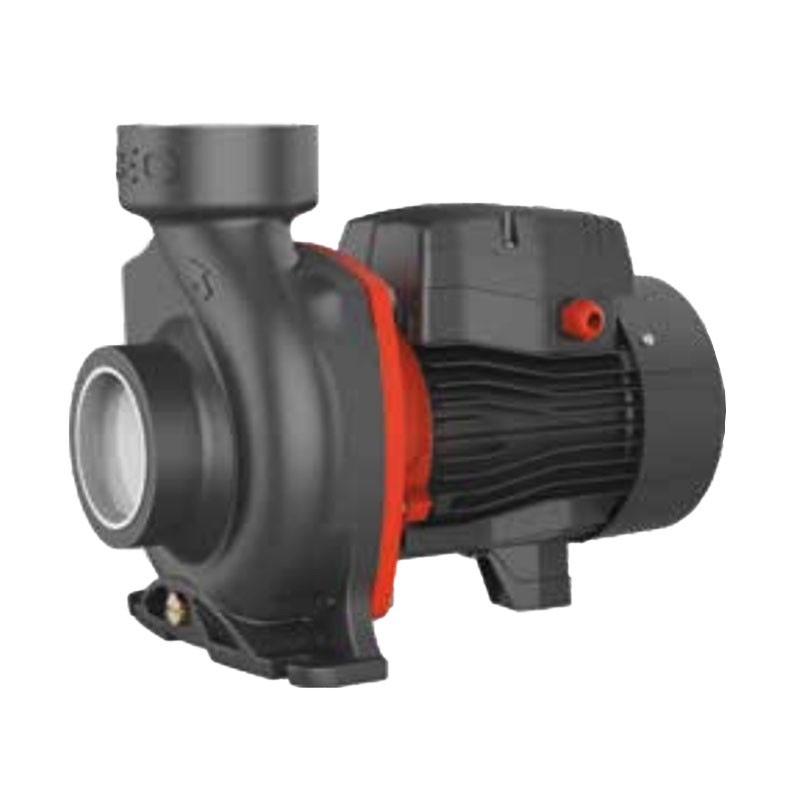

LEO ACm / AC 3'' Single Impeller Centrifugal Electric Pump
The LEO ACm / AC 3" electric pumps can be used to transfer clean water or chemically non-aggressive liquids.
They are recommended for use in civil and agricultural environments, particularly suitable for flow and sprinkler irrigation , for drawing water from lakes, rivers or wells.
Also suitable for industrial uses where high flow rates with low heads are required , for example in the fruit and vegetable sector for washing vegetables , or in the industrial sector for parts washing machines.
Characteristics
- Cast iron pump body, subjected to cataphoresis treatment
- Brass impeller
- AISI 304 Stainless Steel Tree
- Max. liquid temperature: +40°C
- Manometric suction height up to 8 m
- Single-phase motor with thermal protection
- Motor with copper winding
- Insulation class: F
- Protection class: IPX4
- Maximum ambient temperature: +40 °C
Dati Tecnici
| Modello | ACm110B3 | ACm150B3 | AC110B3 | AC150B3 | AC220B3 | AC300B3 |
| Codice | 10ACM110B3 | 10ACM150B3 | 10AC110B3 | 10AC150B3 | 10AC220B3 | 10AC300B3 |
| Alimentazione | 230V | 230V | 400V | 400V | 400V | 400V |
| Potenza nominale | 1,1 kW - 1,5 HP | 1,5 kW - 2 HP | 1,1 kW - 1,5 HP | 1,5 kW - 2 HP | 2,2 kW - 3 HP | 3 kW - 4 HP |
| Max Temp. Liquido | 40° C | 40° C | 40° C | 40° C | 40° C | 40° C |
| Max. Temp. Ambiente | 40° C | 40° C | 40° C | 40° C | 40° C | 40° C |
| Classe di Protezione | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Ø Ingresso | 3’’ | 3’’ | 3’’ | 3’’ | 3’’ | 3’’ |
| Ø Uscita | 3’’ | 3’’ | 3’’ | 3’’ | 3’’ | 3’’ |
| Dimensione | 39 x 23 x 30 cm | 39 x 23 x 30 cm | 39 x 23 x 30 cm | 39 x 23 x 30 cm | 45 x 23 x 30 cm | 45 x 23 x 30 cm |
| Peso | 26 Kg | 27 Kg | 26 Kg | 27 Kg | 35 Kg | 37 Kg |
Dati Tecnici
| Modello | ACm110B3 | ACm150B3 | AC110B3 | AC150B3 | AC220B3 | AC300B3 |
| Codice | 10ACM110B3 | 10ACM150B3 | 10AC110B3 | 10AC150B3 | 10AC220B3 | 10AC300B3 |
| Alimentazione | 230V | 230V | 400V | 400V | 400V | 400V |
| Potenza nominale | 1,1 kW - 1,5 HP | 1,5 kW - 2 HP | 1,1 kW - 1,5 HP | 1,5 kW - 2 HP | 2,2 kW - 3 HP | 3 kW - 4 HP |
| Max Temp. Liquido | 40° C | 40° C | 40° C | 40° C | 40° C | 40° C |
| Max. Temp. Ambiente | 40° C | 40° C | 40° C | 40° C | 40° C | 40° C |
| Classe di Protezione | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Ø Ingresso | 3’’ | 3’’ | 3’’ | 3’’ | 3’’ | 3’’ |
| Ø Uscita | 3’’ | 3’’ | 3’’ | 3’’ | 3’’ | 3’’ |
| Dimensione | 39 x 23 x 30 cm | 39 x 23 x 30 cm | 39 x 23 x 30 cm | 39 x 23 x 30 cm | 45 x 23 x 30 cm | 45 x 23 x 30 cm |
| Peso | 26 Kg | 27 Kg | 26 Kg | 27 Kg | 35 Kg | 37 Kg |
