Leo ACm / AC 2' - Elettropompa Centrifuga Monogirante
search

Leo ACm / AC 2
Single impeller centrifugal electric pump

€177.00
€145.08 tax excl.
or in 3 rates from 59.00 € withscalapay info
or in 3 rates from 59.00 € with paypal info
library_add more options

230V / 400V - 0.8 ÷ 2 HP
500 L/min - Head 22 m
Ø 2" - 2"

Free shipping
Expected Delivery Within
Monday 28 April
Quantity
library_add Quantity Discounts
from 2 to 5pz - 5 %
more than 5 Quote Request
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer


LEO ACm / AC 2'' Single Impeller Centrifugal Electric Pump

Single-impeller centrifugal electric pumps can be used to transfer clean water or chemically non-aggressive liquids. They are recommended for use in civil and agricultural environments. This family of electric pumps is particularly suitable for flood and sprinkler irrigation, for drawing water from lakes, drains or wells. Suitable for industrial uses which require high flow rates with low heads, for example in the fruit and vegetable sector for washing vegetables, or in the industrial sector for parts washing machines.

Download the TECHNICAL SHEET

Characteristics

  • Pump body in cast iron, subjected to cataphoresis treatment
  • Impeller in AISI 304 / brass
  • AISI 304 shaft
  • max temperature liquid: +40°C
  • Manometric suction height up to: 8 m
  • Motor with copper winding
  • Single-phase motor with thermal protection
  • Insulation class: F
  • Protection class: IPX4
  • Maximum ambient temperature: +40°C

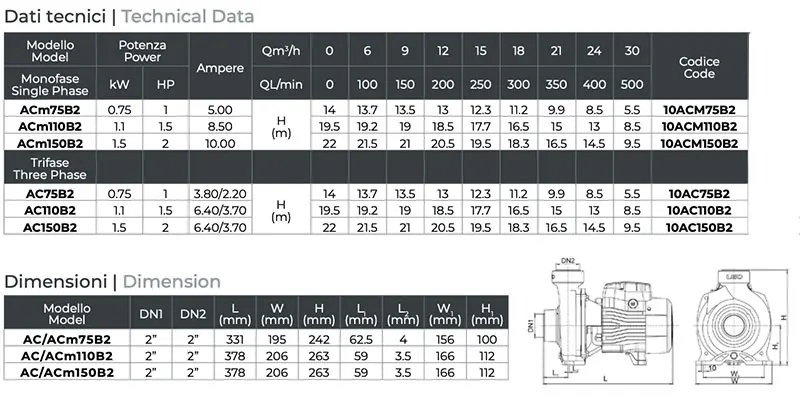

Technical data

Model ACm60B2 ACm75B2 ACm110B2 ACm150B2 AC60B2 AC75B2 AC110B2 AC150B2
Code 10ACM60B2 10ACM75B2 10ACM110B2 10ACM150B2 10AC60B2 10AC75B2 10AC110B2 10AC150B2
Power Supply 230V 230V 230V 230V 400V 400V 400V 400V
Nominal power 0.6kW - 0.8HP 0.75kW - 0.1HP 1.1kW - 1.5HP 1.5kW - 2HP 0.6kW - 0.8HP 0.75kW - 1HP 1.1kW - 1.5HP 1.5kW - 2HP
Max Temp. Liquid 40°C 40°C 40°C 40°C 40°C 40°C 40°C 40°C
Max. Ambient Temp 40°C 40°C 40°C 40°C 40°C 40°C 40°C 40°C
Protection class IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
Ø Entrance 2'' 2'' 2'' 2'' 2'' 2'' 2'' 2''
Ø Output 2'' 2'' 2'' 2'' 2'' 2'' 2'' 2''
Dimension 33x20x24cm 33x20x24cm 38 x 21 x 26cm 38 x 21 x 26cm 33x20x24cm 33x20x24cm 38 x 21 x 26cm 38 x 21 x 26cm
Weight 14 Kgs 15 Kgs 20 Kgs 21 Kgs 14 Kgs 15 Kgs 20 Kgs 21 Kgs

Technical data

Model ACm60B2 ACm75B2 ACm110B2 ACm150B2 AC60B2 AC75B2 AC110B2 AC150B2
Code 10ACM60B2 10ACM75B2 10ACM110B2 10ACM150B2 10AC60B2 10AC75B2 10AC110B2 10AC150B2
Power Supply 230V 230V 230V 230V 400V 400V 400V 400V
Nominal power 0.6kW - 0.8HP 0.75kW - 0.1HP 1.1kW - 1.5HP 1.5kW - 2HP 0.6kW - 0.8HP 0.75kW - 1HP 1.1kW - 1.5HP 1.5kW - 2HP
Max Temp. Liquid 40°C 40°C 40°C 40°C 40°C 40°C 40°C 40°C
Max. Ambient Temp 40°C 40°C 40°C 40°C 40°C 40°C 40°C 40°C
Protection class IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
Ø Entrance 2'' 2'' 2'' 2'' 2'' 2'' 2'' 2''
Ø Output 2'' 2'' 2'' 2'' 2'' 2'' 2'' 2''
Dimension 33x20x24cm 33x20x24cm 38 x 21 x 26cm 38 x 21 x 26cm 33x20x24cm 33x20x24cm 38 x 21 x 26cm 38 x 21 x 26cm
Weight 14 Kgs 15 Kgs 20 Kgs 21 Kgs 14 Kgs 15 Kgs 20 Kgs 21 Kgs
