Leo 2ACm / 2AC
Twin-impeller centrifugal electric pump
Cast iron body, stainless steel impeller

230V / 400V - 1÷5.5HP
250 L/min - Head 82 m
Ø 1"1/4÷1"1/2 - 1"÷1"1/4

€210.00
€172.13 tax excl.

MPN: 102ACM75

Modello
Estimated Shipping
Friday 08 May
Quantity
library_add Quantity Discounts
from 2 to 5pz - 5 %
more than 5 Quote Request
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer

Buying Guide

LEO 2ACm / 2AC Twin-Impulse Centrifugal Electric Pump

Twin-impeller centrifugal electric pumps with a CAST IRON BODY and STAINLESS STEEL IMPELLER can be used to transfer clean water or chemically non-aggressive liquids. They are suitable for industrial applications, urban water supply, pressurization of tall buildings, fire-fighting systems, garden irrigation, long-distance water transfer, heating, ventilation, and air conditioning systems, circulation and pressurization of cold water, and in various industrial fields.

LEO 2ACm / 2AC Twin-Impulse Centrifugal Electric PumpLEO 2ACm / 2AC Twin-Impulse Centrifugal Electric Pump

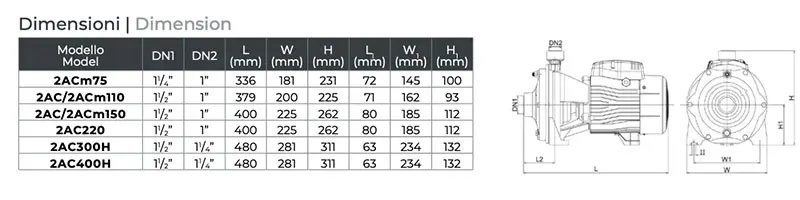

Leo 2 Acm pump dimensions

Characteristics

  • Cast iron pump body, subjected to cataphoresis treatment (reduces the formation of rust, preventing the electric pump from blocking)
  • Stainless steel impeller
  • AISI 304 shaft
  • Max. liquid temperature: +40°C
  • Manometric suction height up to: 8m
  • Motor with copper winding
  • Single-phase motor with thermal protection
  • Insulation class: F
  • Protection class: IPX4
  • Maximum ambient temperature: +40 °C

LEO 2ACm / 2AC Twin-Impulse Centrifugal Electric Pump

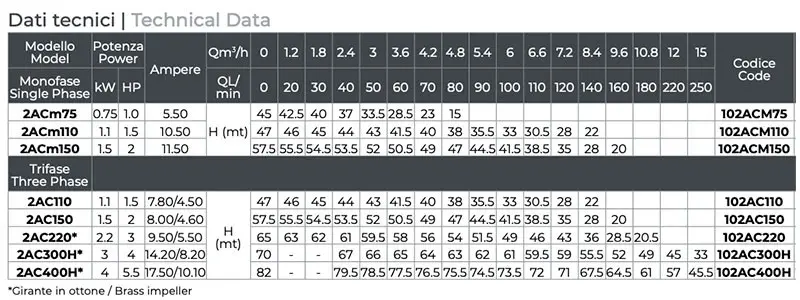

Technical Data

Model 2ACm75 2ACm110 2ACm150 2AC110 2AC150 2AC220 2AC300H 2AC400H
Code 102ACM75 102ACM110 102ACM150 102AC110 102AC150 102AC220 102AC300H 102AC400H
Food 230V 230V 230V 400V 400V 400V 400V 400V
Nominal power 0.75 kW - 1.0 HP 1.1 kW - 1.5 HP 1.5 kW - 2 HP 1.1 kW - 1.5 HP 1.5 kW - 2 HP 2.2 kW - 3 HP 3 kW - 4 HP 4 kW - 5.5 HP
Suction Diameter 1 1/4'' 1 1/2'' 1 1/2'' 1 1/2'' 1 1/2'' 1 1/2'' 1 1/2'' 1 1/2''
Diameter Mandatory 1'' 1'' 1'' 1'' 1'' 1'' 1 1/4'' 1 1/4''
Prevalence 45 m 47 m 57.5 m 47 m 57.5 m 65 m 70 m 82 m
Scope 80 L/min 140 L/min 160 L/min 140 L/min 160 L/min 180 L/min 220 L/min 250 L/min
Max. Liquid Temp. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Max. Ambient Temp. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Protection Class IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
Pump Body Material Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa
Dimensions 33.6 x 18.1 x 23.1 cm 37.9 x 20 x 22.5 cm 40 x 22.5 x 26.2 cm 37.9 x 20 x 22.5 cm 40 x 22.5 x 26.2 cm 40 x 22.5 x 26.2 cm 48 x 28.1 x 31.1 cm 48 x 28.1 x 31.1 cm
Peso 16 kg 21 Kg 27 Kg 21 Kg 27 Kg 27 Kg 51 Kg 52 Kg

Technical Data

Model 2ACm75 2ACm110 2ACm150 2AC110 2AC150 2AC220 2AC300H 2AC400H
Code 102ACM75 102ACM110 102ACM150 102AC110 102AC150 102AC220 102AC300H 102AC400H
Food 230V 230V 230V 400V 400V 400V 400V 400V
Nominal power 0.75 kW - 1.0 HP 1.1 kW - 1.5 HP 1.5 kW - 2 HP 1.1 kW - 1.5 HP 1.5 kW - 2 HP 2.2 kW - 3 HP 3 kW - 4 HP 4 kW - 5.5 HP
Suction Diameter 1 1/4'' 1 1/2'' 1 1/2'' 1 1/2'' 1 1/2'' 1 1/2'' 1 1/2'' 1 1/2''
Diameter Mandatory 1'' 1'' 1'' 1'' 1'' 1'' 1 1/4'' 1 1/4''
Prevalence 45 m 47 m 57.5 m 47 m 57.5 m 65 m 70 m 82 m
Scope 80 L/min 140 L/min 160 L/min 140 L/min 160 L/min 180 L/min 220 L/min 250 L/min
Max. Liquid Temp. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Max. Ambient Temp. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Protection Class IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
Pump Body Material Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa Ghisa
Dimensions 33.6 x 18.1 x 23.1 cm 37.9 x 20 x 22.5 cm 40 x 22.5 x 26.2 cm 37.9 x 20 x 22.5 cm 40 x 22.5 x 26.2 cm 40 x 22.5 x 26.2 cm 48 x 28.1 x 31.1 cm 48 x 28.1 x 31.1 cm
Peso 16 kg 21 Kg 27 Kg 21 Kg 27 Kg 27 Kg 51 Kg 52 Kg

INDORS is an Authorized Service and Repair Center

Our workshop is able to guarantee efficient and professional repairs: speed; of intervention, competence and availability are our strengths.

By purchasing from Indors you will also have purchased peace of mind: our Assistance and Repairs Service guarantees quick and timely solutions for any problem thanks to the safe availability; of spare parts, your equipment will always be efficient and available within a few days at a low cost. More information

EU Warranty 2 Anni

All products sold by Indors are covered by a legal guarantee of 2 years from the date of purchase for purchases by individuals (12 months for professional users) for lack of conformity, pursuant to art. 128 ff. Legislative Decree no. 206/2005.
More information

2 year warranty

Leo 2ACm / 2AC - Twin-impeller centrifugal electric pump - Cast iron body, stainless steel impeller
