Leo ACm / AC
Single Impeller Centrifugal Electric Pump
€132.00
€108.20 tax excl.
| or in 3 rates from 44.00 € with |  | |
| or in 3 rates from 44.00 € with |  |
230V / 400V - 0.5 ÷ 1.5 HP
140 L/min - Head 48 m
Ø 1"÷1"1/4 - 1"
Warranty 2 years
14 days to change your mind
LEO ACm / AC Single Impeller Centrifugal Electric Pump
Centrifugal electric pumps can be used to transfer clean water or chemically non-aggressive liquids. They can be used for domestic and industrial applications, garden irrigation, water transfer over medium distances, air conditioning and refrigeration systems, in various industrial fields. Due to their silence, they are particularly suitable for domestic use, especially for pressurization, coupled with classic tanks or with the most sophisticated latest generation inverters.
Download the TECHNICAL SHEET
Characteristics
- Pump body in cast iron, subjected to cataphoresis treatment (reduces the formation of rust by avoiding blockage of the electric pump)
- Impeller in AISI 304 stainless steel
- AISI 304 shaft
- Maximum liquid temperature: +40°C
- Manometric suction height up to: 8 metres
- Motor with copper winding
- Single-phase motor with thermal protection inserted in the winding
- Insulation class: F
- Protection class: IPX4
- Maximum ambient temperature: +40°C

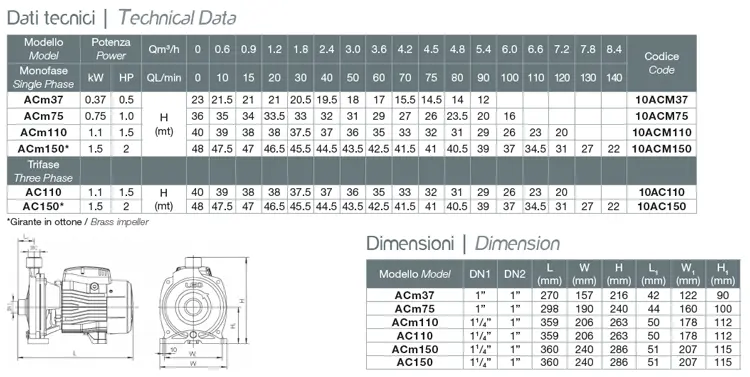

Technical data
| Model | ACm37 | ACm75 | ACm110 | ACm150 | AC110 | AC150 |
| Code | 10ACM37 | 10ACM75 | 10ACM110 | 10ACM150 | 10AC110 | 10AC150 |
| Power Supply | 230V | 230V | 230V | 230V | 400V | 400V |
| Nominal power | 0.37kW - 0.5HP | 0.75kW - 1HP | 1.1kW - 1.5HP | 1.5kW - 2HP | 1.1kW - 1.5HP | 1.5kW - 2HP |
| Max Temp. Liquid | 40°C | 40°C | 40°C | 40°C | 40°C | 40°C |
| Max. Ambient Temp | 40°C | 40°C | 40°C | 40°C | 40°C | 40°C |
| Protection class | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Dimension | 27x18x22cm | 30 x 19 x 24cm | 36 x 21 x 26cm | 36 x 21 x 26cm | 36 x 24 x 29cm | 36 x 24 x 29cm |
| Weight | 8.4 kg | 13.4kg | 18.5 kgs | 18.5 kgs | 23 kgs | 23 kgs |
Technical data
| Model | ACm37 | ACm75 | ACm110 | ACm150 | AC110 | AC150 |
| Code | 10ACM37 | 10ACM75 | 10ACM110 | 10ACM150 | 10AC110 | 10AC150 |
| Power Supply | 230V | 230V | 230V | 230V | 400V | 400V |
| Nominal power | 0.37kW - 0.5HP | 0.75kW - 1HP | 1.1kW - 1.5HP | 1.5kW - 2HP | 1.1kW - 1.5HP | 1.5kW - 2HP |
| Max Temp. Liquid | 40°C | 40°C | 40°C | 40°C | 40°C | 40°C |
| Max. Ambient Temp | 40°C | 40°C | 40°C | 40°C | 40°C | 40°C |
| Protection class | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Dimension | 27x18x22cm | 30 x 19 x 24cm | 36 x 21 x 26cm | 36 x 21 x 26cm | 36 x 24 x 29cm | 36 x 24 x 29cm |
| Weight | 8.4 kg | 13.4kg | 18.5 kgs | 18.5 kgs | 23 kgs | 23 kgs |
