Leo ACm / AC
Single Impeller Centrifugal Electric Pump
230V / 400V - 0.5 ÷ 1.5 HP
140 L/min - Head 48 m
Ø 1"÷1"1/4 - 1"
€132.00
€108.20 tax excl.

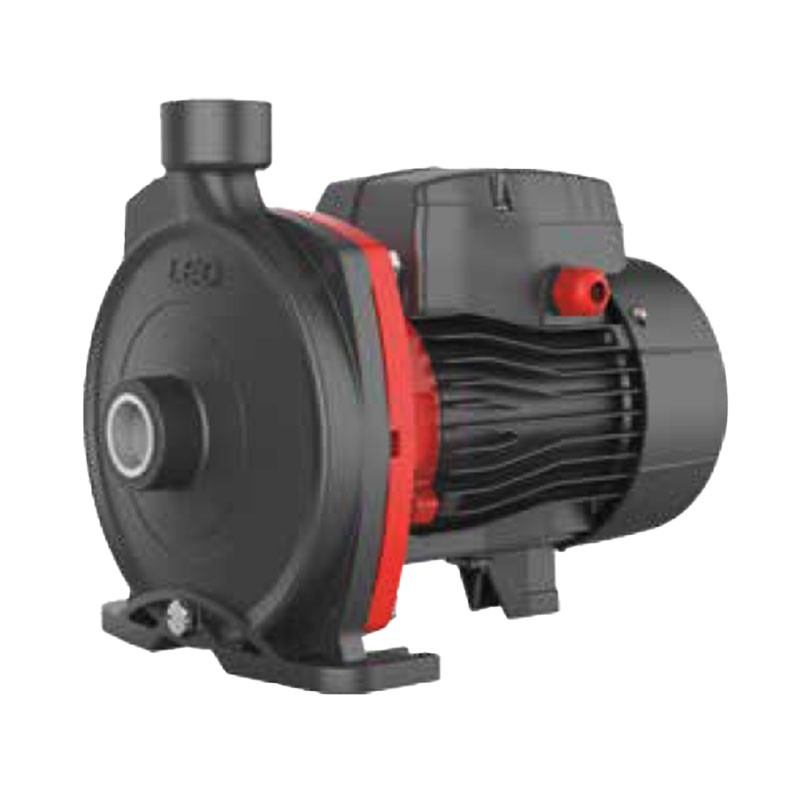

LEO ACm / AC Single Impeller Centrifugal Electric Pump
Centrifugal electric pumps can be used to transfer clean water or chemically non-aggressive liquids. They can be used for domestic and industrial applications, garden irrigation, water transfer over medium distances, air conditioning and refrigeration systems, in various industrial fields. Due to their silence, they are particularly suitable for domestic use, especially for pressurization, coupled with classic tanks or the most sophisticated latest-generation inverters.
Characteristics
- Cast iron pump body, subjected to cataphoresis treatment (reduces the formation of rust, avoiding blocking of the electric pump)
- Impeller in AISI 304 stainless steel
- AISI 304 shaft
- Maximum liquid temperature: +40°C
- Manometric suction height up to: 8 metres
- Motor with copper winding
- Single-phase motor with thermal protection inserted in the winding
- Insulation class: F
- Protection class: IPX4
- Maximum ambient temperature: +40°C
Dati Tecnici
| Modello | ACm37 | ACm75 | ACm110 | ACm150 | AC110 | AC150 |
| Codice | 10ACM37 | 10ACM75 | 10ACM110 | 10ACM150 | 10AC110 | 10AC150 |
| Alimentazione | 230V | 230V | 230V | 230V | 400V | 400V |
| Potenza nominale | 0,37 kW - 0,5 HP | 0,75 kW - 1 HP | 1,1 kW - 1,5 HP | 1,5 kW - 2 HP | 1,1 kW - 1,5 HP | 1,5 kW - 2 HP |
| Max Temp. Liquido | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C |
| Max. Temp. Ambiente | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C |
| Classe di Protezione | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Dimensione | 27 x 18 x 22 cm | 30 x 19 x 24 cm | 36 x 21 x 26 cm | 36 x 21 x 26 cm | 36 x 24 x 29 cm | 36 x 24 x 29 cm |
| Peso | 8,4 Kg | 13,4 Kg | 18,5 Kg | 18,5 Kg | 23 Kg | 23 Kg |
Dati Tecnici
| Modello | ACm37 | ACm75 | ACm110 | ACm150 | AC110 | AC150 |
| Codice | 10ACM37 | 10ACM75 | 10ACM110 | 10ACM150 | 10AC110 | 10AC150 |
| Alimentazione | 230V | 230V | 230V | 230V | 400V | 400V |
| Potenza nominale | 0,37 kW - 0,5 HP | 0,75 kW - 1 HP | 1,1 kW - 1,5 HP | 1,5 kW - 2 HP | 1,1 kW - 1,5 HP | 1,5 kW - 2 HP |
| Max Temp. Liquido | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C |
| Max. Temp. Ambiente | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C |
| Classe di Protezione | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Dimensione | 27 x 18 x 22 cm | 30 x 19 x 24 cm | 36 x 21 x 26 cm | 36 x 21 x 26 cm | 36 x 24 x 29 cm | 36 x 24 x 29 cm |
| Peso | 8,4 Kg | 13,4 Kg | 18,5 Kg | 18,5 Kg | 23 Kg | 23 Kg |
