Leo 3/4 ACm 3/4 AC
Self-priming pump
or in 3 rates from 52.00 € with | ||
or in 3 rates from 52.00 € with |
230V - 0.6 ÷ 1 HP
90 L / min - Prevalence 46 m
Ø 1 "1"

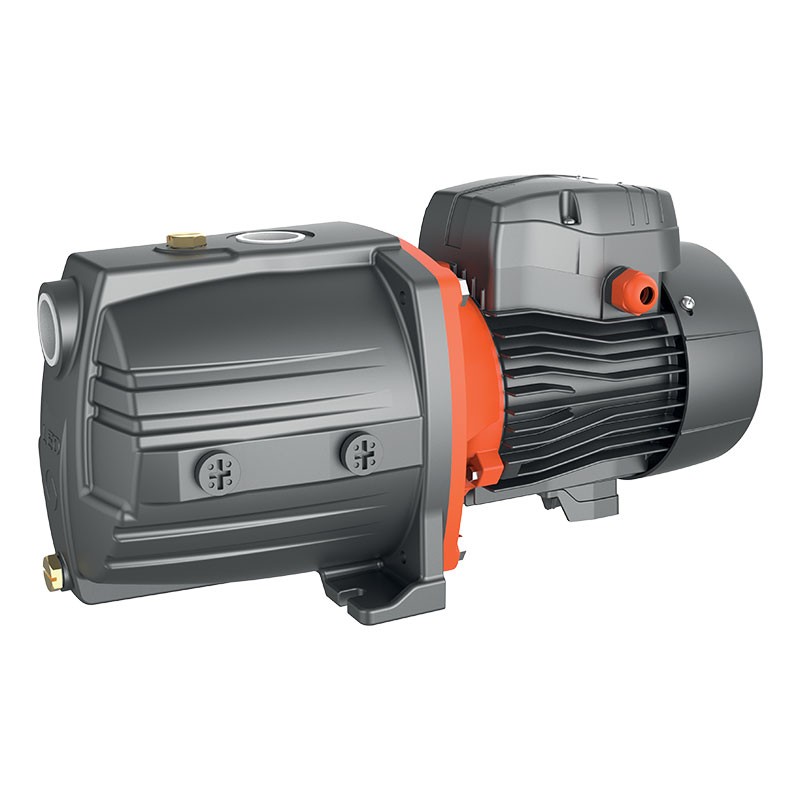

Self-priming Multistage Centrifugal Electric Pump LEO 3/4 ACm and 3/4 AC
Centrifugal electric pump pump with self-priming function can be used to transfer clean water or chemically non-aggressive liquids, even in the presence of air mixed with the sucked liquid.
Due to their silence they are particularly suitable for domestic use, especially for pressurization, coupled to the classic tanks of the autoclave systems, or to the more sophisticated latest generation inverters.
Compared to the classic centrifugal electric pumps, the self-priming electric pumps differ in:
- have a higher degree of suction
- lure itself. Therefore they can work without the need to fill the suction line. Furthermore, it is not necessary for this duct to be equipped at the base with a check valve which normally prevents the suction duct from being emptied at each stop of the pump.
Features
- Pump body in cast iron, subjected to cataphoresis treatment
- Noryl impeller
- AISI 304 shaft
- Maximum liquid temperature: + 40 ° C
- Manometric suction height up to: 8 meters
- Motor with copper winding
- Single-phase motor with thermal protection inserted in the winding
- Insulation class: F.
- Protection class: IPX4
- Maximum ambient temperature: + 40 ° C

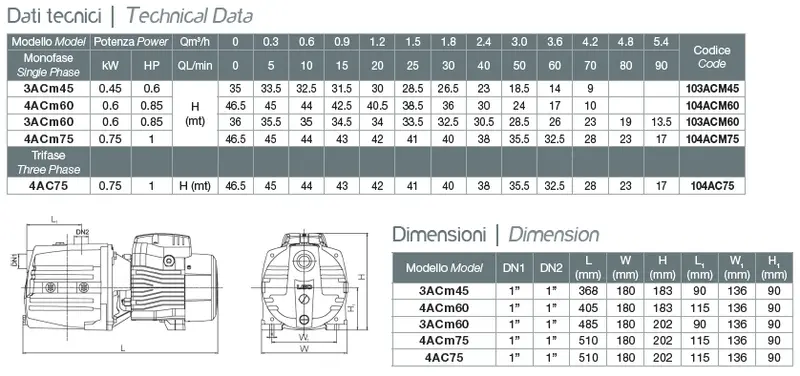

Technical data
Template | 3ACm45 | 4ACm60 | 3ACm60 | 4ACm75 | 4AC75 |
Code | 103ACM45 | 103ACM60 | 103ACM60 | 104ACM75 | 104AC75 |
Power Supply | 230V | 230V | 230V | 230V | 230V |
Nominal power | 0.45 kW - 0.6 HP | 0.6 kW - 0.85 HP | 0.6 kW - 0.85 HP | 0.75 kW - 1 HP | 0.75 kW - 1 HP |
Max Temp. Liquid | 40 ° C | 40 ° C | 40 ° C | 40 ° C | 40 ° C |
Max. Ambient Temp | 40 ° C | 40 ° C | 40 ° C | 40 ° C | 40 ° C |
Protection class | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
Dimension | 37 x 18 x 18 cm | 41 x 18 x 18 cm | 49 x 18 x 20 cm | 51 x 18 x 20 cm | 51 x 18 x 20 cm |
Weight | 13 Kg | 16 Kg | 15 Kg | 17 Kg | 17 Kg |
Technical data
Template | 3ACm45 | 4ACm60 | 3ACm60 | 4ACm75 | 4AC75 |
Code | 103ACM45 | 103ACM60 | 103ACM60 | 104ACM75 | 104AC75 |
Power Supply | 230V | 230V | 230V | 230V | 230V |
Nominal power | 0.45 kW - 0.6 HP | 0.6 kW - 0.85 HP | 0.6 kW - 0.85 HP | 0.75 kW - 1 HP | 0.75 kW - 1 HP |
Max Temp. Liquid | 40 ° C | 40 ° C | 40 ° C | 40 ° C | 40 ° C |
Max. Ambient Temp | 40 ° C | 40 ° C | 40 ° C | 40 ° C | 40 ° C |
Protection class | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
Dimension | 37 x 18 x 18 cm | 41 x 18 x 18 cm | 49 x 18 x 20 cm | 51 x 18 x 20 cm | 51 x 18 x 20 cm |
Weight | 13 Kg | 16 Kg | 15 Kg | 17 Kg | 17 Kg |
