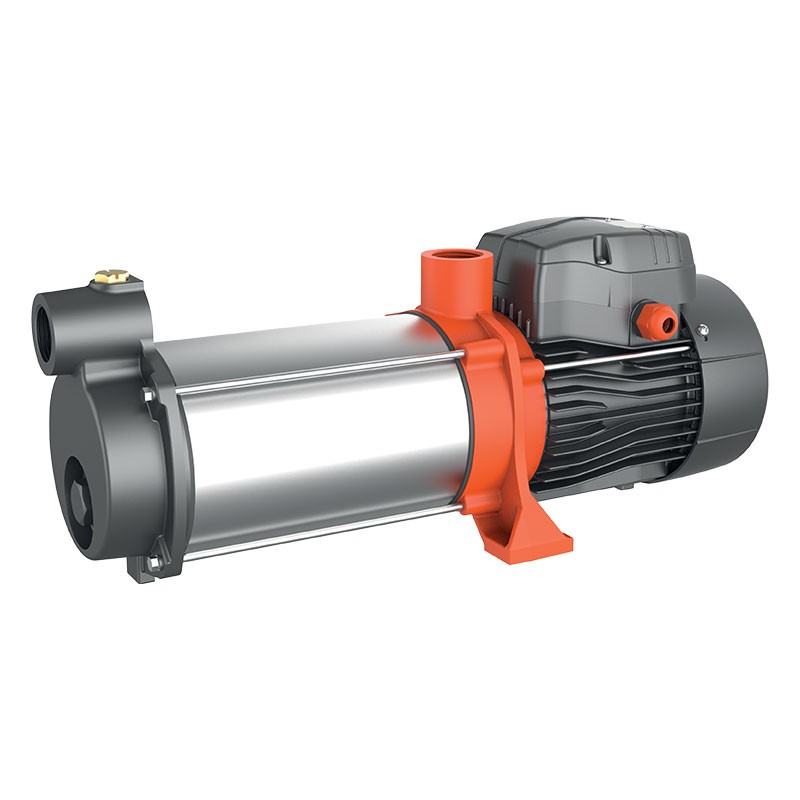

Leo ACSm
Self-priming centrifugal pump

€179.00

€146.72 tax excl.

or in 3 rates from 59.67 € with		info
or in 3 rates from 59.67 € with		info

230V - 0.9÷1.2 HP
100 L/min - Head 55 m
Ø 1" 1"

MPN: 103ACSm100S

Modello

Free shipping

Indicative delivery
Tuesday 03 June

Quantity

Quantity Discounts

from 2 to 5pz	- 5 %
more than 5	Quote Request

Warranty 2 years

14 days to change your mind

Shipped on Pallet

You can choose the Secure Payment method you prefer

Leo ACSm - Self-priming centrifugal pump

The Leo ACSm centrifugal pump is an efficient self-priming centrifugal pump designed for a wide range of industrial and domestic applications . With a compact and reliable design , the ACSm pump is able to provide optimum performance in terms of flow rate and pressure. The ACSm pump features a corrosion-resistant cast iron body that ensures long life and trouble-free operation even in harsh environments.

Operation of Leo ACSm surface electric pump

The operation of the Leo ACSm surface electric pump can be divided into several phases:

Water Suction : The electric pump is placed above the water source and a suction tube (usually called a suction foot) is immersed in the water. The electric motor is then started.
Vacuum Creation : The electric motor drives a shaft that is connected to an impeller inside the pump. This impeller rotates at high speed creating a vacuum in the suction chamber.
Water suction : Thanks to the vacuum created, water is pushed through the suction pipe towards the pump. The impeller captures the incoming water and guides it towards the pumping chamber.
Pumping Water : Once water enters the pumping chamber, the impeller continues to rotate, pushing water toward the pump outlet. The pressure generated by the rotation of the impeller pushes the water through the outlet pipe.
Water Distribution : The pumped water is then sent to the desired distribution system, such as a home water supply, irrigation system, or heating and air conditioning system.

Leo ACSM

Leo ACSM electric pump dimensions

Application

Transfer clean water or chemically non-aggressive liquids
Suitable for industrial applications
Suitable for urban and domestic water supply, skyscrapers
For long transfers

Leo ACSm - Self-priming centrifugal pump in cast iron

Pump

Pump body and support in cast iron with anti-corrosion treatment
AISI 304 shaft
Maximum liquid temperature +60°C
Manometric breathing height up to 8 m

Motor

Motor with copper winding
Single-phase motor with thermal protection inserted in the winding
Insulation class: F
Protection class: IPX4
Maximum ambient temperature: +40°C

Leo ACSm - Self-priming centrifugal pump in cast iron

Operating curve

Leo ACSm Leo pump operating curve

Dati Tecnici

Modello	3ACSm100S	4ACSm100S	5ACSm100S
Codice	103ACSm100S	104ACSm100S	105ACSm100S
Alimentazione	230V	230V	230V
Potenza nominale	0,6 kW - 0,8 HP	0,75 kW - 1 HP	0,9 kW - 1,2 HP
Portata	90 L/min	90 L/min	90 L/min
Prevalenza	35 m	45 m	55 m
Max Temp. Liquido	60 °C	60 °C	60 °C
Max. Temp. Ambiente	40 °C	40 °C	40 °C
Classe di Protezione	IPX4	IPX4	IPX4
DN1	1’’	1’’	1’’
DN2	1’’	1’’	1’’
Dimensione	42 x 18 x 17 cm	43 x 18 x 17 cm	43 x 18 x 17 cm
Peso	13,1 kg	14,1 kg	15,1 kg

Dati Tecnici

Modello	3ACSm100S	4ACSm100S	5ACSm100S
Codice	103ACSm100S	104ACSm100S	105ACSm100S
Alimentazione	230V	230V	230V
Potenza nominale	0,6 kW - 0,8 HP	0,75 kW - 1 HP	0,9 kW - 1,2 HP
Portata	90 L/min	90 L/min	90 L/min
Prevalenza	35 m	45 m	55 m
Max Temp. Liquido	60 °C	60 °C	60 °C
Max. Temp. Ambiente	40 °C	40 °C	40 °C
Classe di Protezione	IPX4	IPX4	IPX4
DN1	1’’	1’’	1’’
DN2	1’’	1’’	1’’
Dimensione	42 x 18 x 17 cm	43 x 18 x 17 cm	43 x 18 x 17 cm
Peso	13,1 kg	14,1 kg	15,1 kg
