Leo ACSm
Self-priming centrifugal pump

€179.00
€146.72 tax excl.
or in 3 rates from 59.67 € withscalapay info
or in 3 rates from 59.67 € with paypal info

230V - 0.9÷1.2 HP
100 L/min - Head 55 m
Ø 1" 1"

MPN: 103ACSm100S

Modello
Free shipping
Indicative delivery
Thursday 17 October
Quantity
library_add Quantity Discounts
from 2 to 5pz - 5 %
more than 5 Quote Request
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer

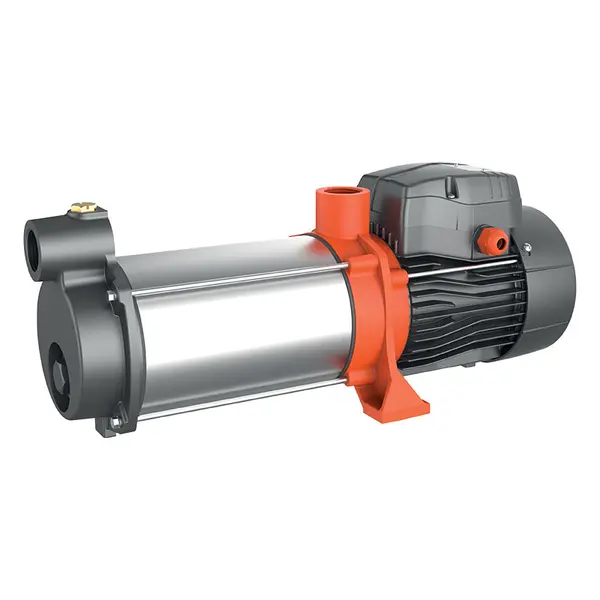

Leo ACSm - Self-priming centrifugal pump

The Leo ACSm centrifugal pump is an efficient self-priming centrifugal pump designed for a wide range of industrial and domestic applications . With a compact and reliable design , the ACSm pump is able to provide optimal performance in terms of flow and pressure. The ACSm pump features a corrosion resistant cast iron body which ensures long life and trouble free operation even in harsh environments.

Leo ACSm surface electric pump operation

The operation of the Leo ACSm surface electric pump can be divided into several phases:

  • Water suction : The electric pump is placed above the water source and a suction pipe (usually called suction foot) is immersed in the water itself. The electric motor is then started.
  • Creating a vacuum : The electric motor drives a shaft which is connected to an impeller inside the pump. This impeller rotates at high speed creating a vacuum in the suction chamber.
  • Water suction : Thanks to the vacuum created, the water is pushed through the suction pipe towards the pump. The impeller captures the incoming water and guides it to the pumping chamber.
  • Pumping water : Once water enters the pumping chamber, the impeller continues to rotate pushing the water towards the pump outlet. The pressure generated by the rotation of the impeller pushes the water through the outlet pipe.
  • Water Distribution : The pumped water is then sent to the desired distribution system, such as a domestic water supply, sprinkler system, or heating and air conditioning system.

Leo ACSm - Self-priming centrifugal pump

Leo ACSM

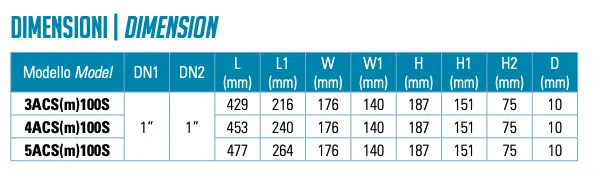

Leo ACSM electric pump dimensions

Application

  • Transfer clean water or chemically non-aggressive liquids
  • Suitable for industrial applications
  • Suitable for urban and domestic water supply, high-rise buildings
  • For long transfers

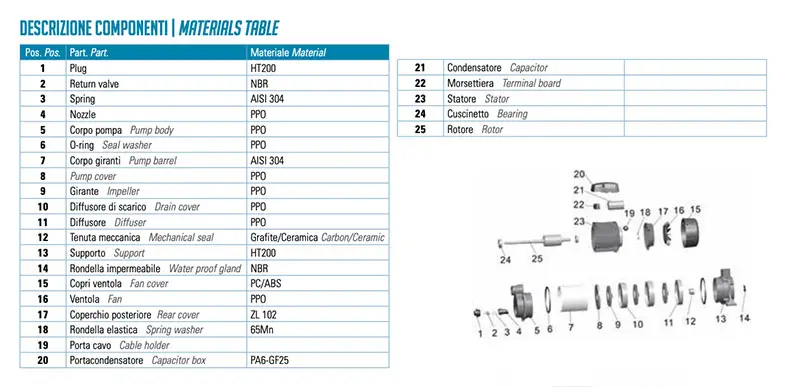

Leo ACSm - Self-priming centrifugal pump in cast iron

Pump

  • Pump body and support in cast iron with anti-corrosion treatment
  • AISI 304 shaft
  • Maximum liquid temperature +60°C
  • Manometric breathing height up to 8 m

Motor

  • Motor with copper winding
  • Single-phase motor with thermal protection inserted in the winding
  • Insulation class: F
  • Protection class: IPX4
  • Maximum ambient temperature: +40°C

Leo ACSm - Self-priming centrifugal pump in cast iron

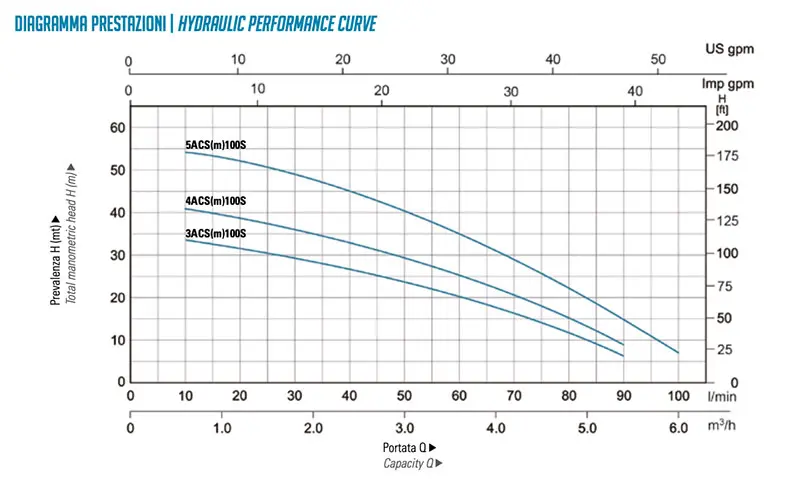

Operation curve

Leo ACSm Leo pump operating curve

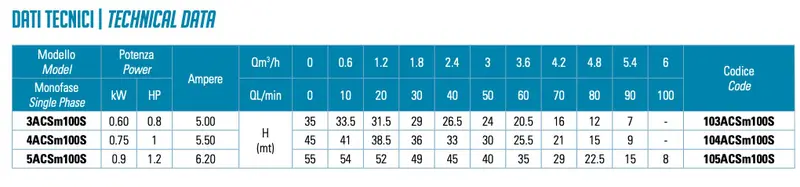

Technical data

Model 3ACSm100S 4ACSm100S 5ACSm100S
Code 103ACSm100S 104ACSm100S 105ACSm100S
Power Supply 230V 230V 230V
Nominal power 0.6kW - 0.8HP 0.75kW - 1HP 0.9kW - 1.2HP
Scope 90 L/min 90 L/min 90 L/min
Prevalence 35 m 45 m 55 m
Max Temp. Liquid 60°C 60°C 60°C
Max. Ambient Temp 40°C 40°C 40°C
Protection class IPX4 IPX4 IPX4
DN1 1'' 1'' 1''
DN2 1'' 1'' 1''
Dimension 42 x 18 x 17cm 43 x 18 x 17cm 43 x 18 x 17cm
Weight 13.1kg 14.1kg 15.1kg

Technical data

Model 3ACSm100S 4ACSm100S 5ACSm100S
Code 103ACSm100S 104ACSm100S 105ACSm100S
Power Supply 230V 230V 230V
Nominal power 0.6kW - 0.8HP 0.75kW - 1HP 0.9kW - 1.2HP
Scope 90 L/min 90 L/min 90 L/min
Prevalence 35 m 45 m 55 m
Max Temp. Liquid 60°C 60°C 60°C
Max. Ambient Temp 40°C 40°C 40°C
Protection class IPX4 IPX4 IPX4
DN1 1'' 1'' 1''
DN2 1'' 1'' 1''
Dimension 42 x 18 x 17cm 43 x 18 x 17cm 43 x 18 x 17cm
Weight 13.1kg 14.1kg 15.1kg
