Leo EDH
Centrifugal Electric Pump

€292.00
€239.34 tax excl.
or in 3 rates from 97.33 € withscalapay info
or in 3 rates from 97.33 € with paypal info
library_add more options

230V - 0.75÷1.5 HP
117 L/min - Head 53 m
Ø 1" 1 1/4"

MPN: 10EDHm2-40

Modello
Free shipping
Indicative delivery
Monday 10 March
Quantity
library_add Quantity Discounts
from 2 to 5pz - 5 %
more than 5 Quote Request
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer

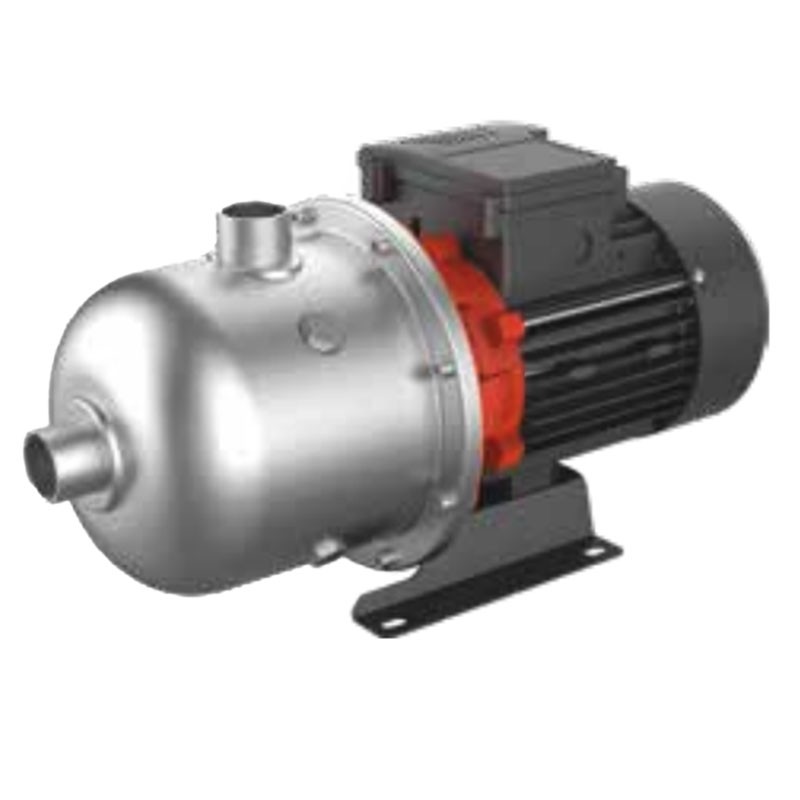

LEO EHD Multistage Centrifugal Electric Pump

Leo BP EHD is a centrifugal electric pump for transferring clean water or chemically non-aggressive liquids.

They are suitable for domestic use, automatic irrigation systems, for vegetable gardens, air conditioning and refrigeration systems, in various industrial and civil fields.

Characteristics

  • Motor shaft in AISI 304
  • Maximum liquid temperature: +85°C
  • Manometric suction height up to: 8 m
  • Motor with copper winding
  • Thermal protection
  • Insulation class: F
  • Degree of protection: IP55
  • Max. ambient temperature: +40°C

INSTRUCTIONS FOR CORRECT INSTALLATION

At the pump intake only a rigid pipe must be connected with at most one bend and one foot valve.

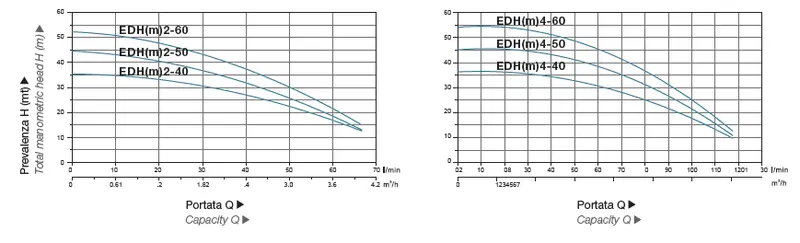

Leo EDH electric pump performance diagram

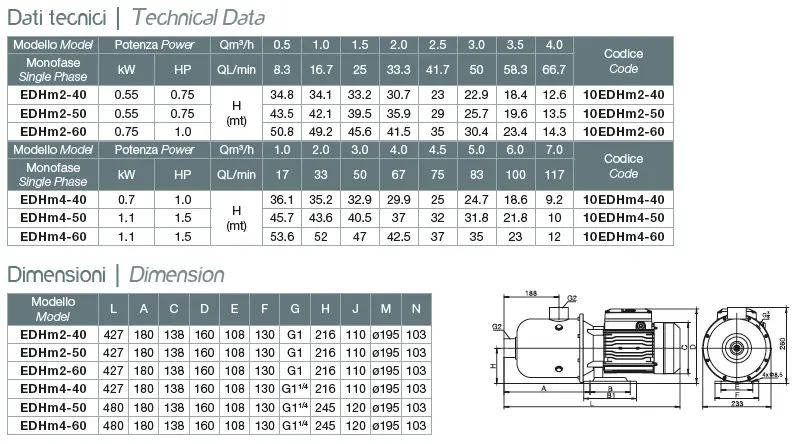

Technical data

Model EDHm2-40 EDHm2-50 EDHm2-60 EDHm4-40 EDHm4-50 EDHm4-60
Code 10EDHm2-40 10EDHm2-50 10EDHm2-60 10EDHm4-40 10EDHm4-50 10EDHm4-60
Power Supply 230V 230V 230V 230V 230V 230V
Nominal power 0.55kW - 0.75HP 0.55kW - 0.75HP 0.75kW - 1HP 0.7kW - 1HP 1.1kW - 1.5HP 1.1kW - 1.5HP
Max Temp. Liquid 85°C 85°C 85°C 85°C 85°C 85°C
Max. Ambient Temp 40°C 40°C 40°C 40°C 40°C 40°C
Protection class IP55 IP55 IP55 IP55 IP55 IP55
Dimension 46 x 22 x 27cm 46 x 22 x 27cm 46 x 22 x 27cm 46 x 22 x 27cm 51 x 22 x 30cm 51 x 22 x 30cm
Weight 12.4kg 12.8kg 13.8 kgs 13.8 kgs 18.2 kgs 18.6 kgs

Technical data

Model EDHm2-40 EDHm2-50 EDHm2-60 EDHm4-40 EDHm4-50 EDHm4-60
Code 10EDHm2-40 10EDHm2-50 10EDHm2-60 10EDHm4-40 10EDHm4-50 10EDHm4-60
Power Supply 230V 230V 230V 230V 230V 230V
Nominal power 0.55kW - 0.75HP 0.55kW - 0.75HP 0.75kW - 1HP 0.7kW - 1HP 1.1kW - 1.5HP 1.1kW - 1.5HP
Max Temp. Liquid 85°C 85°C 85°C 85°C 85°C 85°C
Max. Ambient Temp 40°C 40°C 40°C 40°C 40°C 40°C
Protection class IP55 IP55 IP55 IP55 IP55 IP55
Dimension 46 x 22 x 27cm 46 x 22 x 27cm 46 x 22 x 27cm 46 x 22 x 27cm 51 x 22 x 30cm 51 x 22 x 30cm
Weight 12.4kg 12.8kg 13.8 kgs 13.8 kgs 18.2 kgs 18.6 kgs
