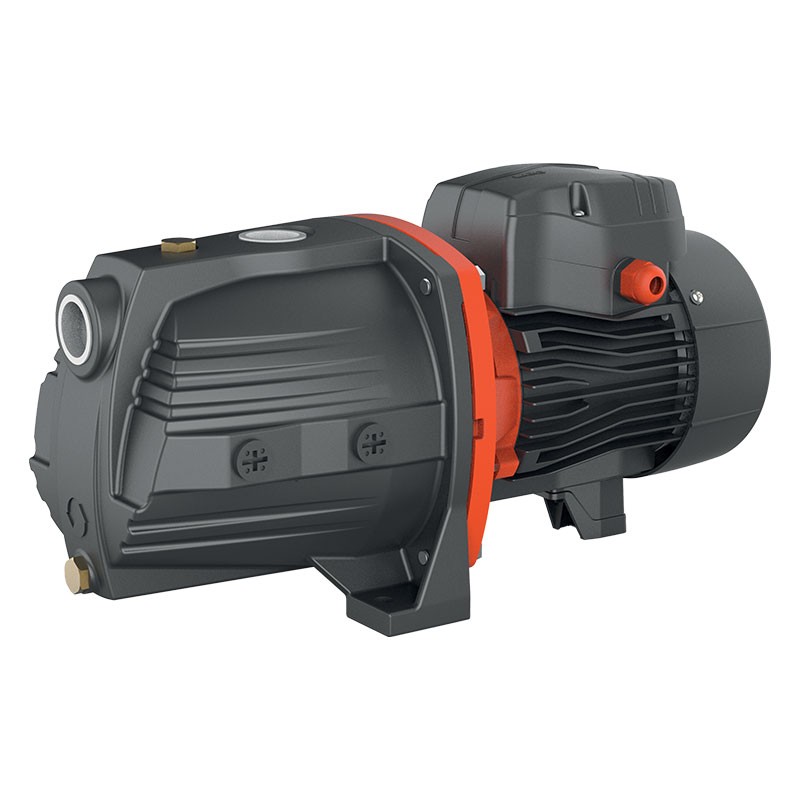

Leo AJM AJ High Head
Self-Priming Electric Pump

Leo AJM AJ - Self-priming high head electric pumps

The Leo AJ series electric pumps are self-priming jet pumps used for pumping clean water or chemically non-aggressive liquids . They are particularly suitable for lifting water from the ground and for irrigating vegetable gardens and gardens.

The peculiarity of Jet pumps is the presence of the Venturi tube which, exploiting the homonymous effect, allows to increase the speed of the liquid.

These pumps have stainless steel impellers, as well as a cast iron pump body subjected to cataphoresis treatment that allows greater protection from rust . They have a copper winding motor with integrated thermal protection, can suck liquids with temperatures up to 40 °C and have a suction height of up to 9 meters

Version with CAST IRON Body

Pump

• Cast iron pump body, subjected to catagoresis treatment
• Stainless steel impeller
• AISI 304 shaft
• Max liquid temperature +40 °C
• Suction height up to 9 m

Motor

• Motor with copper winding
• Single-phase motor with thermal protection inserted in the winding
• Insulation class F
• IPX4 class protection
• Max ambient temperature +40°C

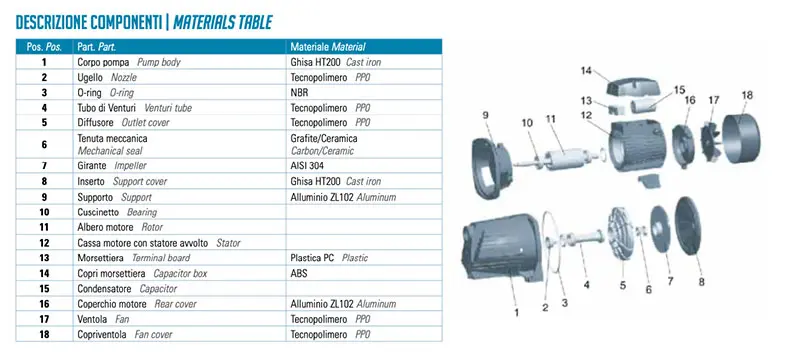

Pump Materials

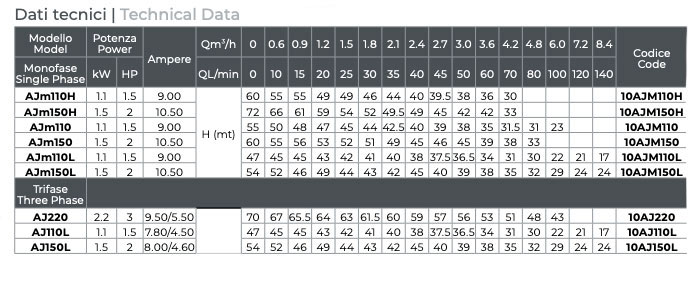

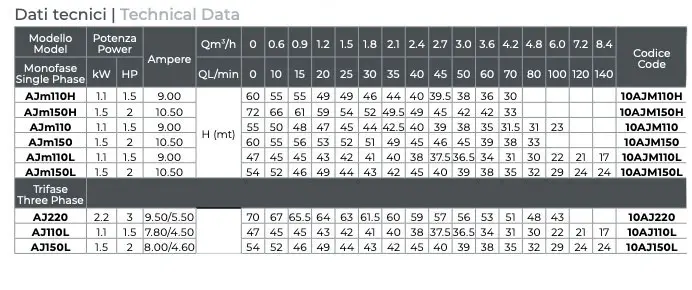

Operating curve

Applications

• Transfer clean water or chemically non-aggressive liquids
• Suitable for lifting water from the ground
• Irrigation systems for vegetable gardens and gardens
• Pressurization systems
