ABAC LN1 B5900 0 T5.5 DOL
Piston Compressor
Silenced 5.5 HP

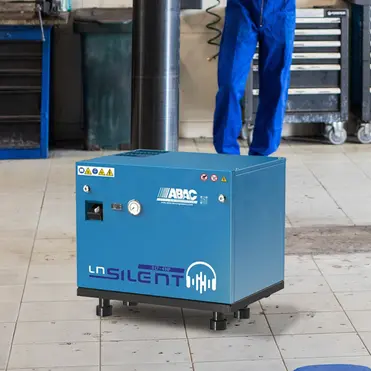

Abac LN1 B5900 0 T5,5 DOL - Piston Compressor with Belt Drive

Abac LN1 B5900 0 T5,5 DOL is a piston -operated and belt -driven air compressor that offers high performance , notable reliability and silence , features a high-efficiency cooling system and an ergonomic design .

Technical specifications

The Abac LN1 B5900 0 T5.5 DOL air compressor is three-phase (400 V) , features a B5900B pump , has a front pressure gauge , an easy-to-read integrated control panel and a DOL , the support base for the tank. The design of the Abac LN1 B5900 0 T5.5 DOL compressor is modern and also allows for easy handling .

What characterizes this compressor is its silence , in fact it emits a noise level of only 67 dB and this allows the operator to be able to use this machinery even in the vicinity of private buildings, healthcare facilities etc... All this is guaranteed by the presence of anti-vibration bearings .

The compressor is oil lubricated and has an air flow rate of 570 L/min and is capable of exerting a pressure of 11 bar , with a power of 4 kW , a motor with 1200 RPM and 5.5 HP .

Characteristics

• Belt transmission
• Silent
• Reliable
• Ergonomic design
• B5900B pump

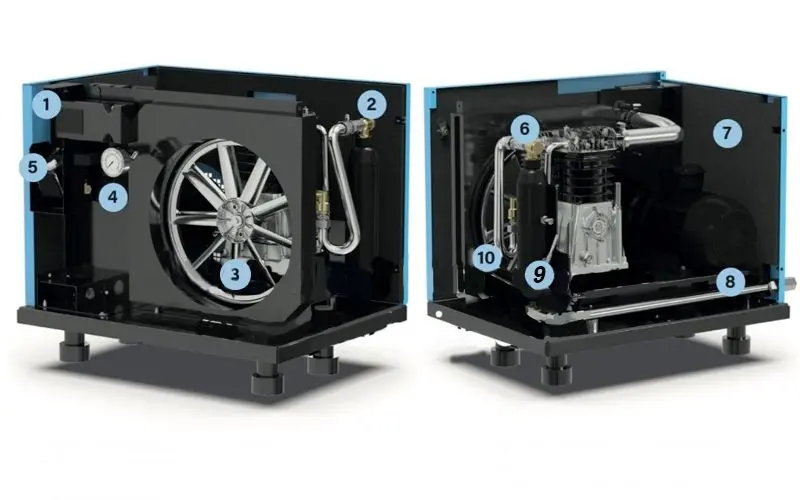

1. Superior performance, easy to use
   air filter in a cool and easily accessible area

2. Lower noise level
   Sound-absorbing foam on all panels of the structure

3. Reliability in any condition
   Efficient cooling system with large flywheel

4. Easy to read
   Pressure gauge on the front panel, ergonomically designed

5. Reliability and long life
   Pressure switch

6. Long-lasting pumps and drive components
   Non-return valve to depressurize

7. Easy access to internal components
   Removable panels for easy maintenance

8. Lower noise level
   Anti-vibration bearings

9. Lower noise level
   Shutter

10. Higher performance
    Intercooler and aftercooler
