Abac 10 bar pressure switch
for air compressors
for 4-5.5 HP compressors

Abac 10 bar 4-way pressure switch with 3/8" connection for air compressors from 4 to 5.5 HP

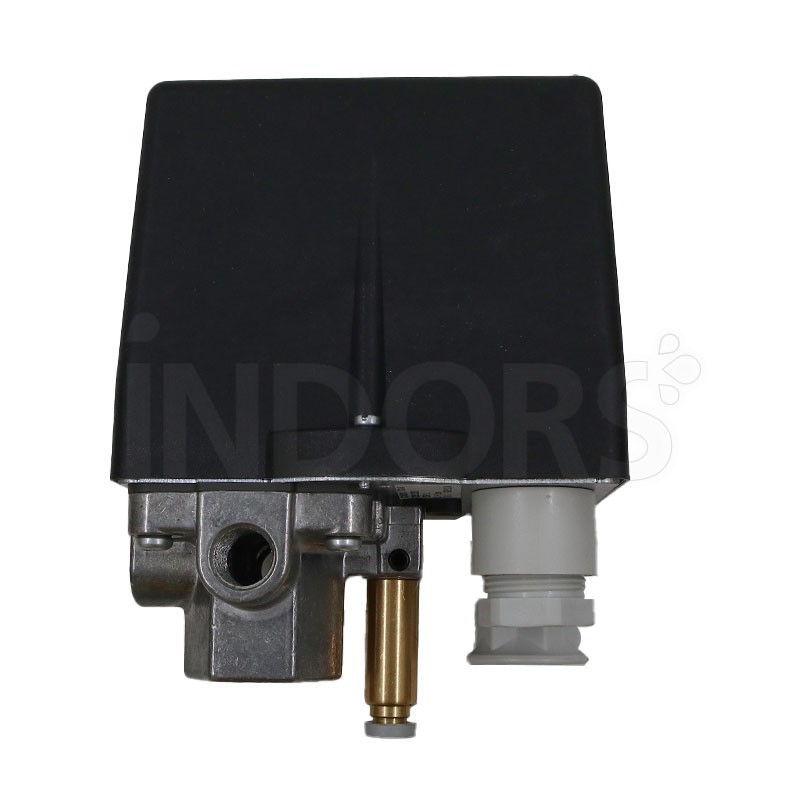

ABAC 2236112290 is a 10 bar pressure switch , used in ABAC series piston air compressors.
This compressor pressure switch is designed to monitor and regulate the pressure inside the compressor tank, automatically activating or deactivating the motor to maintain the desired pressure. The pressure switch is calibrated for a maximum value of 10 bar, ensuring safe and efficient operation of the compressor.

ABAC 2236112290 is a 4-way pressure switch with 3/8" bottom connection and 1/4" side connections . This pressure switch has a nominal current of 6.3-10 A , suitable for three-phase compressors from 4-5.5 HP .

Compatible with ABAC PRO B5900B

It's important to use original ABAC spare parts, such as the ABAC 2236112290 pressure switch, to ensure the compatibility and longevity of your compressor. This component complies with CE standards, ensuring quality and reliability.
