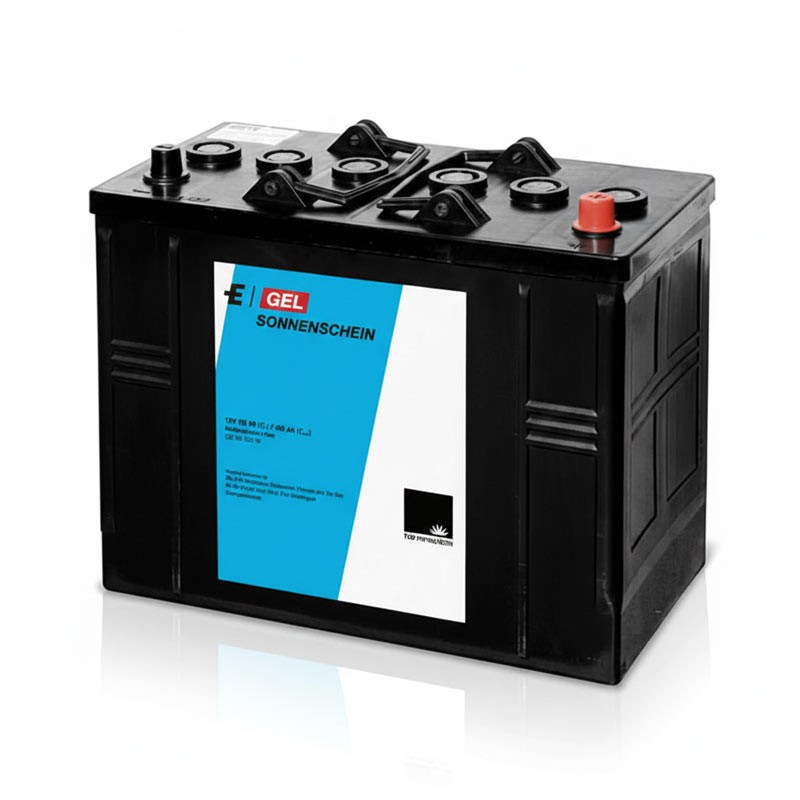

Sonnenschein GF12075V
12V 86Ah Gel Battery for Machines and Electrical Equipment
12V - 76÷86 Ah
Number of cycles 700
Full Gel Lead
Sonnenschein Italia GF12076V - 12V 86Ah Gel Battery for Electrical Machinery and Equipment
The SonnenscheinItalia GF12076V is a professional, high-capacity 12V full gel battery designed for industrial stationary applications, power backup systems, security systems, and continuous operation infrastructure. The nominal capacity of 76 Ah (C5) and 86 Ah (C20) allows for efficient discharge management in constant load configurations, ensuring voltage stability and reliability even in repeated deep cycles.
The immobilized thixotropic gel electrolyte and kneaded grid flat plate configuration ensures structural robustness, vibration resistance, and long operating life. With dimensions of 33 x 17.1 x 23.6 cm, a weight of 28.8 kg, and A-Terminal connections, this battery is designed for integration into professional systems requiring safety, uninterrupted power, and maintenance-free operation.

FUNCTIONAL SPECIFICATIONS
12V sealed full gel technology for industrial use
The 12V Sonnenschein GF12076V battery uses high-purity, gel-stabilized sulfuric acid , a solution that eliminates the risk of leaks and allows for safe installation in even unattended technical environments. Full-gel technology improves resistance to deep discharge cycles and limits electrolyte stratification, increasing electrochemical stability over time.
Capacity 76Ah C5 / 86Ah C20 for backup systems
With a certified capacity of 76 Ah (C5) and 86 Ah (C20) , the professional 12V energy storage battery is suitable for systems with constant energy demand and industrial UPS systems. The optimized discharge curve helps maintain stable voltage even under prolonged use.
Internal architecture in lead-calcium-tin alloy
The lead-calcium/tin alloy grid increases corrosion resistance and improves internal electrical conductivity. The high-purity lead active material , combined with the kneaded plate technology, helps ensure greater energy efficiency and extended cycle life.
High-security duroplastic-microporous separator
The microporous duroplastic separator ensures uniform insulation between the plates and even distribution of the gelled electrolyte, reducing the risk of internal short circuits. This technical solution increases the reliability of the full gel battery for professional stationary applications .
Reinforced structure with A-Terminal terminals
The 33 x 17.1 x 23.6 cm dimensions and 28.8 kg weight provide mechanical stability in fixed installations and industrial storage systems. A-Terminal connections ensure solid connections and electrical continuity on high-performance cabling, in line with technical and industrial standards.
Why choose a Gel battery?
- Reliable recovery even after deep discharges , without the need for immediate recharging
- Designed for daily use with repeated cycles
- Stable performance over long duration discharges
- Good operation in high temperature environments
- Immobilized electrolyte that eliminates stratification
- Low self-discharge and less maintenance required
- Positive plate protection for longer cycle life
- High charge acceptance due to low internal resistance
- High resistance to water loss with proper refill management
- Highly stable polymer separator , resistant to mechanical stress and short circuits

Areas of Use
- Caravans and Campers
- Floor cleaning machines
- Solar systems
- UPS (Uninterruptible Power Supply)
- Electric vehicles
- Nautical

Characteristics
- Full Gel lead-acid battery
- Nominal voltage 12V
- Capacity 76 Ah (C5) / 86 Ah (C20)
- 700 charge cycles for intensive use
- Poli A-Terminal
- Dimensions 33 x 17.1 x 23.6 cm
- Operating temperature from -20°C to +50°C
- High purity materials
- Duroplastic-microporous separators
Standard Equipment
- A-Terminal

Optional Equipment
- Pair of M6 conical pole adapters - code 90000012

Technical Data
| Model | GF12076V |
| Typology | Full Gel lead-acid battery |
| Nominal Voltage | 12V |
| Capacity | 76 Ah in C5 / 86 Ah in C20 |
| Number of Cycles | 700 |
| Pioli type | A-Terminal |
| Operating Temperature | -20 ÷ +50 °C |
| Dimensions | 33 x 17.1 x 23.6 cm |
| Weight | 28.8 kg |
