Haze HZY12-100EV
12V 105Ah Gel Battery for Professional Electrical Equipment

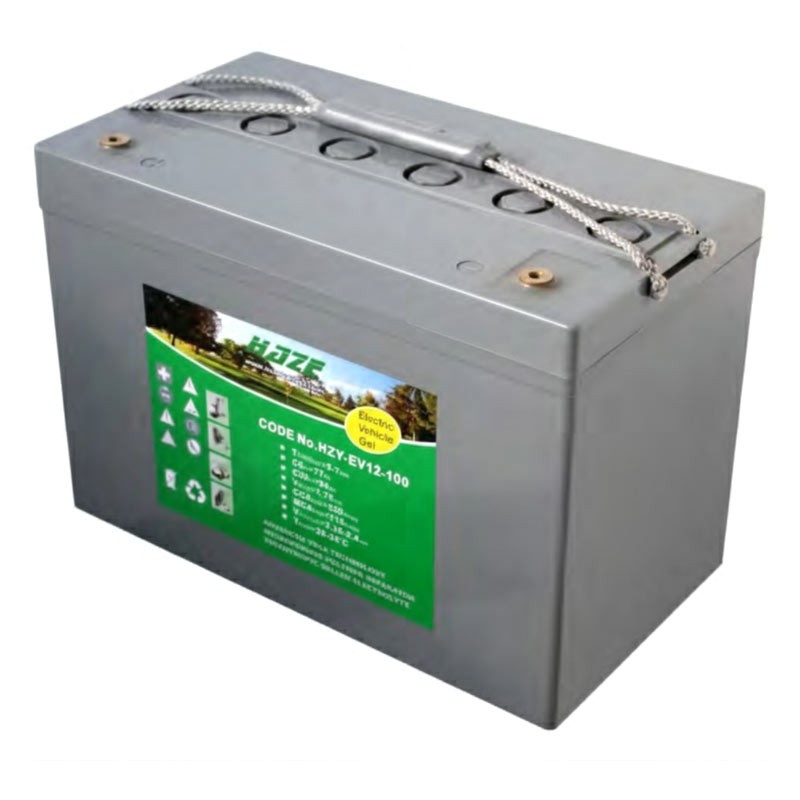

Haze HZY12-100EV - 12V 105Ah Gel Battery for Electric Cars

The Haze HZY12-100EV battery is a professional lead-acid battery with Full Gel technology, developed for industrial applications and electric vehicles that require high performance and continuous reliability. Designed to support up to 700 charge cycles , it ensures stable and constant operation even in the most intensive uses. The compact dimensions of 30.6 x 16.8 x 21.1 cm allow for practical and flexible installation, ideal for spaces with limited space. The battery is built to operate in complete safety in a temperature range of -20°C to +50°C , ensuring operational continuity even in harsh environments. Entirely Made in Italy , it represents a reliable and high-quality solution for professionals and operators in the sector.

FUNCTIONAL SPECIFICATIONS

Advanced and Safe Full Gel Technology

The HZY12-100EV integrates the latest-generation Full Gel technology, with immobilized electrolyte, Amersil microporous separators, and Degussa amorphous silica gelling agent. This construction eliminates any risk of leaks and guarantees a higher level of safety than conventional lead-acid batteries. The flat plates with a kneaded grid and the use of ultra-pure lead ensure reliable performance even during intensive use cycles.

Energy Capacity and Charging Cycles

Designed for continuous industrial applications, the battery offers a capacity of 80.9 Ah (C5) and 105 Ah (C20) , ensuring stable and constant energy delivery over time. The internal architecture is optimized to support up to 700 charge cycles , maintaining uniform voltage and high performance throughout the product's operating life.

Compact Size and Quick Connections

Measuring 30.6 x 16.8 x 21.1 cm and weighing 29.3 kg , the HZY12-100EV is easy to install even in small spaces. The left-hand positive polarity and F-M8 pins allow for quick and safe connections, compatible with major industrial electrical systems, simplifying assembly operations.

Charging Parameters and Integrated Safety

The battery is designed for precise charging parameters: maintenance between 2.27 and 2.3 VPC , cyclic charging between 2.35 and 2.4 VPC and maximum voltage of 2.4 VPC , with ripple less than 3.5% . The safety system includes an EPDM vent valve and epoxy- sealed terminals, preventing electrolyte leaks and ensuring reliability even in the most demanding applications.

Construction Quality and Made in Italy

Entirely manufactured in Italy , the HZY12-100EV features a durable ABS case and lead-calcium-tin alloy grids. The high-quality materials and manufacturing standards ensure solidity, chemical stability, and long-lasting performance, making this battery a reliable and professional solution for industrial applications.

Why choose a Gel battery?

• Reliable recovery even after deep discharges , without the need for immediate recharging
• Designed for daily use with repeated cycles
• Stable performance over long duration discharges
• Good operation in high temperature environments
• Immobilized electrolyte that eliminates stratification
• Low self-discharge and less maintenance required
• Positive plate protection for longer cycle life
• High charge acceptance due to low internal resistance
• High resistance to water loss with proper refill management
• Highly stable polymer separator , resistant to mechanical stress and short circuits

Areas of Use

• Caravans and Campers

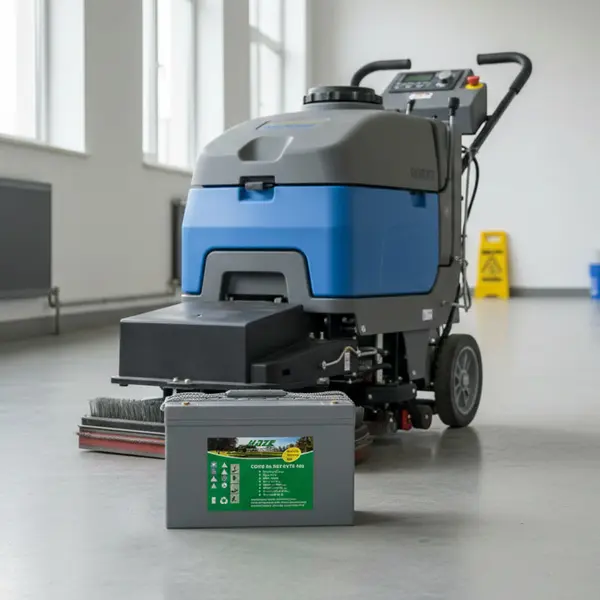

• Floor cleaning machines
• Solar systems
• UPS (Uninterruptible Power Supply)
• Electric vehicles
• Nautical

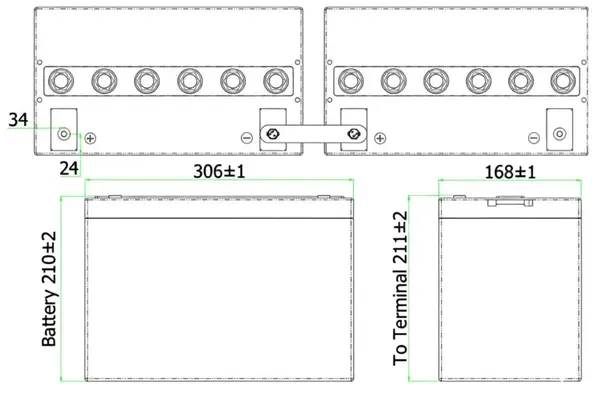

Dimensions

Characteristics

• Full Gel lead-acid battery
• Nominal voltage 12V
• Capacity 80.9 Ah (C5) / 105 Ah (C20)
• 700 charge cycles for intensive use
• F-M8 poles with positive polarity on the left
• Dimensions 30.6 x 16.8 x 21.1 cm
• Operating temperature from -20°C to +50°C
• High purity materials
• Highly stable polymer separators
• Made in Italy

Standard Equipment

• FM8 Terminal

Optional Equipment

• Pair of M8 conical pole adapters - code 90000013
