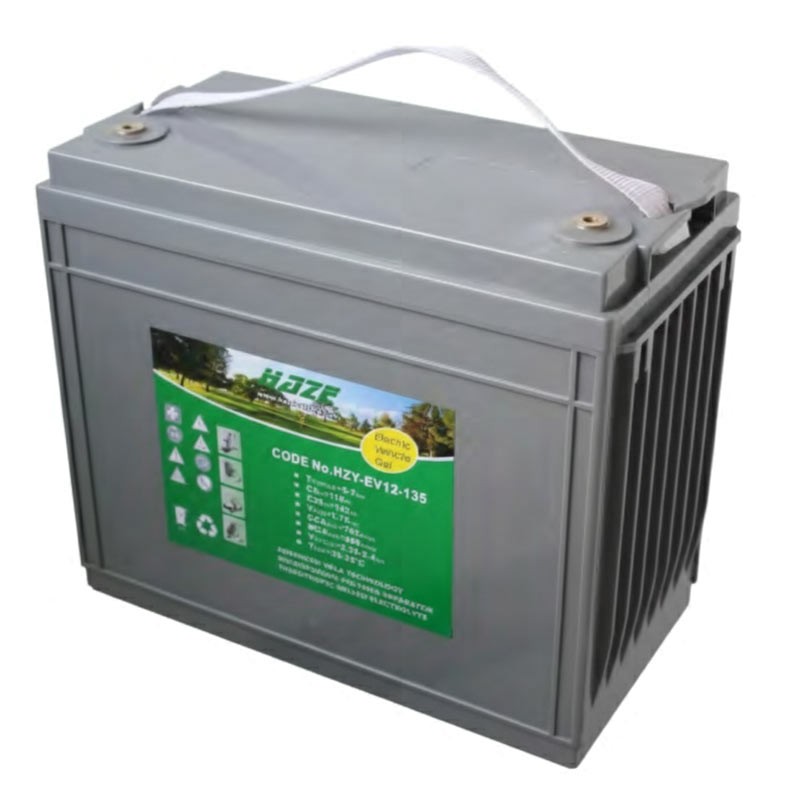

Accu Italia HZY12-135EV
12V 162Ah Gel Battery for Electric Vehicles and Equipment

Accu Italia HZY12-135EV - 12V 162Ah Gel Battery for Electric Vehicles and Equipment

The Accu Italia HZY12-135EV is an industrial lead-acid battery with Full Gel technology, developed for use in professional systems and electric vehicles that require continuous performance and maximum operational reliability. The design allows for up to 700 charging cycles , ensuring consistent performance over time even in high-intensity applications. The compact size, measuring 34.2 x 17.3 x 28.2 cm , allows for easy and flexible installation, making it ideal in contexts where available space is limited. The construction structure allows for completely safe operation in a temperature range between -20°C and +50°C , ensuring operational stability even in complex environmental conditions. Produced entirely in Italy , this battery stands out for its high quality standards and is designed to meet the needs of professionals and operators in the industrial sector.

FUNCTIONAL SPECIFICATIONS

Safe and High-Performance Full Gel Technology

The HZY12-135EV uses a new generation Full Gel technology, based on a gel-fixed electrolyte, the use of Amersil microporous separators and a Degussa amorphous silica gelling agent. This construction solution prevents any leakage and offers a significantly higher safety standard than conventional lead-acid batteries. The flat plates with a kneaded grid, combined with extremely high-purity lead, allow for constant performance even under heavy operating cycles.

Capacity and Duration of Charging Cycles

Designed for continuous industrial applications, the battery offers a capacity of 133 Ah (C5) and 162 Ah (C20) , ensuring stable energy delivery over time. The internal architecture is designed to withstand up to 700 charging cycles , ensuring regular voltage and reliable performance throughout the product's entire life cycle.

Compact Size and Quick Connections

Measuring 34.2 x 17.3 x 28.2 cm and weighing 43.7 kg , the HZY12-135EV is easily integrated even in limited space. The left-side positive polarity configuration with F-M8 terminals allows for quick and safe connections, fully compatible with major industrial electrical systems, reducing installation time.

Charging Parameters and Operational Safety

The battery is designed to operate with controlled charging parameters: float voltage between 2.27 and 2.3 VPC , cyclic charging between 2.35 and 2.4 VPC and maximum value equal to 2.4 VPC , with a ripple less than 3.5% . The protection system is completed by an EPDM vent valve and terminals sealed with epoxy resin , which prevent electrolyte leakage and guarantee reliability even in the most demanding applications.

Italian Construction Quality and Production

Made entirely in Italy , the HZY12-135EV uses a high-strength ABS container and lead-calcium-tin alloy grids. The high-quality materials and rigorous production controls ensure mechanical strength, chemical stability, and long-lasting performance, making this battery a professional choice for industrial use.

Why choose a Gel battery?

• Reliable recovery even after deep discharges , without the need for immediate recharging
• Designed for daily use with repeated cycles
• Stable performance over long duration discharges
• Good operation in high temperature environments
• Immobilized electrolyte that eliminates stratification
• Low self-discharge and less maintenance required
• Positive plate protection for longer cycle life
• High charge acceptance due to low internal resistance
• High resistance to water loss with proper refill management
• Highly stable polymer separator , resistant to mechanical stress and short circuits

Areas of Use

• Caravans and Campers
• Floor cleaning machines
• Solar systems
• UPS (Uninterruptible Power Supply)
• Electric vehicles
• Nautical

Dimensions

Characteristics

• Full Gel lead-acid battery
• Nominal voltage 12V
• Capacity 133 Ah (C5) / 162 Ah (C20)
• 700 charge cycles for intensive use
• F-M8 poles with positive polarity on the left
• Dimensions 34.2 x 17.3 x 28.2 cm
• Operating temperature from -20°C to +50°C
• High purity materials
• Highly stable polymer separators
• Made in Italy

Standard Equipment

• FM8 Terminal

Optional Equipment

• Pair of M8 conical pole adapters - code 90000013
