Leo 50SWUm
Submersible Pump with Shredder
Max 50 mm
230V - 1 HP
200 L/m - Head 13 m
Ø 2''
€329.00
€269.67 tax excl.
Warranty 2 years
Shipped on Pallet

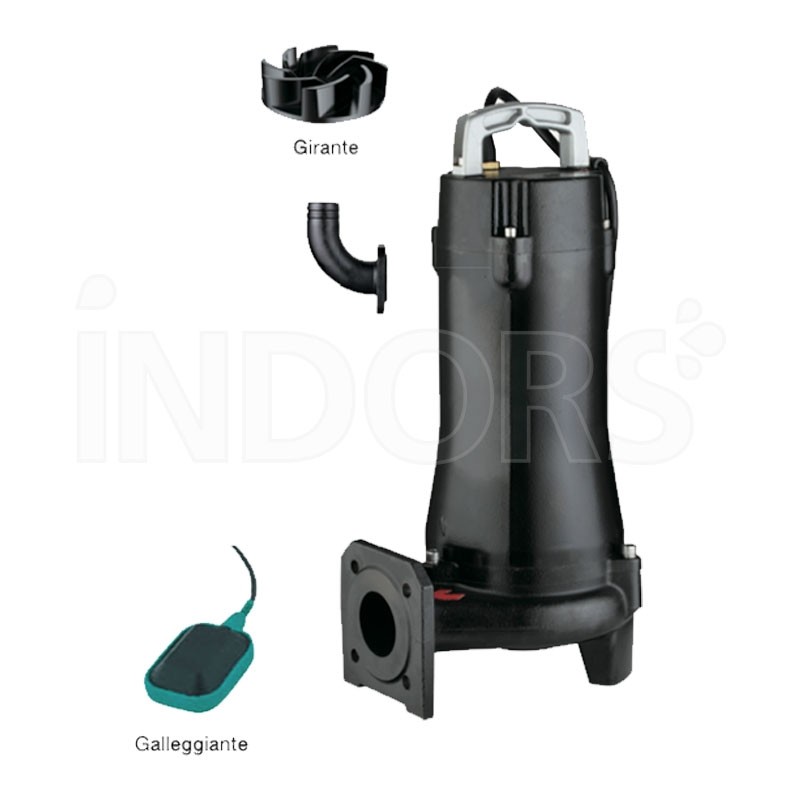

Leo 50SWUm drainage electric pump
The LEO 50SWUm electric pump with cast iron body can be used for draining waste water , with solid bodies up to a diameter of 50 mm .
APPLICATION
Robustly constructed submersible pumps, made of cast iron, suitable for conveying wastewater and wastewater with suspended solids, specifically:
• Industrial waste water with suspended filiform components.
• Waste water from civil systems classified as grey.
• Black water from third chambers of septic tanks
• Waste water in industrial plants in the food, textile and pharmaceutical sectors.
• Chemically (pH 4-10) or mechanically aggressive wastewater (presence of significant quantities of sand)
Leo 50SWUm is a cast iron drainage pump , with a maximum depth of 5 m .
Functional specifications
Features and Engine
- Single-phase 2-pole motor 50 Hz
- Insulation Class F
- Protection Class IPX8
- Semi-open VORTEX impeller
- Float as standard
- Double mechanical seal
- 50 mm outlet
Limits of use
- Maximum temperature of pumped liquid: 0-40 °C
- Maximum diving depth 5 m
- Maximum pH value of the liquid: 4-10

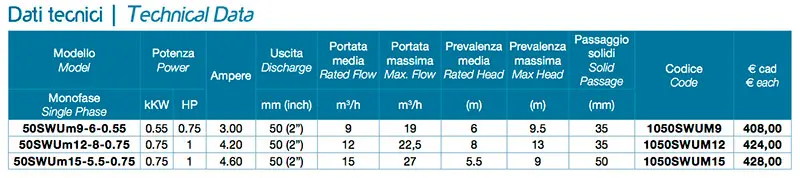

Dati Tecnici
| Modello | 50SWUm9-6-0.55 | 50SWUm12-8-0.75 | 50SWUm15-5.5-0.75 |
| Codice | 1050SWUM9 | 1050SWUM12 | 1050SWUM15 |
| Potenza Nominale | 0,55 kW - 0,75 HP | 0,75 kW - 1 HP | 0,75 kW - 1 HP |
| Diametro Mandata | Ø 2’’ | Ø 2’’ | Ø 2’’ |
| Diametro Max Corpi Soldi | 50 mm | 50 mm | 50 mm |
| Passaggio Solidi | 35 mm | 35 mm | 35 mm |
| Prevalenza | 9,5 m | 13 m | 9 m |
| Portata Liquido | 19 m³/h | 22,5 m³/h | 27 m³/h |
| Max Temp. Liquido | 40 °C | 40 °C | 40 °C |
| Classe Isolamento | F | F | F |
| Materiale Corpo Pompa | Ghisa | Ghisa | Ghisa |
| Dimensioni | 19 x 48 x 16 cm | 19 x 48 x 16 cm | 20 x 50 x 16 cm |
Dati Tecnici
| Modello | 50SWUm9-6-0.55 | 50SWUm12-8-0.75 | 50SWUm15-5.5-0.75 |
| Codice | 1050SWUM9 | 1050SWUM12 | 1050SWUM15 |
| Potenza Nominale | 0,55 kW - 0,75 HP | 0,75 kW - 1 HP | 0,75 kW - 1 HP |
| Diametro Mandata | Ø 2’’ | Ø 2’’ | Ø 2’’ |
| Diametro Max Corpi Soldi | 50 mm | 50 mm | 50 mm |
| Passaggio Solidi | 35 mm | 35 mm | 35 mm |
| Prevalenza | 9,5 m | 13 m | 9 m |
| Portata Liquido | 19 m³/h | 22,5 m³/h | 27 m³/h |
| Max Temp. Liquido | 40 °C | 40 °C | 40 °C |
| Classe Isolamento | F | F | F |
| Materiale Corpo Pompa | Ghisa | Ghisa | Ghisa |
| Dimensioni | 19 x 48 x 16 cm | 19 x 48 x 16 cm | 20 x 50 x 16 cm |
