JBM 54733
53 L Ultrasonic Cleaner
for Industrial Components

JBM 54733 - Professional 53 L Ultrasonic Cleaner for Industrial Components

The JBM 54733 is a 53L ultrasonic cleaner designed for the deep cleaning of mechanical, industrial, and technical components using high-frequency ultrasonic technology. This device is intended for professional environments such as mechanical workshops, laboratories, maintenance departments, and industrial sectors where thorough contaminant removal is required, even in hard-to-reach areas.

Thanks to the combination of adjustable power up to 1500W , 40 kHz ultrasonic frequency , and a spacious 53 L tank , this cavitation cleaner guarantees a uniform and thorough cleaning action. The presence of 18 transducers ensures even distribution of ultrasonic waves, while digital temperature and timer control allow for precise management of washing cycles.

FUNCTIONAL SPECIFICATIONS

High-precision 40 kHz ultrasonic technology

The JBM 54733 's 40 kHz ultrasonic cleaning system generates high-frequency vibrations in the cleaning fluid, creating microbubbles that implode upon contact with surfaces. This process effectively removes oils, greases, carbon residues, and impurities, even from complex geometries and internal cavities, ensuring uniform, non-abrasive cleaning.

Advanced cavitation process

The principle of ultrasonic cavitation allows for the controlled formation and implosion of microbubbles in the cleaning liquid. This physical phenomenon allows the detergent to penetrate deeply into surfaces that are difficult to reach with traditional methods, making the system ideal for complex mechanical components and precision parts.

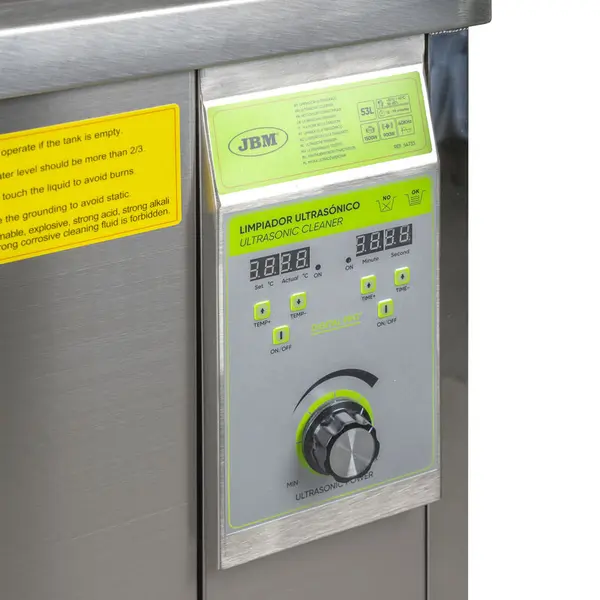

Adjustable digital temperature control

The integrated thermal regulation system allows you to set the operating temperature between 20 and 95°C , optimizing the effectiveness of the detergents used. Temperature control improves the performance of industrial ultrasonic cleaning, accelerating the dissolution of the most stubborn contaminants.

Programmable timer for washing cycles

The device is equipped with an adjustable timer from 1 to 99 minutes, allowing you to customize cleaning cycles based on the level of dirt and the type of parts being cleaned. This feature makes the professional ultrasonic cleaner extremely flexible and suitable for various industrial applications.

TECHNICAL SPECIFICATIONS

The JBM 54733 53L ultrasonic cleaner is powered by a universal voltage between 110 and 220V with a 50Hz mains frequency , making it compatible with a variety of operating environments. The adjustable power between 900 and 1500W allows you to modulate the cleaning intensity based on the load and type of contamination.

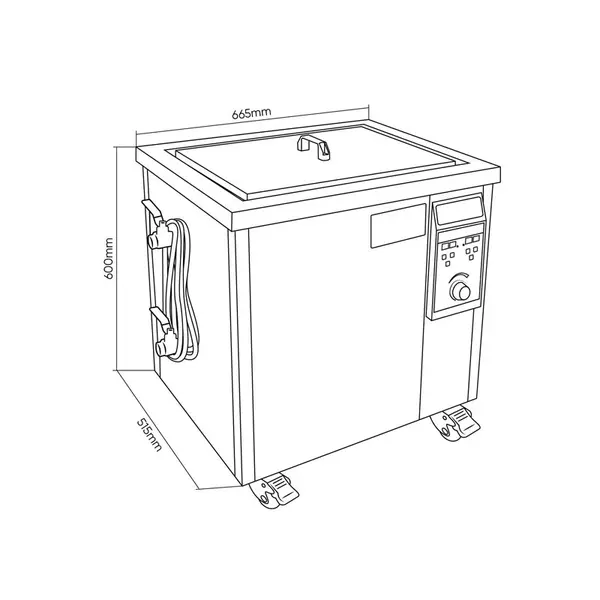

From a construction standpoint, the machine integrates 18 ultrasonic transducers that ensure uniform distribution of the waves inside the tank. The 53 L SUS304 stainless steel tank with dimensions of 50 x 35 x 30 cm guarantees corrosion resistance and long operating life. The overall dimensions of the unit are 66.5 x 51.5 x 60 cm , with a total weight of 95 kg , indicating a robust structure designed for continuous industrial use.

CHARACTERISTICS

• Professional ultrasonic cleaner for industrial and technical use
• 40 kHz cavitation technology for deep, non-invasive cleansing
• 53 L high capacity tank for large components
• 18 ultrasonic transducers for uniform wave distribution
• Adjustable power 900–1500W for different levels of dirt
• Universal 110–220V power supply compatible with various operating environments
• Digital control with programmable 1–99 minute timer
• Temperature regulation up to 95°C for maximum cleaning effectiveness
• Corrosion-resistant SUS304 stainless steel tub
• Robust industrial construction weighing 95kg for heavy duty use
