JBM 54877
Fuel Transfer Pump
Diesel and AUS32

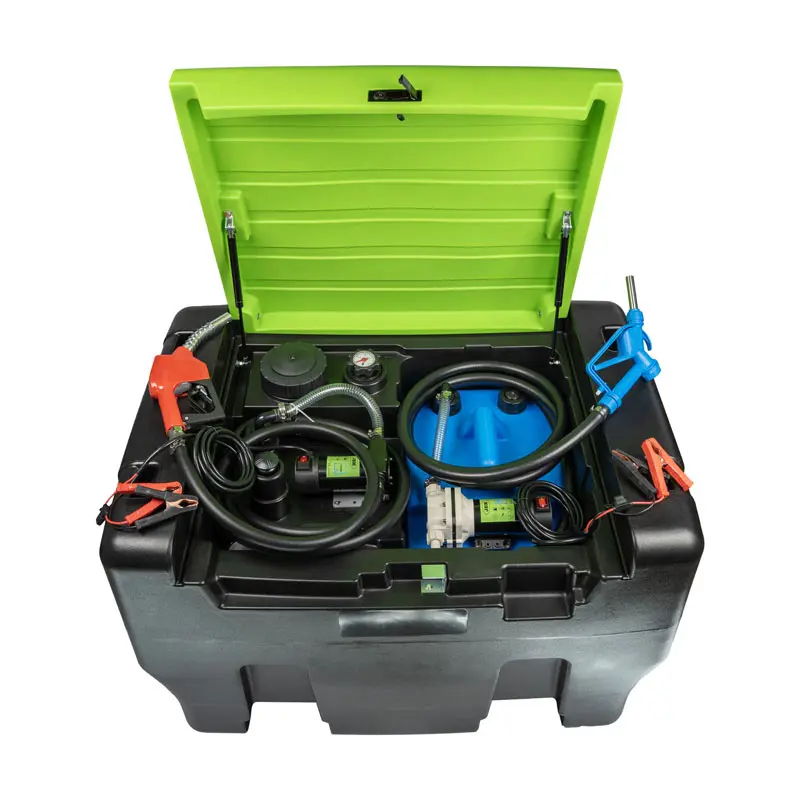

JBM 54877 - Diesel Fuel Transfer Pump and AUS32

The JBM 54877 is a diesel and AUS32 fuel transfer pump designed for refueling and handling fluids in industrial, agricultural, and logistics applications. This dual-capacity, integrated tank system is designed to ensure operational continuity and maximum efficiency in situations where diesel and AUS32 (AdBlue) solution must be handled simultaneously.

Thanks to the 12V DC power supply , this unit combines convenience and operational autonomy, offering a flow rate of up to 40 L/min for diesel and 17 L/min for AUS32 . The system integrates an automatic fuel pump and a diaphragm pump for the urea solution, ensuring controlled, safe dispensing and minimising waste and spills.

FUNCTIONAL SPECIFICATIONS

Integrated double storage system

The JBM 54877 is designed with a 330L combined diesel tank and a 50L dedicated AUS32 tank . This allows two separate fluids to be handled in a single compact unit, optimizing operating space and reducing the need for separate systems.

High flow diesel pump with automatic shut-off

The diesel compartment is equipped with a 12V DC pump capable of delivering up to 40 L/min . The system features an automatic nozzle with Automatic Stop function , designed to interrupt delivery when the fill level is reached, improving safety and preventing accidental spills.

AUS32 membrane system for precise dosing

The AUS32 (AdBlue) circuit uses a 12V diaphragm pump with a maximum flow rate of 17 L/min . This configuration is designed to ensure a constant and precise flow, maintaining the integrity of the fluid and ensuring controlled dispensing via a manual nozzle.

Operational control and supply safety

The system integrates separate nozzles for each fluid: automatic for diesel and manual for AUS32. This technical choice allows for high levels of operational safety, reducing user errors and ensuring direct flow control for the most sensitive liquids.

Structure with safety lock and tank protection

The tank is equipped with a lockable cap , a key feature for protecting stored fluids from contamination and unauthorized access. This feature makes the machine suitable for unsupervised work environments or construction sites.

TECHNICAL SPECIFICATIONS

The JBM 54877 diesel and AUS32 fuel transfer pump is powered by a 12V DC system, with direct battery connection via a 4m cable with clamps included . The diesel compartment is supported by a 180W pump , while the AUS32 circuit uses a dedicated 120W pump, designed to ensure stability and precision in fluid movement.

In terms of performance, the system reaches a working pressure of 2.75 bar , ensuring constant delivery even over long distances thanks to the 4-meter hoses for each fluid. The overall system capacity is 380 L in total , divided between 330 L for diesel and 50 L for AUS32. The compact dimensions of 114.5 x 78.5 x 70.5 cm and weight of 68 kg make the unit robust yet easily positioned in mobile operating environments.

CHARACTERISTICS

• Professional AUS32 diesel fuel transfer pump
• Integrated double tank system 330L + 50L
• 12V DC power supply with battery connection
• Diesel flow rate up to 40 L/min with high efficiency
• AUS32 flow rate up to 17 L/min with diaphragm pump
• Automatic diesel nozzle with Automatic Stop function
• Manual AUS32 gun for precise flow control
• Compact structure for industrial and agricultural use
• Working pressure 2.75 bar for constant delivery
• 4-meter delivery hoses for maximum operational flexibility
• Locking system for added security
• Weight 68 kg with reinforced structure for professional use
