JBM 55085
Air Conditioning Refilling Machine
R134a and R1234yf

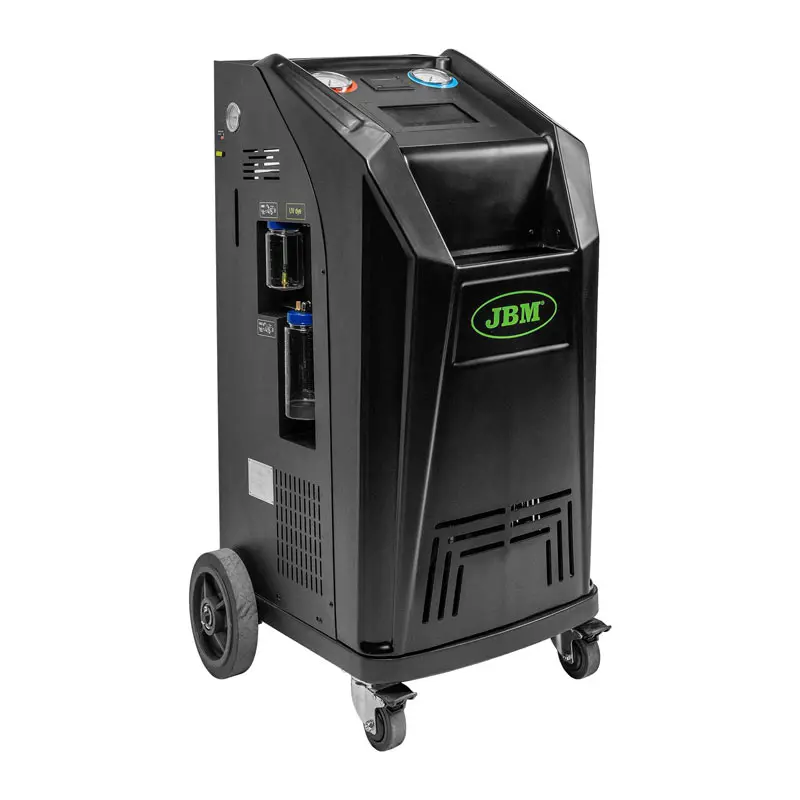

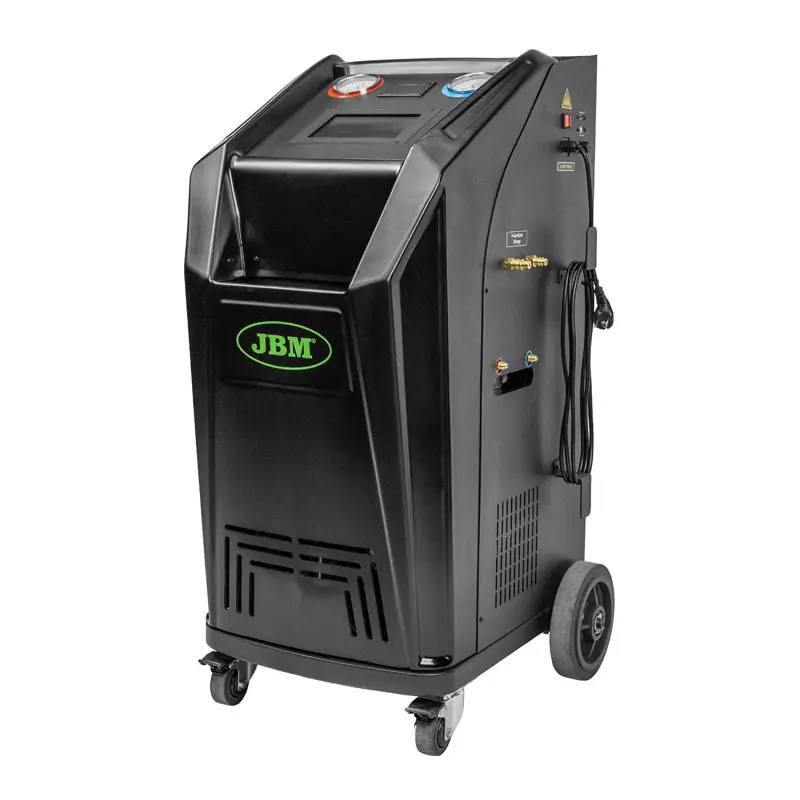

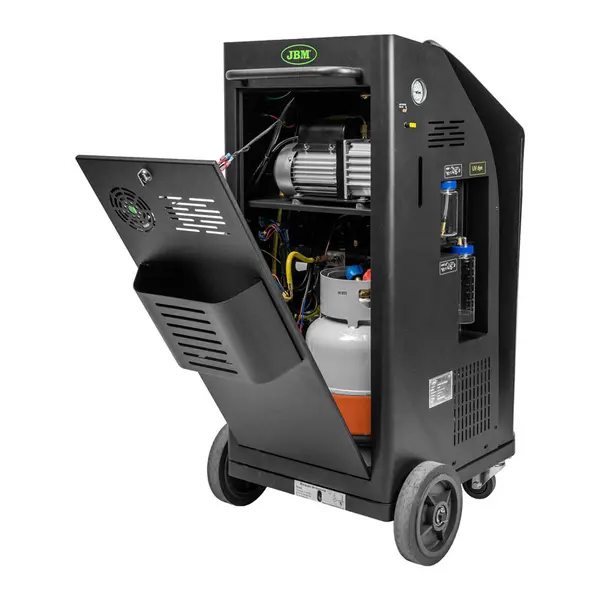

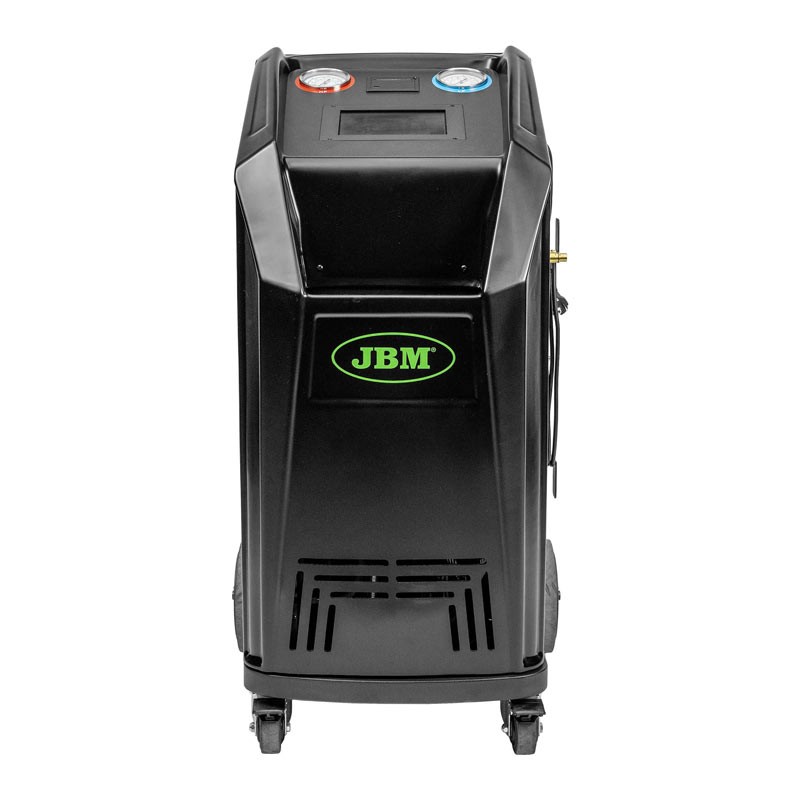

JBM 55085 - Air Conditioning Recharging Machine for R134A and R1234YF Refrigerants

The JBM 55085 is a professional automotive air conditioning recharging station designed to perform all maintenance operations on vehicle A/C circuits in a complete and automated manner. Ideal for mechanical workshops, service centers, auto electricians, and automotive professionals, this machine integrates refrigerant recovery, vacuum, leak testing, oil injection, and refrigerant gas recharging functions in a single, highly efficient solution.

Thanks to its compatibility with R134A and R1234YF refrigerants, its large 7-inch touchscreen , and the presence of an internal heated cylinder that speeds up charging operations, the JBM 55085 ensures rapid, precise, and documentable interventions. The system can operate in fully automatic mode or allow the execution of individual operating phases, offering maximum flexibility in daily workshop operations.

Watch the video

Functional Specifications

High Efficiency Refrigerant Recovery

The machine is designed to recover refrigerant from A/C circuits with a 95% recovery rate, reducing waste and maximizing gas recovery. This feature allows for compliance with environmental regulations and optimizes workshop management costs.

A/C Circuit Quick Charge

The presence of the heated internal cylinder significantly increases the refrigerant transfer rate during the charging phase. The machine reaches a maximum speed of 2 kg/min , reducing intervention times and increasing productivity in air conditioning maintenance operations.

Professional Vacuum System

The 60 L/min vacuum pump effectively removes air and moisture from the refrigerant circuit before recharging. This operation is essential to maintain the efficiency of the A/C system, prevent contamination, and ensure proper system operation over time.

Integrated Leak Test

The leak test function allows you to check for leaks within the circuit before recharging the refrigerant. This preventive check increases the reliability of the intervention and allows for the timely identification of anomalies that could compromise the system's performance.

Automatic or Manual Management of Operations

The JBM 55085 can operate in fully automatic mode, autonomously managing all process phases, or allow the operator to individually select recovery, vacuum, testing, oil injection, and recharging operations. This flexibility makes it suitable for both standardized procedures and specialized interventions.

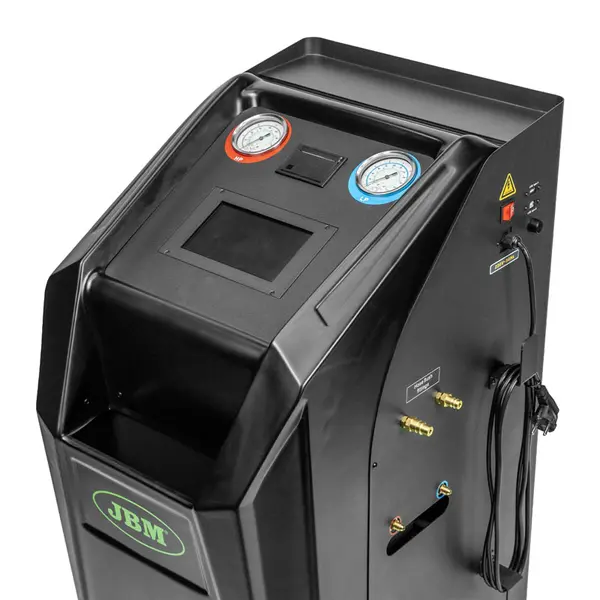

Intuitive 7-inch Touchscreen

The interface is managed via a modern 7" touchscreen display , designed to simplify use of the machine and speed up navigation between the various operating functions. Parameter consultation and procedure configuration are immediate even during intensive use.

Database Updatable via USB

The system integrates a database that can be updated via USB , allowing the workshop to always keep vehicle information and operating procedures up to date. The USB flash drive and connection cable are included as standard.

Recording and Printing of Interventions

The integrated printer allows you to generate detailed reports of your operations. Workshop data can be configured directly on the machine, allowing you to provide your customer with complete and professional documentation of every job performed.

Advanced Refrigerant Filtration

The high capacity filter drier is designed to filter up to 100 kg of refrigerant , helping to remove impurities and humidity from the circuit and improving the overall quality of recovery and recharging operations.

Non-Condensable Gas Management

The machine integrates a manual purge function for non-condensable gases , which is essential for maintaining the high purity of the recovered refrigerant and ensuring optimal performance during subsequent recharging operations.

Technical Specifications

JBM 55085 is powered by 220V ±10% with a frequency of 50/60Hz and has a power consumption of 700W . The system uses a compressor with a power between 3 and 8 HP , ensuring high operational performance in refrigerant recovery and management activities. The machine is designed to work in environments with temperatures between 0°C and 50°C , ensuring reliability even in intensive operating conditions.

In terms of performance, the station offers a maximum refrigerant charging speed of 2 kg/min , a vacuum pump capacity of 60 L/min and a maximum operating pressure of 20 bar . The integrated refrigerant tank has a 10 L capacity , while the dedicated oil management containers provide 250 ml for new oil and 400 ml for used oil . The structure measures 66 x 58.3 x 105.8 cm and has a total weight of 88 kg , characteristics that provide sturdiness and stability during professional use.

Characteristics

• Professional machine for recharging vehicle air conditioning
• Compatible with R134A and R1234YF refrigerants
• Refrigerant recovery with 95% efficiency
• 7-inch touchscreen
• Automatic and manual mode
• Integrated leak test function
• 60 L/min vacuum pump
• Charging speed up to 2 kg/min
• Internal heated cylinder for faster charging
• 10-liter coolant tank
• Filter drier with filtering capacity of up to 100 kg of refrigerant
• Vehicle database updateable via USB
• Integrated printer for intervention reports
• Automatic maintenance reminder
• Manual purging of non-condensable gases
• Maximum operating pressure 20 bar
• Power supply 220V ±10%, 50/60Hz
• Power consumption 700W
• Compressor from 3 to 8 HP
• Connections and adapters included for R134A and R1234YF

Standard Equipment
