JBM 565 Series / 587 Series
Workshop Workbench
172 Tools Included

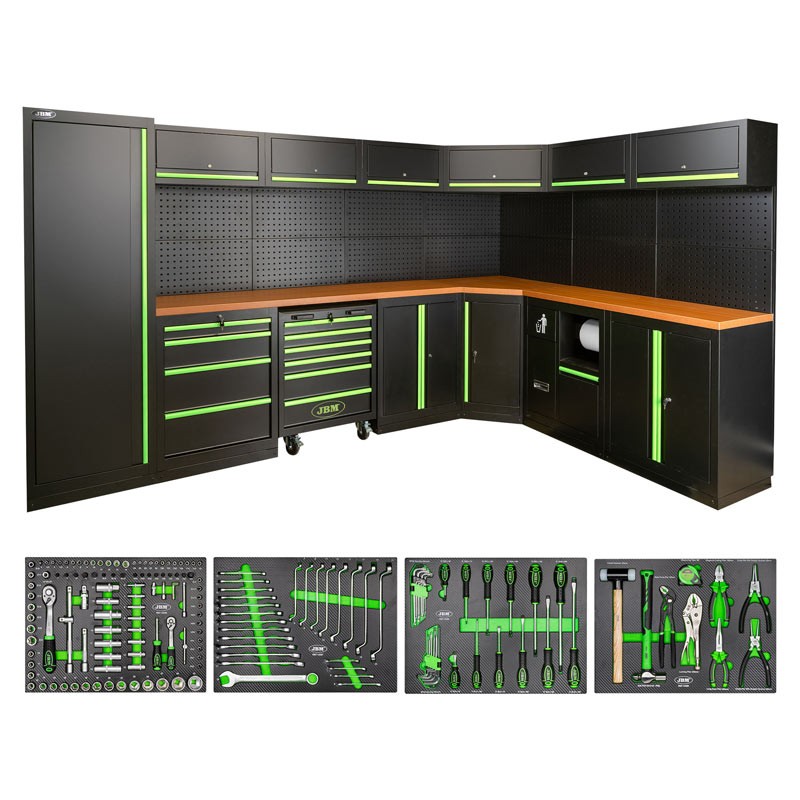

JBM 565 / 587 Series - 50 cm Workshop Workbench with 172 Tools Included

The JBM 565 Series / 587 Series is a professional modular tool bench designed to optimize tool organization and management in mechanical workshops , service centers , professional garages , and industrial environments . Its modular configuration allows you to create a complete, tidy, and highly functional workstation, improving operational efficiency and reducing tool search times.

Available in the 565 Series version with MDF top and the 587 Series version with stainless steel worktop , this solution integrates cabinets , drawers , tool panels and a complete 172-piece professional tool set inserted into Carbon EVA modules. The structure was developed to ensure sturdiness, practicality and maximum accessibility to all the equipment needed during daily work.

Composition

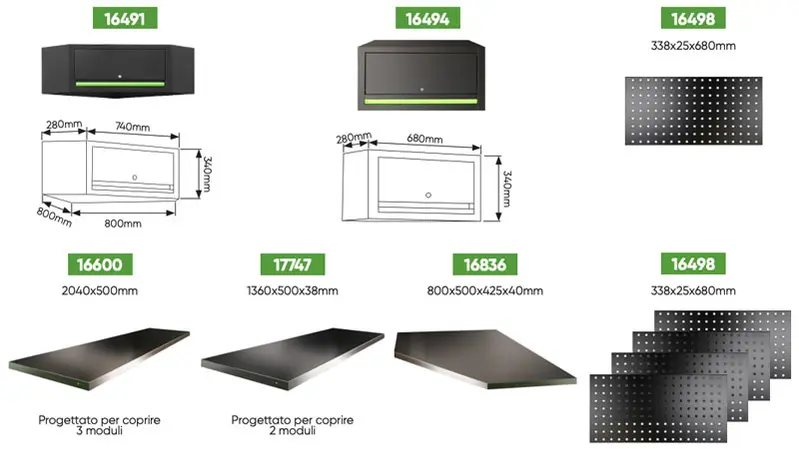

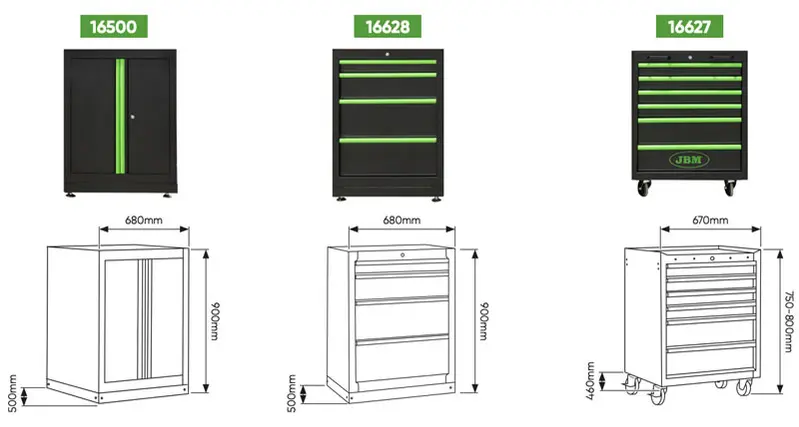

The JBM 565 Series worktop is made up of the following modules:

• 1 x Tall cabinet - code 16490
• 1 x Wardrobe with 4 drawers - code 16627
• 1 x 6-drawer wardrobe - code 16628
• 1 x Cabinet with 2 doors - cod. 16500
• 3 x Wall cabinet - code 16494
• 6 x Panel 680x340x25 mm - code 16498
• 1 x MDF work table 2040x500x38 mm - code 16629
• 9 x Support bar - code 16561
• 1 x Corner wardrobe - code 16491
• 1 x Corner wardrobe with MDF panel - code 16492
• 1 x 3-drawer cabinet with paper roll holder - code 16493
• 2 x Wall Cabinet - 16494
• 1 x MDF panel 1360 x 500 x 38 mm - cod. 16496
• 4 x Panel 680 x 340 x 25 mm - code 16498
• 1 x Cabinet with 2 doors - cod. 16500
• 1 x Set of 4 corner cabinet panels - code 16516

The JBM Series 588 worktop is made up of the following modules:

• 1 x Tall cabinet - code 16490
• 1 x Wardrobe with 4 drawers - code 16627
• 1 x 6-drawer wardrobe - code 16628
• 1 x Cabinet with 2 doors - cod. 16500
• 3 x Wall cabinet - code 16494
• 6 x Panel 680x340x25 mm - code 16498
• 1 x Stainless steel table 2040x500x38 mm - cod. 16600
• 9 x Support bar - code 16561
• 1 x Corner wardrobe - code 16491
• 1 x Corner wardrobe with MDF panel - code 16492
• 1 x 3-drawer cabinet with paper roll holder - code 16493
• 2 x Wall Cabinet - 16494
• 1 x Stainless steel corner panel 1360 x 500 x 38 mm - code 17747
• 4 x Panel 680 x 340 x 25 mm - code 16498
• 1 x Cabinet with 2 doors - cod. 16500
• 1 x Set of 4 corner cabinet panels - code 16516

FUNCTIONAL SPECIFICATIONS

Customizable Modular System

The strength of the JBM modular worktop is its fully adaptable configuration to the user's operational needs. The system's various components can be strategically arranged to create an efficient workstation, allowing for optimal management of the most frequently used tools and equipment.

Large Storage Capacity

The structure integrates a single-door cabinet , fixed and mobile drawer units with drawers or doors, and numerous spaces dedicated to tool storage. This configuration allows you to keep the work area tidy and ensure that every tool is easily identifiable and immediately available.

Perforated Tool Holder Panels

The perforated rear panels offer a practical solution for vertically organizing frequently used tools. This configuration improves workstation ergonomics, facilitates tool access, and helps maintain high standards of order and operational safety.

Professional Work Plan

The 565 Series features a durable MDF top , ideal for professional applications requiring a robust and reliable surface. The 587 Series , on the other hand, features a stainless steel-coated top , particularly suitable for high-intensity environments thanks to its high resistance to wear, impact and corrosion.

Robust Structure for Intensive Use

Each system component is made of high-strength materials designed to withstand frequent use and heavy loads. The quality construction ensures long-lasting reliability even in professional environments characterized by intense and continuous workloads.

172-Piece Professional Tool Set

The package includes a complete 172-piece professional tool set , organized into four modules made of Carbon EVA . This solution allows you to keep each tool in its own dedicated location, improving inventory control and reducing the risk of loss during daily activities.

Tools included

14296 - 108-piece module with hexagonal holes with carbon fiber finish

• 1/2" and 1/4" universal ratchet wrenches with ejector for easy socket removal
• Metric sockets in various sizes (1/2" and 1/4") including long and Torx versions, for working precisely on different types of screws
• 1/2" spark plug sockets, sizes 16 and 21 mm, ideal for vehicles
• Extension bars in various sizes (2", 3", 5" and 10") to reach hard-to-reach areas
• 1/2" and 1/4" universal joints for greater flexibility
• Adapters for various caps, including 3/8" female to 1/2" male adapter and 1/2"x5/16" cap adapter
• Screwdriver bit caps (PH, PZ, HEX, SL, TX) in various sizes to ensure a perfect fit on screws and bolts
• 1/4" screwdriver handles and sliding handles for added comfort and versatility
• 1.5, 2 and 2.5 mm Allen keys for precise work on small components
• Carbon finish module, offering durability and elegant design to organize all your tools efficiently

14297 - Eva module with 25 combination and offset keys

• Angle wrenches: 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 mm
• Combination wrenches: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20 21, 24 mm

14298 - Eva Module of Screwdrivers and Allen Keys

• Phillips Tip: PH2x38, PH0x75, PH1x100, PH2x100, PH3x150, PH4x200
• Flat Tip: SL6x38, SL3x100, SL5x75, SL6x100, SL8x150, SL10x200
• 9 Piece L-Shaped Round Head Allen Key Set: 1.5 2, 2.5, 3, 4, 5, 6, 8, 10mm
• 9 Piece L-Shaped Torx Key Set: 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm

14299 - Eva Hammer and Pliers Module

• Straight nose circlip pliers - 8" internal
• Straight nose circlip pliers - 8" external
• Pen hammer
• Nylon hammer
• 10" locking pliers
• 3m tape measure
• Adjustable pliers 240 mm
• 7" 180mm diagonal cutting pliers
• 8" 200mm Long Nose Pliers

CHARACTERISTICS

• Professional modular system for workshops
• Available with MDF (565 Series) or stainless steel (587 Series) worktop
• Complete structure with wardrobe, drawers and tool holder panels
• 172-piece professional tool set included
• High strength Carbon EVA tool modules
• Fixed and mobile chests of drawers for maximum versatility
• Perforated panels for equipment organization
• Robust structure for intensive professional use
• Quick and safe access to tools

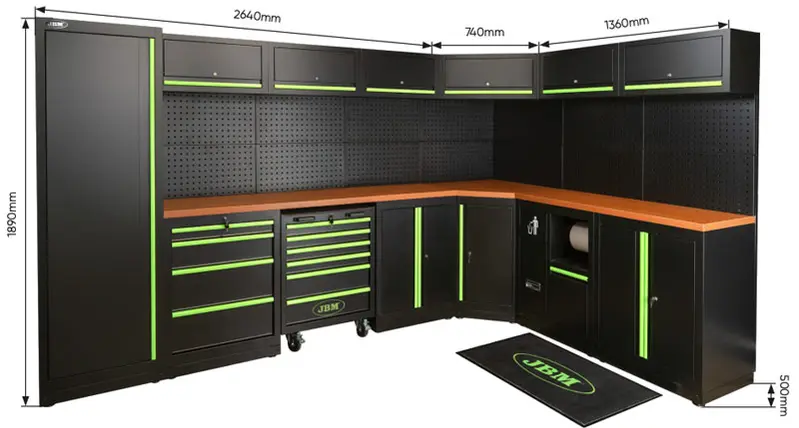

• Overall dimensions 344 x 216 x 195 cm
