JBM 50935
Oil Pump Kit with Hose and Digital Dispensing Gun
MPN: 50935
EAN: 8435034509359
Pressure 6÷8 bar
Flow rate 18 L/min
Actual Air Consumption 250 L/min
€459.00
€376.23 tax excl.

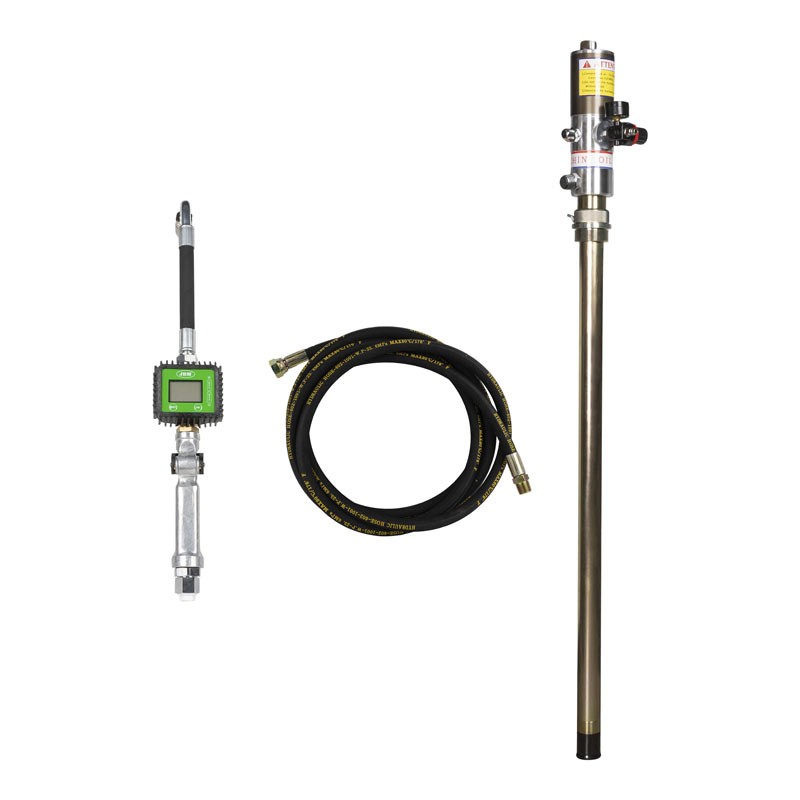

JBM 50935 - Oil Pump Kit with Hose and Digital Dispensing Gun
The JBM 50935 is a professional oil pump kit specifically designed for efficient and precise dispensing of lubricants. This tool is ideal for transferring oil from drums , ensuring quick and measured operations. Its configuration includes a pneumatic pump with a compression ratio of 5:1 and a 2 m hose , combined with a dispensing gun with a digital flow meter for precise volume control. The dispensing capacity reaches 18 L/min operating at an optimal working pressure of 6-8 bar , making it a reliable solution for professional fluid management.
Technical Specifications
This pneumatic oil transfer system requires a 1/4" air intake connection and operates at a working pressure between 6 and 8 bar. The pump ensures high performance with a relative delivery capacity of 18 L/min and an actual air consumption of 250 L/min , using a 1/2" air outlet . It is suitable for dispensing oils with a maximum viscosity of 240SAE and withstands an oil temperature ranging from -10 to 50 °C . The entire kit weighs 10.7 kg and is equipped with a 950 mm suction tube and a 2 m long delivery hose .
Functional Specifications
Controlled and Measured Oil Delivery

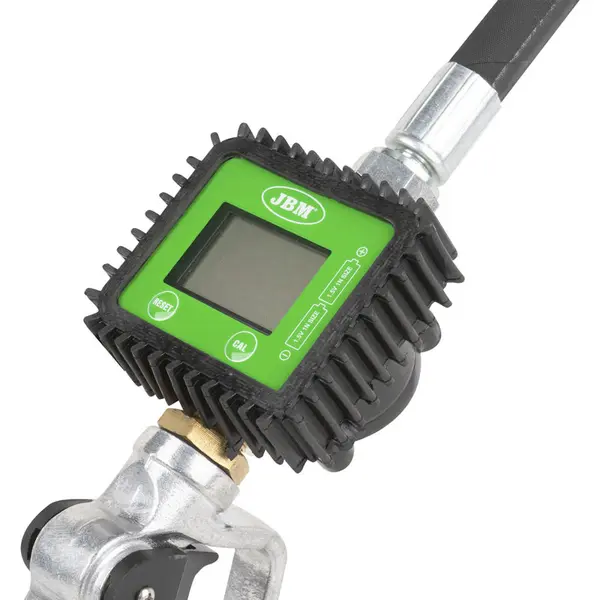

The heart of this oil dispensing kit is the dispensing gun , equipped with a digital flow meter . This component ensures precise measurement of the volume of lubricant dispensed. The combination with the 5:1 pneumatic pump allows for a constant and well-regulated flow.
Optimized Performance of the Pneumatic Pump Group
The oil drum pump , with a 5:1 compression ratio , provides the power needed to move high-viscosity oil (up to 240SAE ), even over long distances or in demanding working conditions. The 18 L/min capacity significantly reduces travel and maintenance time for professionals.
Complete System for Immediate Installation and Use
The JBM 50935 kit includes all the necessary components for lubricant management: the pump , the digital control nozzle , and the lubricant supply hose . This comprehensive package allows for quick installation and immediate use by the operator on the drum, providing a turnkey solution for oil dispensing in workshops or industrial environments.
Characteristics
- Air pump with 5:1 compression ratio
- Delivery capacity 18 L/min
- Gun with digital flowmeter
- Working pressure 6-8 bar
- Suitable for oil with viscosity up to 240SAE
- 2 m delivery hose included
Standard Equipment
Technical Data
| Model | 50935 |
| Compression Ratio | 5:1 |
| Work Pressure | 6÷8 bar |
| Flow rate | 18 L/min |
| Real Air Consumption | 250 L/min |
| Maximum Oil Viscosity | 240SAE |
| Hose Length | 2 m |
| Weight | 10.7 kg |
Technical Data
| Model | 50935 |
| Compression Ratio | 5:1 |
| Work Pressure | 6÷8 bar |
| Flow rate | 18 L/min |
| Real Air Consumption | 250 L/min |
| Maximum Oil Viscosity | 240SAE |
| Hose Length | 2 m |
| Weight | 10.7 kg |
