JBM 54386
Hydraulic Table for Electric Vehicle Batteries 1200 kg

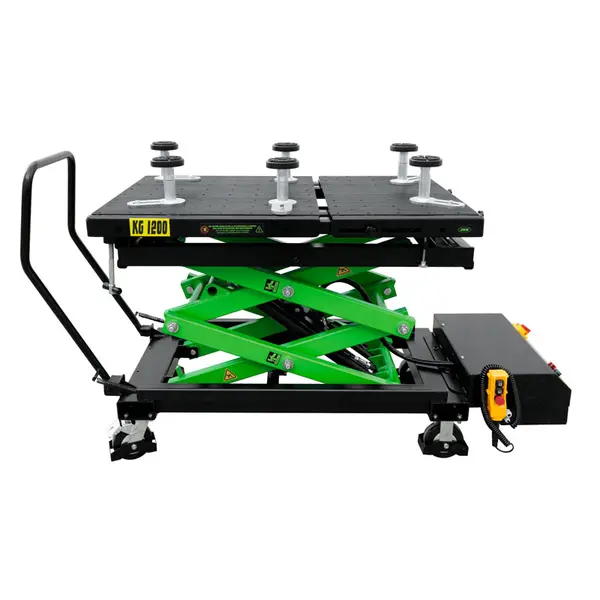

JBM 54386 - Hydraulic Battery Table for Electric Vehicles 1200 kg

The JBM 54386 is a hydraulic battery table designed for professional applications in the electric vehicle sector, ideal for maintenance , disassembly and assembly operations on high-capacity battery packs . Thanks to its industrial structure and 1200 kg capacity , it guarantees stability, operational precision and maximum safety during every phase of the intervention.

The system integrates electrically isolated rubber blocks and a highly accurate adjustable platform, supported by a double hydraulic cylinder that allows for faster and more controlled movements, making it an essential tool for specialized workshops and EV centers .

TECHNICAL SPECIFICATIONS

The hydraulic battery table uses an electric power supply managed by a 220 cm cable , ensuring operational flexibility and a stable connection during lifting. The double-cylinder hydraulic system optimizes movement times, ensuring a 24-second idle lift and a 140-second idle lowering time , while maintaining smooth control throughout the entire travel.

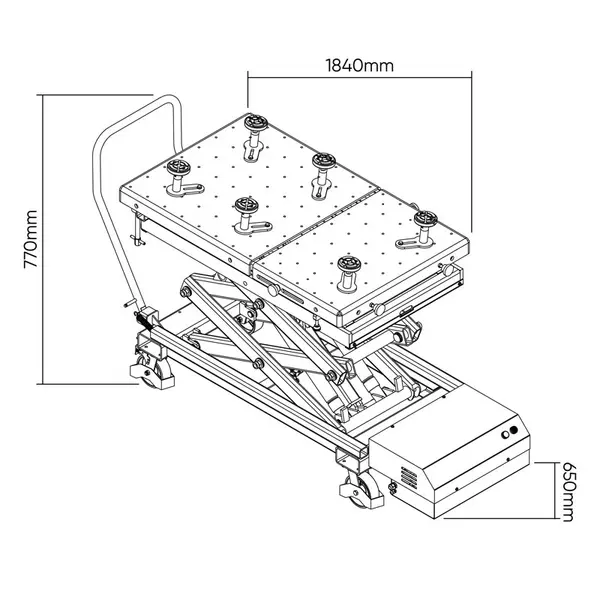

Structural performance includes a 1200 kg capacity , a minimum height of 65 cm and a maximum of 184 cm , with a 129 × 76.8 cm platform extendable up to 140 cm in length . The 418 kg frame ensures rigidity and stability, while the 150 mm wheels , equipped with brakes , guarantee safe positioning even during precision machining.

FUNCTIONAL SPECIFICATIONS

Independent adjustment of the isolated supports

The six electrically insulated rubber blocks allow for completely safe operation with high-voltage batteries . Each support is individually height-adjustable , allowing for precise adaptation to the geometry of the battery pack and improving stability during positioning or lifting.

Fine height adjustment

The platform is equipped with rotary adjustment keys , a mechanical system that allows micro-adjustments of the height for accurate alignment during installation or removal of the battery module, avoiding unwanted twisting and optimizing operation.

Professional extendable platform

The structure features an extendable platform , useful for operating on battery packs of different lengths without compromising load stability. The extension maintains full compatibility with the nominal capacity and ensures uniform support of the module.

Quick lift with double hydraulic cylinder

The double-cylinder system ensures a higher lifting speed than traditional hydraulic tables, reducing processing times and improving responsiveness during positioning. Load management is progressive and controlled.

Integrated safety devices

The table is equipped with safety teeth that prevent the platform from lowering unexpectedly and an automatic height limiter that prevents the maximum permitted travel. These features ensure high safety standards even in intensive work environments.

Stability and controlled movement

The two wheels with brakes allow you to precisely position the table before starting work and lock it completely during operation. The overall mass and weight distribution ensure torsional rigidity and zero vibration even under heavy loads.

Watch the video

Characteristics

• Hydraulic table for electric vehicle batteries
• 6 electrically insulated and individually adjustable rubber mounts
• Extendable platform from 129 to 140 cm
• Double cylinder for quick lifting and lowering
• Adjustable height from 65 to 184 cm
• Safety systems: anti-fall teeth and maximum height block
• 150 mm wheels with brake
• Capacity 1200 kg
