JBM 54510
11-Drawer Tool Trolley with Pegboard

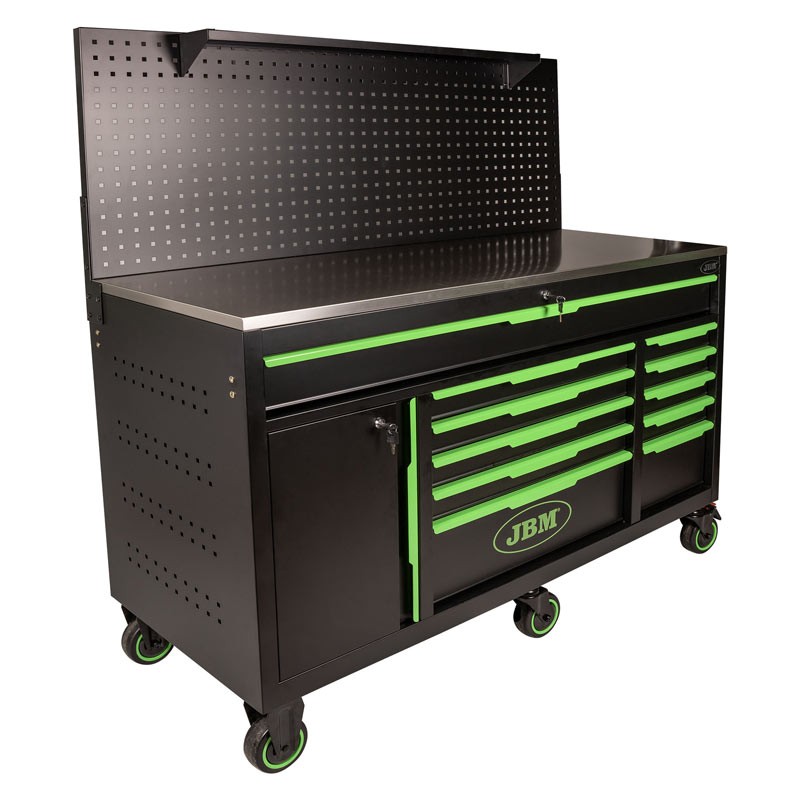

JBM 54510 - Professional 11-Drawer Trolley with Perforated Panel

The JBM 54510 professional tool trolley is designed for intensive use in mechanical workshops , industrial maintenance departments , and technical laboratories . Made of high-strength steel , it offers a perfect balance between load capacity and ease of use, ensuring order and immediate accessibility to tools. Thanks to its 11 drawers with 45 mm self-return ball bearing slides , the JBM 54510 model ensures smooth sliding and maximum reliability even under heavy loads. The 25 mm stainless steel worktop increases its durability and resistance to impacts and chemicals, making it an ideal solution for professional settings.

TECHNICAL SPECIFICATIONS

The JBM 54510 is constructed with a 1.0mm steel frame and 0.8mm steel drawers , powder-coated with a grained black finish for superior corrosion protection. The cart is equipped with six 5x2 inch TPR casters , including two locking swivel , two fixed and two adjustable , which ensure stability and maneuverability on any workshop surface. With a total weight of 158kg and a total capacity of 600kg , the cart offers an extremely robust and durable structure.

The load performance of the individual compartments enhances its versatility: small and large drawers with a capacity of up to 30 kg , an extended upper drawer with a capacity of 70 kg , and a worktop with a capacity of up to 200 kg . The trolley includes four small drawers , one small tall drawer , four large drawers , one large tall drawer and an extended upper drawer , for optimised management of tools of various sizes.

FUNCTIONAL SPECIFICATIONS

High-strength ball bearing slide

Each drawer of the JBM 54510 tool trolley is equipped with 45 mm ball bearing slides with automatic return, ensuring smooth opening and closing even when fully loaded. This system reduces mechanical wear and improves operational safety, ensuring stable and quiet movement.

Professional stainless steel worktop

The 25mm stainless steel top offers a large surface resistant to impacts, oils, and solvents . Ideal for assembly or inspection operations, it guarantees long life and easy cleaning, maintaining the cart's aesthetics and functionality even after years of use.

Reinforced structure and movement stability

The steel frame with a textured black powder coating ensures sturdiness and corrosion protection. The 5x2-inch TPR wheels —two swivel with locking, two fixed, and two adjustable—ensure precise and safe movement even in industrial environments with uneven floors.

Modular organization with 11 drawers

The 11-drawer configuration of various sizes allows for optimal organization of hand tools and technical equipment. Each drawer features 2.5 mm non-slip mats and metal handles with identification tags , promoting order and ensuring the contents are immediately identifiable.

Perforated side panels for accessories

The perforated side panels with square holes expand the functionality of the cart, allowing for the attachment of accessories and tool holders. This feature makes the JBM 54510 a truly modular work system, capable of adapting to any professional operating configuration.

Characteristics

• Trolley with 11 drawers
• 4 small drawers on the right side 48 x 31.6 x 7 cm
• 1 small drawer on the right side 48 x 31.6 x 20 cm
• 4 large central drawers 48 x 66.3 x 7 cm
• 1 large central high drawer 48 x 66.3 x 20 cm
• 1 extended top drawer 48 x 143.5 x 11.2 cm

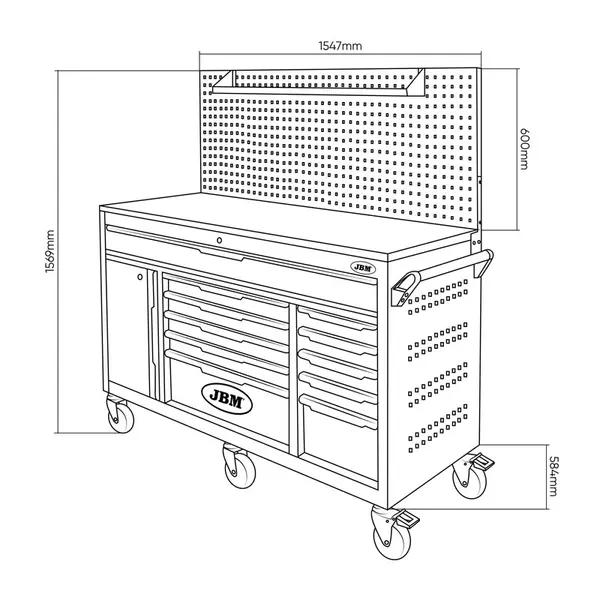

• Overall dimensions 154.7 x 58.4 x 78.9 cm
• 6 TPR 5x2 wheels in
• Capacity 600 kg
