JBM 500 Series
Semi-Automatic Tire Changer + Digital Wheel Balancer

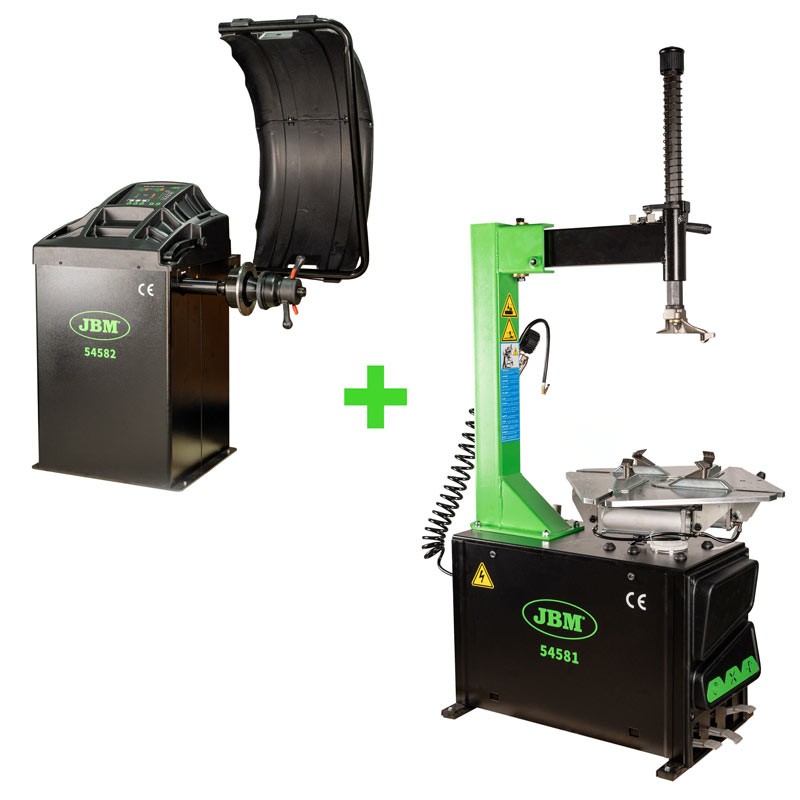

JBM 500 Series - Semi-Automatic Tire Changer 54581 + Digital Wheel Balancer 54582

The JBM 500 Series Kit combines a semi-automatic swing-arm tire changer with a professional digital wheel balancer , offering a complete solution for workshops and tire service centers that require reliable and consistent performance. Designed for professional use, the kit ensures rapid demounting operations and maximum precision during the balancing phase. The combination of the mechanical swing-arm system and high-speed digital technology allows for a continuous, efficient workflow suitable for intensive use.

TECHNICAL SPECIFICATIONS

Both machines operate with a single-phase 230V power supply , compatible with professional workshop standards. The semi-automatic tire changer is equipped with a 0.55–1.1 kW motor and requires an operating pressure of 8–10 bar , developing a rotational torque of 1078 Nm to ensure power and precision even on large tires. The digital wheel balancer has a power of 200 W , reaches 200 RPM and completes a work cycle in just 8 seconds , optimizing intervention times.

The JBM tire changer supports wheels from 10” to 22” , while the digital wheel balancer works with rims from 10” to 24” and widths up to 20” , with a load capacity of 65 kg . Both machines are designed to reduce operating noise ( 75 dB for the tire changer, 70 dB for the wheel balancer) and ensure stability thanks to the reinforced frame and excellent weight distribution.

FUNCTIONAL SPECIFICATIONS

Tire removal with swing arm

The JBM 54581 semi-automatic tire changer uses a swing-arm system that ensures smooth and controlled removal. The high-strength bead breaker claw allows for working with tires of different sizes, reducing operator fatigue and preventing damage to the rim.

Professional precision digital balance

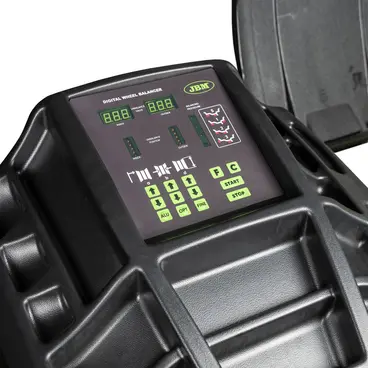

The JBM 54582 digital wheel balancer is equipped with a high-speed electronic data calculation system , allowing for precise and stable balancing in just seconds. Digital control allows for multiple operating modes to be selected to suit the characteristics of each wheel, improving vehicle performance and safety.

Operational efficiency and reduction of intervention times

The JBM 500 Series tire changer + wheel balancer kit ensures operational synergy that optimizes overall workshop time. The high motor torque and rapid balancing cycle minimize downtime, increasing productivity without compromising service quality.

Structural reliability and durability over time

Both machines in the JBM 500 Series Kit are built with high-quality components and a solid construction designed for intensive use. Long-term reliability and minimal maintenance make this kit an ideal solution for professionals seeking high-performance, quiet, and durable tools.

Watch the videos

Semi-automatic tire changer 54581

Electric wheel balancer 54582

Characteristics

Semi-automatic tire changer 54581

• Single-phase 230V power supply
• Power 0.55 - 0.75 - 1.1 kW
• Pressure from 8 to 10 bar
• Rotational torque 1078 Nm
• Wheel diameter supported from 10" to 22"
• Noise level 75 dB
• Swing arm for quick assembly/disassembly
• Reinforced bead breaker claw for various size tires
• Weight 167 kg

Digital wheel balancer 54582

• Single-phase 230V power supply
• Power 200 W
• Rotation speed 200 RPM
• Cycle time 8 sec
• Load capacity 65 kg
• Wheel diameter from 10" to 24"
• Rim width from 1.5" to 20"
• Noise <70 dB
• High-speed digital data computing system
• Different balancing modes for various types of wheels and rims
• Weight 75 kg
