Docma VF155 AUTO-4
Honda 4T Winch
Textile Rope Up to 2520 kg

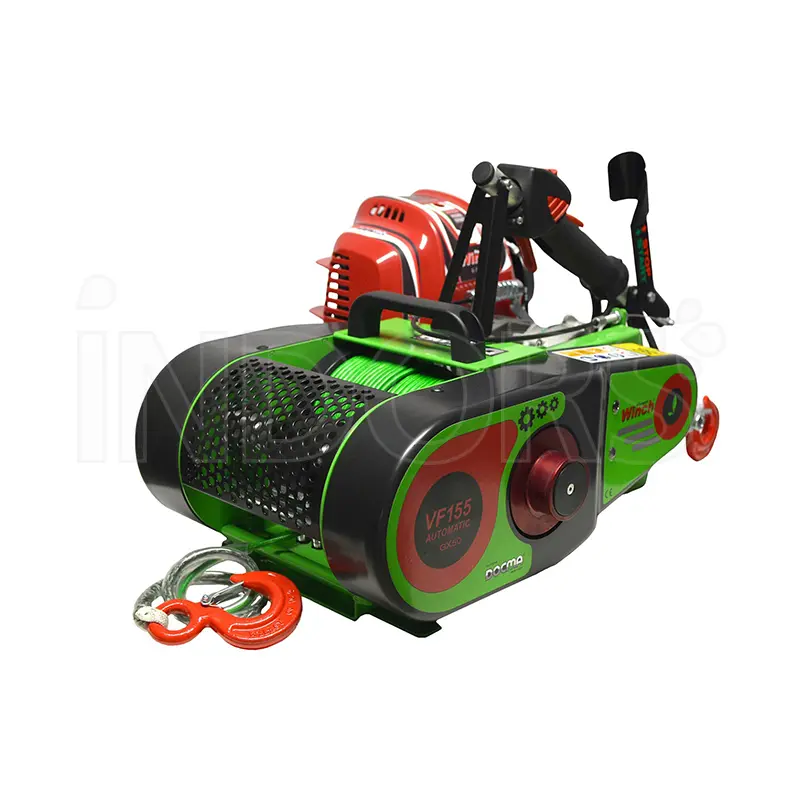

Docma Forest Winch VF155 AUTO-4 - Ultralight Textile Rope Winch

Docma VF155 Auto-4 GX50 Forest Winch is a professional portable forestry winch Made in Italy.

4-stroke Honda GX50 Engine, drum speed of 19 m/min.

Maximum pull of 1260 kg, extendable up to 2520 kg with double pulley system.

Integrated drum, 5 mm DY-Forest textile rope, and 80 m winding capacity with automatic rope winding.

For professional logging operations, even on steep slopes.

Functional Specifications

Honda GX50 4-Stroke Engine

Professional Honda GX50 gasoline engine, designed to ensure reliability and power in forestry applications.

5 mm DY-Forest Textile Rope

High-performance textile rope, lightweight and strong, designed to reduce physical effort during positioning and manual uphill pulling.

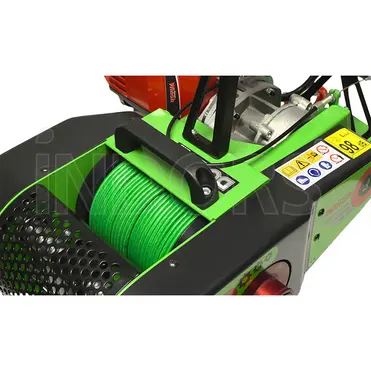

Automatic Winding System

Features a patented rope guide that ensures orderly winding on the drum, limiting the risk of rope crushing and damage.

Pulling with Double Pulley System

The ability to use the pulley system doubles the pulling capacity, reaching 2520 kg compared to 1260 kg in direct pull.

Automatic Braking System

Automatic brake with load stop, designed to ensure traction control and safety during logging operations.

Quick Release Transmission

Quick release system that facilitates rope unwinding and makes equipment preparation and handling more practical.

Helical Gear Reducer

High-quality reducer with helical gears, designed to ensure efficient power transmission.

Features

• Professional portable forestry winch
• Honda GX50 4-stroke gasoline engine
• Maximum pull 1260 kg
• Double pulley pull 2520 kg
• DY-Forest textile rope
• Rope diameter 5 mm
• Drum capacity 80 m
• Pulling speed 19 m/min
• Automatic rope winding
• Patented rope guide
• Automatic brake with load stop
• Integrated rope winding drum
• Quick release system
• Helical gear reducer
• Compact, durable, and ultralight structure
• Made in Italy

Standard Equipment

• VF155 AUTO-4 GX50 Ultralight Winch - 980010
• Ultra-resistant Dy-Forest Textile Rope 5 mm x 80 m and hook with safety latch - 310245

Optional Equipment

The use of accessories such as the pulley for rope deflection, the choker sling for tree protection, and certified ropes and chains, ensures greater safety for people and the environment.

All Made in Italy, Original Docma Products and Certified

Available in related products.

• Ring Sling

• Eye Sling

• Ratchet Sling

• Choker Sling

• Logging Chain

• Safety Hook

• Swivel Hook with Safety Latch

• Shackle

• Aluminum Pulley

• DY-FOREST Textile Rope 5 mm x 8 m and Hook with Safety Latch

• Winch Backpack

• Winch Cart

• Base Sled

• Multifunction Sled

• Elastic Rope

• Strap with Spring Buckle
