Docma VF150 Auto-4 GX50
Honda 4T 2420 Kg Winch

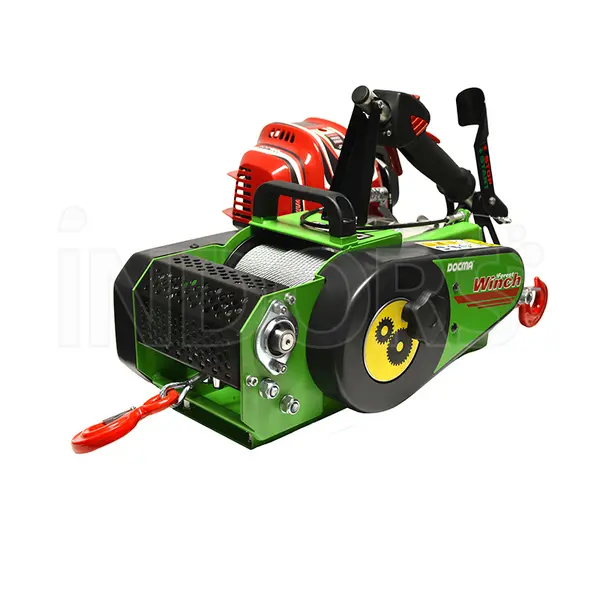

Docma Forest Winch VF150 Auto-4 GX50 - Honda GX50 Engine Professional Winch

Docma VF150 Auto-4 GX50 Forest Winch is a Made in Italy forestry winch.

Honda GX50 4-stroke engine, drum speed of 19 m/min.

Maximum pull of 1210 kg, extendable up to 2420 kg with double pulley system.

Integrated drum with a capacity of 80 m with 5 mm cable or 60 m with 6 mm cable.

Robust structure, patented automatic cable guide and automatic brake.

Professional winch for intensive logging, felling, and timber handling operations.

Functional Specifications

Honda GX50 4-Stroke Engine

Honda GX50 4-stroke engine, designed to ensure operational reliability, low consumption, and low noise during work.

High Pulling Force

Maximum pull of 1210 kg, reaching 2420 kg with the double pulley system, to handle demanding towing operations.

Integrated Cable Drum

Integrated drum with a capacity of 80 m of 5 mm cable or 60 m of 6 mm cable, to adapt to different operational needs.

Patented Automatic Cable Guide

Automatic cable winding system that ensures orderly arrangement on the drum, reducing the risk of overlaps and crushing.

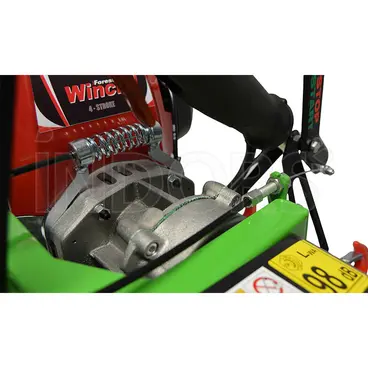

Automatic Safety Brake

Automatic braking system for load control and safe stopping, compliant with current regulations.

Helical Gear Reducer

High-quality reducer with helical gears, designed to ensure efficient transmission, robustness, and reduced noise.

Professional and Compact Structure

Resistant frame and compact dimensions, designed to offer solidity, maneuverability, and reliability in intensive forestry operations.

Drum Controls and Management

Equipped with a control handle and a knob for engaging and disengaging the cable drum.

Features

• Professional portable forestry winch
• Honda GX50 4-stroke engine
• Maximum pull 1210 kg
• Double pull with pulley system 2420 kg
• Drum speed 19 m/min
• Cable capacity 80 m Ø 5 mm / 60 m Ø 6 mm
• Usable cable diameter 5-6 mm
• Integrated cable drum
• Patented automatic cable guide
• Automatic braking system
• Reducer with helical gears
• Control handle
• Knob for drum engagement and disengagement
• Robust and compact structure
• Low noise
• Made in Italy

Standard Equipment

Version with Steel Cable

• Winch VF150 Auto-4 GX50 980009
• 5 mm Steel Cable / 80 m length complete with Swivel Hook with safety latch - 310022

Optional Equipment

The use of accessories such as the pulley to divert the cable, the sling to protect trees, and certified cables and chains, ensures greater safety for people and the environment.

All Made in Italy, Original and Docma Certified

Available for purchase in related products.

• Ring Sling

• Eye Sling

• Ratchet Sling

• Choker Chain

• Logging Chain

• Safety Hook

• Swivel Hook with Safety Latch

• Shackle

• Steel Pulley

• Aluminum Pulley

• Steel Cable

• Steel Cable with Swivel Hook

• Winch Backpack

• Winch Cart

• Base Sled

• Multifunction Sled

• Elastic Rope

• Strap with Spring Buckle
