Docma VF105 RED IRON
Professional Petrol Winch
2100 kg With Rope

Docma Forest Winch VF105 RED IRON - Ultralight Rope Winch

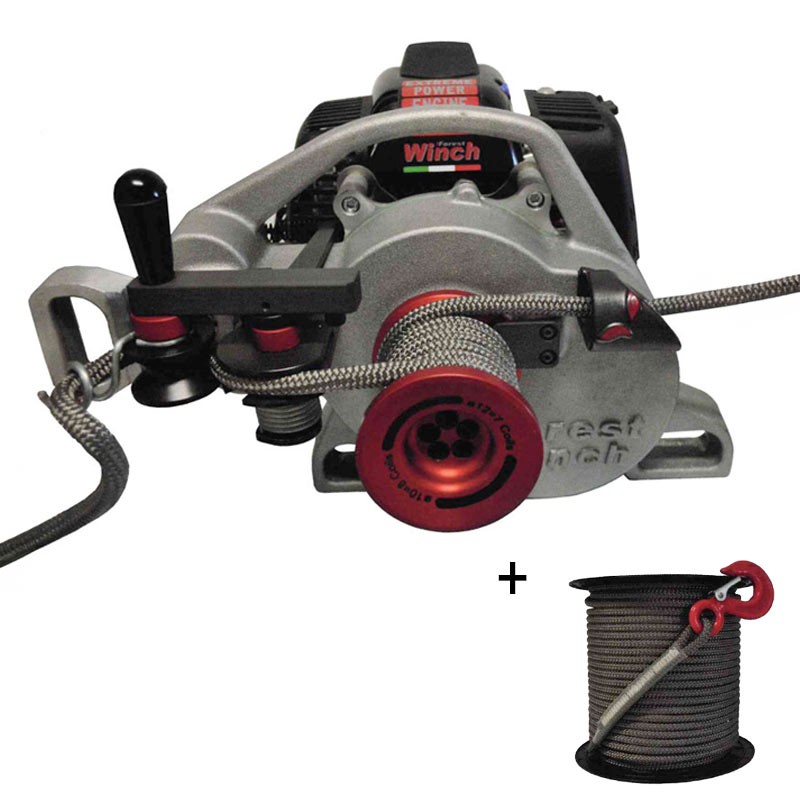

Docma VF105 RED IRON is an ultralight forestry winch from the Forest Winch series, with textile rope included.

Solo by AL-KO 50.80 cc engine Made in Germany, drum speed of 20 m/min and adjustable throttle with automatic brake.

Weight 10.5 kg. Maximum pull of 1050 kg, extendable up to 2100 kg with double pull.

Compact, portable and with simplified rope management, for operations in difficult-to-reach areas and for manual transport or with a backpack.

For towing operations in forestry, construction, utility, and rescue sectors.

Available Models

• Standard: VF105 RED IRON winch + textile rope + safety hook
• Complete: VF105 RED IRON winch + textile rope + safety hook + aluminum pulley + sling with ratchet

For more details, see the equipment section.

Functional Specifications

Maximum pull up to 2100 kg

It guarantees a pulling force of 1050 kg, which can reach 2100 kg with double pull, for recovery and load handling operations.

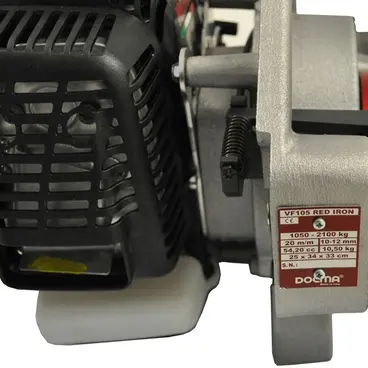

Professional Solo by AL-KO engine

Equipped with a 50.80 cc petrol engine, manufactured in Germany, for reliable performance in professional applications.

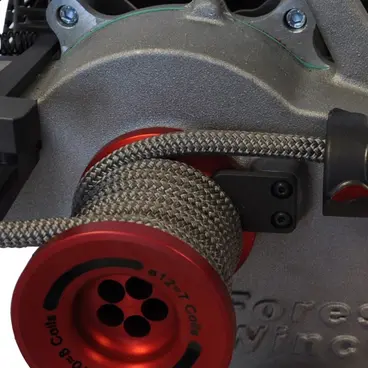

Textile rope with unlimited capacity

The 10-12 mm textile rope system offers unlimited drum capacity, eliminating the winding constraints typical of traditional winches.

Adjustable speed and acceleration

The drum speed of 20 m/min and adjustable acceleration allow for traction management according to operational needs.

Automatic safety brake

The automatic brake ensures load control and automatic stopping, in accordance with current regulations.

Ultralight and portable design

With a weight of only 10.5 kg, the winch is easily transportable by hand or in a backpack, even during prolonged movements in hard-to-reach areas.

Versatile anchoring system

Multiple anchoring points allow for various operational configurations, increasing flexibility of use in the field.

Watch the Video

Features

• Professional forestry winch with textile rope
• Solo by AL-KO 50.80 cc engine
• Maximum pull 1050 kg
• Maximum pull with double pull 2100 kg
• Drum speed 20 m/min
• Adjustable acceleration
• Automatic brake
• Unlimited drum capacity
• Rope diameter 10-12 mm
• Weight 10.5 kg
• Ultralight and compact structure
• Multiple anchoring points
• Made in Italy - Engine made in Germany

Standard Model Equipment

The standard model includes the VF105 RED IRON winch complete with:

• Grey Textile Rope 10 mm x 100 m
• Safety Hook

Complete Kit Equipment

The Complete Kit version includes the VF105 RED IRON winch with the following accessories included:

• Grey Textile Rope 10 mm x 100 m
• Safety Hook
• Aluminum Pulley 40 kN code 310051
• Sling with Ratchet 2000 mm - 2 Tons code 310012

Optional Equipment on Request

A range of additional optional accessories are available on our website in the accessories section to best equip the Docma VF105.
The use of accessories such as the pulley to divert the rope, the sling to protect trees, and certified ropes and chains, ensures greater safety for people and the environment.

Made in Italy Accessories, Original and Certified Docma

• Sling with Ring 3/4 m (code 310001/310002)

• Sling with Eyes (code 310003)

• Sling with Ratchet (code 310012)

• Choker Chain (code 310007)

• Forest Chain 2.5/3 m (code 310009/310010)

• Hook with Safety Latch (code 310210)

• Double Hook (code 310211)

• Swivel Hook with Safety Latch (code 310204)

• Shackle 2000 kg (code 310205)

• Aluminum Pulley 40 kN (code 310051)

• Grey Textile Rope 10 mm x 100 m (code 310209)

• Red Textile Rope 12 mm x 100 m (code 310207)

• Winch Backpack (code 310048)

• Rope Bag (code 310220)

• Base Sled (code 310240)

• Multifunction Sled (code 310241)

• Winch Mounting Plate for Sled (code 310244)

• Elastic Rope (code 310247)

• Strap with Spring Buckle (code 310249)
