Docma VF155 MANUAL
Gasoline Engine with Textile Rope max. 2970 kg

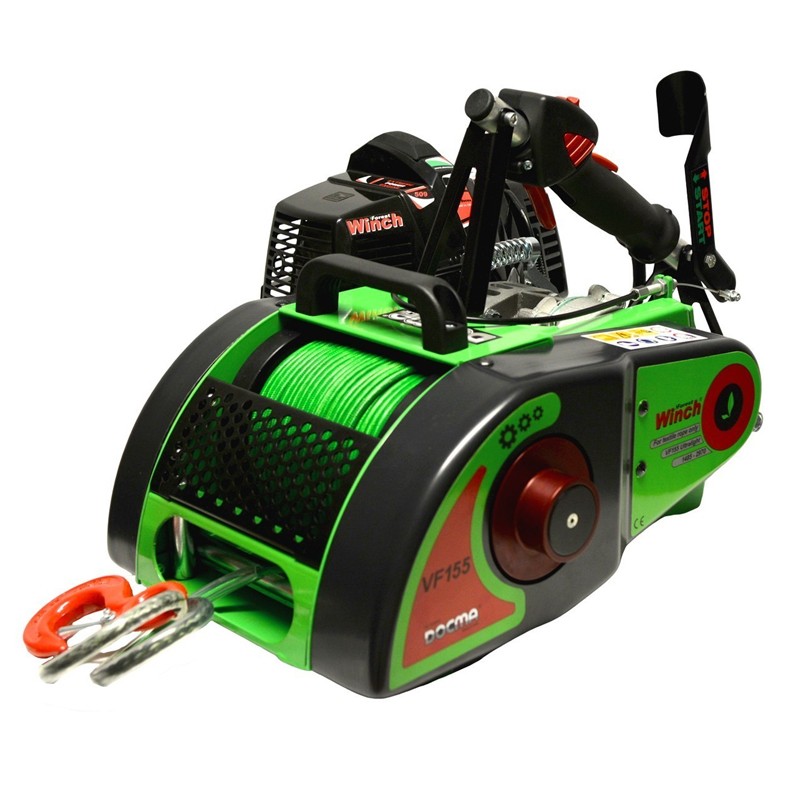

Docma Forest Winch VF155 Manual - Professional Winch with Ultralight Textile Rope

Docma VF155 Forest Winch is a portable forestry winch Made in Italy with a gasoline engine.

Solo by AL-KO 50.80 cc engine, drum speed of 20 m/min.

Integrated drum with capacity of 80 meters and 5 mm DY-Forest textile rope.

Maximum pull of 1485 kg, reaching 2970 kg with double pull.

Ultralight textile rope for reduced physical effort during uphill positioning.

For intensive professional logging and timber handling operations, even on steep slopes.

Functional Specifications

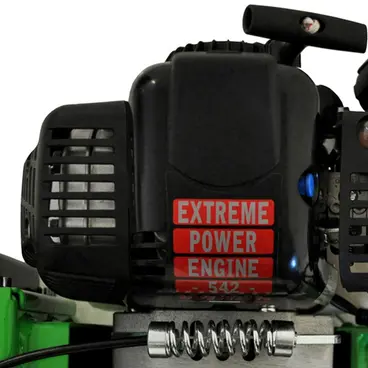

Solo by AL-KO 50.80 cc Gasoline Engine

Professional engine, designed to ensure power and reliability in forestry pulling operations.

Ultralight DY-Forest Textile Rope

High-performance textile rope with a diameter of 5 mm, designed to reduce weight and physical effort during manual uphill handling.

High Pulling Capacity

Maximum pull of 1485 kg in single pull and up to 2970 kg in double configuration, for demanding logging operations.

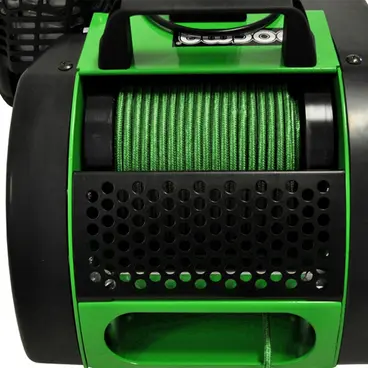

Integrated 80 Meter Drum

Built-in drum with a capacity for winding up to 80 meters of textile rope, for practical equipment management.

Manual Rope Winding

Manual winding system with a drum speed of 20 m/min.

Automatic Safety Brake

Automatic load stopping system, compliant with current regulations, for increased safety during pulling operations.

Quick Release Transmission

Innovative quick release system that allows disengaging the transmission and facilitating rope unwinding.

Helical Gear Reducer

Transmission with a high-quality helical gear reducer, designed to ensure reliability and durability in professional use.

Watch the Video

Features

• Professional portable forestry winch
• Solo by AL-KO 50.80 cc gasoline engine
• Ultralight DY-Forest textile rope
• Rope diameter 5 mm
• Maximum pull 1485 kg
• Double pull 2970 kg
• Drum capacity 80 m
• Drum speed 20 m/min
• Manual rope winding
• Automatic brake with load stopping
• Quick release transmission system
• Helical gear reducer
• Made in Italy

Standard Equipment

• VF1555 Ultralight Manual Winch
• Ultra-resistant Dy-Forest Textile Rope 5 mm x 80 m and hook with safety latch - 310245

Optional Equipment

The use of accessories such as the pulley to redirect the rope, the choker sling to protect trees, and certified ropes and chains, ensures greater safety for people and the environment.

All Made in Italy, Original and Certified Docma

They can be purchased in the related products.

• Ring Sling

• Eyelet Sling

• Ratchet Sling

• Choker Rope

• Logging Chain

• Safety Hook

• Swivel Hook with Safety Latch

• Shackle

• Aluminum Pulley

• DY-FOREST Textile Rope 5 mm x 8 m and Hook with safety latch

• Winch Backpack

• Winch Trolley

• Base Sled

• Multifunction Sled

• Elastic Rope

• Strap with Spring Buckle
