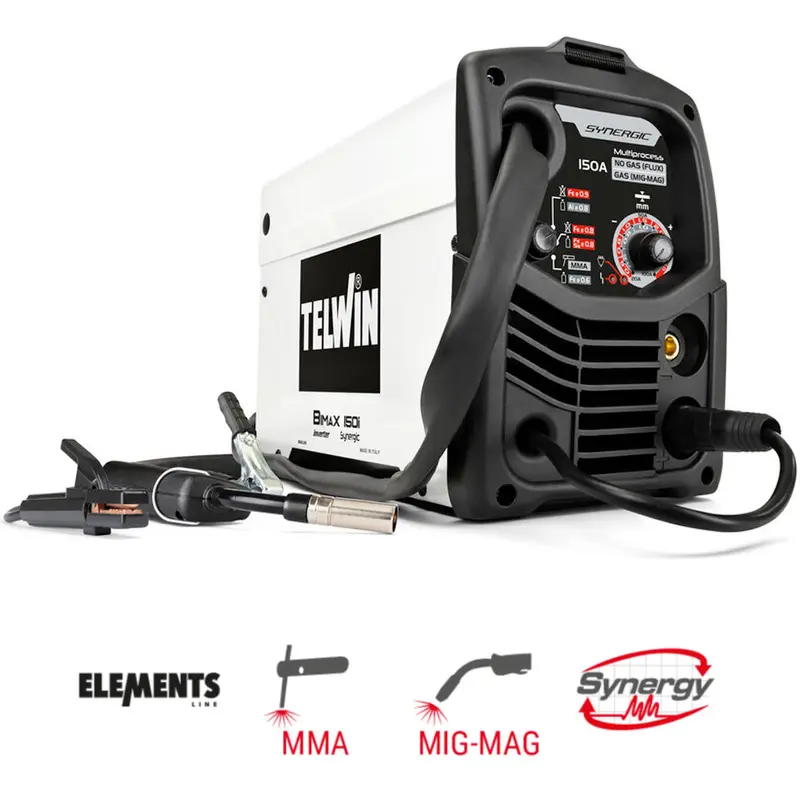

Telwin BIMAX 150i Synergic
Multiprocess inverter welding machine

Telwin BIMAX 150i Synergic - Multiprocess MIG-MAG/ FLUX/ MMA inverter welding machine

The Telwin BIMAX 150i Synergic is a multi-process wire inverter welder that offers the versatility needed to perform MIG-MAG/FLUX/MMA welding with precision and ease. Ideal for professionals and hobbyists thanks to its extreme ease of use also given by the presence of the synergic regulation of the parameters with 2 settings.
Complete with MIG-MAG torch, electrode holder, cable and earth clamp, this Telwin 816169 welding machine is compatible with Ø 100 mm coils and has external polarity change (MIG-MAG/FLUX)

Telwin BIMAX 150i Synergic has thermostatic, overvoltage, undervoltage, overcurrent protection and is compatible with motor generators (230V +/- 15%).

TYPES OF WELDING POSSIBLE with Telwin BIMAX 150i Synergic

• FLUX (Cored Wire Welding): is a process in which the heat required to perform the welding is provided by an electric arc maintained between the piece to be welded and the electrode wire. The welding area is constantly fed, thanks to a special torch, with the filler material.
  A characteristic feature is the absence of the gas cylinder in the welding circuit together with the use of animated wire electrodes.
• MIG: in MIG welding the electrode is made of a metal wire which is also used as a filler material and the unwinding of the spool occurs semi-automatically.
• MAG: also semi-automatic, the gas used is carbon dioxide and it is mainly used for welding common steels.
  MIG welding guarantees a higher level of precision, more refined results and is preferred for large thicknesses while MAG is more economical and also allows welding copper, aluminium and magnesium.
• MMA: also called coated electrode welding, it is certainly the most widespread welding method in non-professional environments or in processes that do not require particular qualitative and productive performance. This type of welding machines are simpler to use even if they give less precise results from an aesthetic point of view compared to other types of welding.

FUNCTIONAL Specifications

The Telwin BIMAX 150i Synergic wire welder allows you to start welding immediately thanks to the simple and fast synergic adjustment of the parameters: intuitive panel with 2 settings (program for different wire diameters and materials, process and thickness).
The consumption of this welder is extremely low thanks to its inverter technology .
Additionally, this welder is capable of performing MMA welding using rutile electrodes with a diameter of up to 2.5 mm .

Characteristics

• Multi-process inverter welding machine MIG-MAG/ FLUX/ MMA wire, 150A
• Complete with MIG-MAG torch, electrode holder, cable and earth clamp
• SYNERGIC regulation of parameters
• External polarity change (MIG-MAG/ FLUX)
• Use with Ø 100 coils
• Thermostatic, overvoltage, undervoltage, overcurrent protection
• Compatible for use with the motor generator (230V +/- 15%)
• MMA welding: rutile electrodes up to 2.5mm

Standard Equipment

• Cable 16 mmq 1.8 m Atlas 25 plug - code 124508
• Dallas 300 electrode holder 300A
• TW 160 MIG torch 2m - cod. 742989
• Colorado 150B 150A Ground Clamp
