Helvi Galileo 160
6.5 kVA Inverter Welder
Generator Only

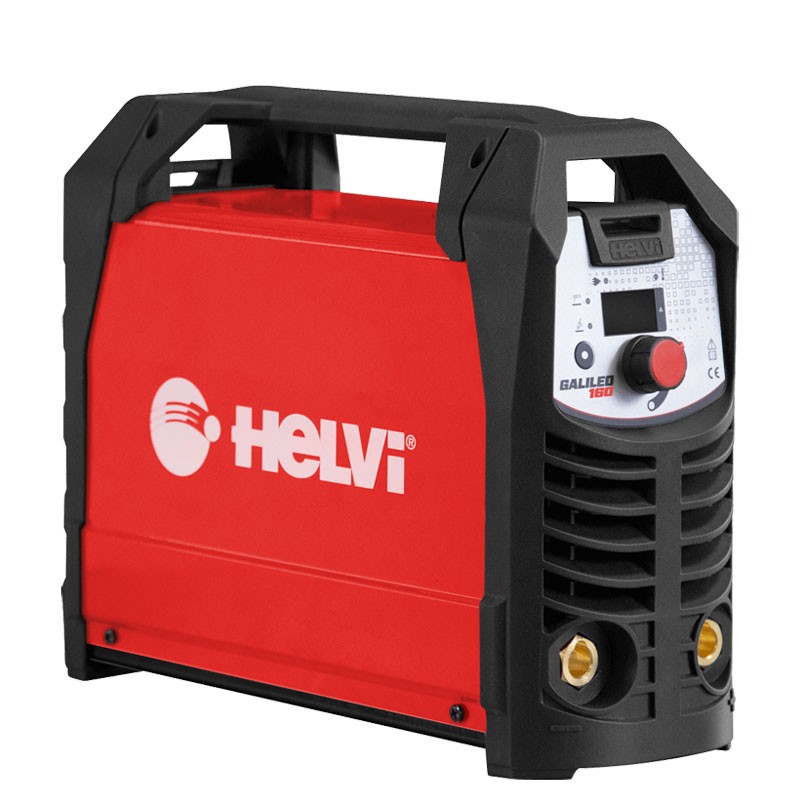

Helvi Galileo 160 - Professional MMA Inverter Welder

The Helvi Galileo 160 inverter welder, code 99806029 , is a professional machine designed for MMA and TIG Lift welding, ideal for maintenance work, light carpentry and advanced uses. It operates on a 230V 50/60Hz power supply and delivers a power of 6.5 KVA at 60%, ensuring high operating efficiency. The current regulation varies from 5 to 160 A , allowing the use of 6013 and 7018 electrodes with diameters from 1.6 to 4.0 mm . The duty cycle is particularly high-performance: 160A at 60% and 130A at 100%, ideal for continuous work.

Functional specifications

Complete and professional MMA/TIG welder

Helvi Galileo 160 cod. 99806029 is an inverter welder designed to offer high performance in a compact and lightweight format. This Helvi welder is ideal for MMA and TIG Lift welding , guaranteeing great precision, arc stability and reliability even under prolonged use. The kit includes a sturdy and practical shockproof case, perfect for transporting the welder and its accessories in complete safety.

High performance 5-160 A

The Helvi Galileo 160 operates on a single-phase 230V 50/60Hz power supply and delivers 6.5 kVA at 60% , ensuring superior performance even under load. Thanks to its current adjustment from 5 to 160A, the welder offers great flexibility, allowing for delicate work at low amperages or more demanding tasks with larger diameter electrodes. The 70V open-circuit voltage facilitates arc striking and ensures arc stability even with more difficult electrodes.

Compatibility with 6013-7018 electrodes

The Helvi Galileo 160 welding machine's duty cycle is one of its strong points: 160A at 60% and 130A at 100% , ideal values for prolonged welding sessions without interruptions. The machine supports electrodes with diameters from 1.6 to 4.0 mm , including the popular 6013 and 7018 structural electrodes, widely used in carpentry and construction. This makes the welder suitable for a wide range of applications.

Convenient carrying handle

Helvi Galileo 160 welder kit bag cod.99806029 has a practical handle for easy transport.

Type of welding possible with Helvi Galileo 160

• MMA : also known as coated electrode welding, it is certainly the most common welding method in non-professional environments or in processes that do not require particular quality and productivity performance. This type of welding machine is easier to use, although it produces less precise results from an aesthetic standpoint than other welding methods.
• TIG : requires low voltage and therefore consumes little power, making it more economical and aesthetically pleasing. TIG welding has a coin-shaped shape due to the circular shapes it produces. It is more resistant, therefore it is usually used for visible parts and for processes requiring precision.

Compatible Accessories - NOT INCLUDED, only in the BAG KIT code 99806031

• Earth cable · 25 mm2 · 2.0 m · conn. 50 mm² - code 43210170
• Welding cable · 25 mm² · 3.0 m · connector 50 mm² - code 43205097
• Helvi M bag · 450x220x270 mm - cod. 21905178K

Optional

Available upon request:

• 99900099 - MMA welding kit • 25 mm² · 3 + 2 m • conn. 50 mm²

Characteristics

• MMA
• TIG
• Professional use
• Made in Italy
• Compact
• Easy to use, intuitive
• Single-phase
• Advanced automatic systems

• Ecodesign
• Display
• Forced Ventilation Cooling
• Suitable for use with a power generator
• Voltage Compensation
• 50 mm² connector
• Heavy Duty
• VRD
• Electrode Welding
• Optimal Current Management
• Hot Start Management
• Avoid Electrode Sticking
• Tig
• Lift Arc
